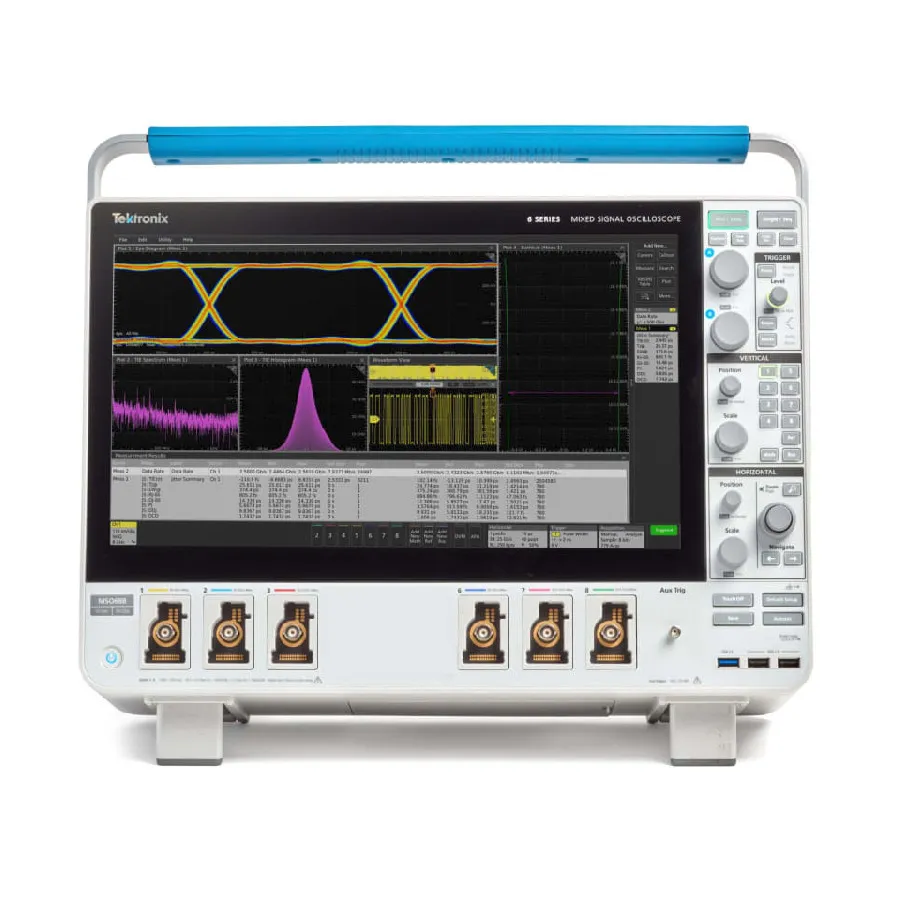

Tektronix MSO66B/6-BW-2500 Mixed Signal Oscilloscope

Overview

The Tektronix MSO66B/6-BW-2500 is a mixed signal oscilloscope delivering 2.5 GHz bandwidth with low-noise signal acquisition and flexible multi-channel analysis capabilities. The 6-channel FlexChannel architecture enables each input to function as an analog channel, eight digital logic inputs, or simultaneous analog and spectrum views with independent acquisition controls, making it ideal for embedded systems design and complex signal debugging.

Key Features

• 6 FlexChannel analog inputs with 12-bit ADC (up to 16-bits in High Res mode)
• Up to 48 optional digital channels with TLP058 logic probe support
• 2.5 GHz analog bandwidth with up to 50 GS/s real-time sample rate
• 15.6-inch high-definition (1,920 x 1,080) capacitive touchscreen display
• 62.5 Mpoints standard record length (up to 1 Gpoints optional)
• 36 automated measurements and comprehensive analysis tools
• Advanced triggers: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger, Video
• Spectrum View for frequency-domain analysis with independent controls
• FastFrame segmented memory with >5,000,000 waveforms per second capture rate
• e*Scope remote viewing and control via standard web browser
• Connectivity: USB Host (7 ports), USB 3.0 Device, LAN, Display Port, DVI-I, VGA

Applications

• Embedded systems development and debugging
• Three-phase power electronics characterization
• Automotive electronics testing and troubleshooting
• Power supply design and verification
• Power Integrity measurement and analysis
• Multi-channel signal observation for complex system issues

Included Accessories

• One TPP1000 1 GHz probe per FlexChannel
• Front cover with integrated accessory pouch
• Power cord
• Calibration certificate
• One-year warranty for instrument and included probes
