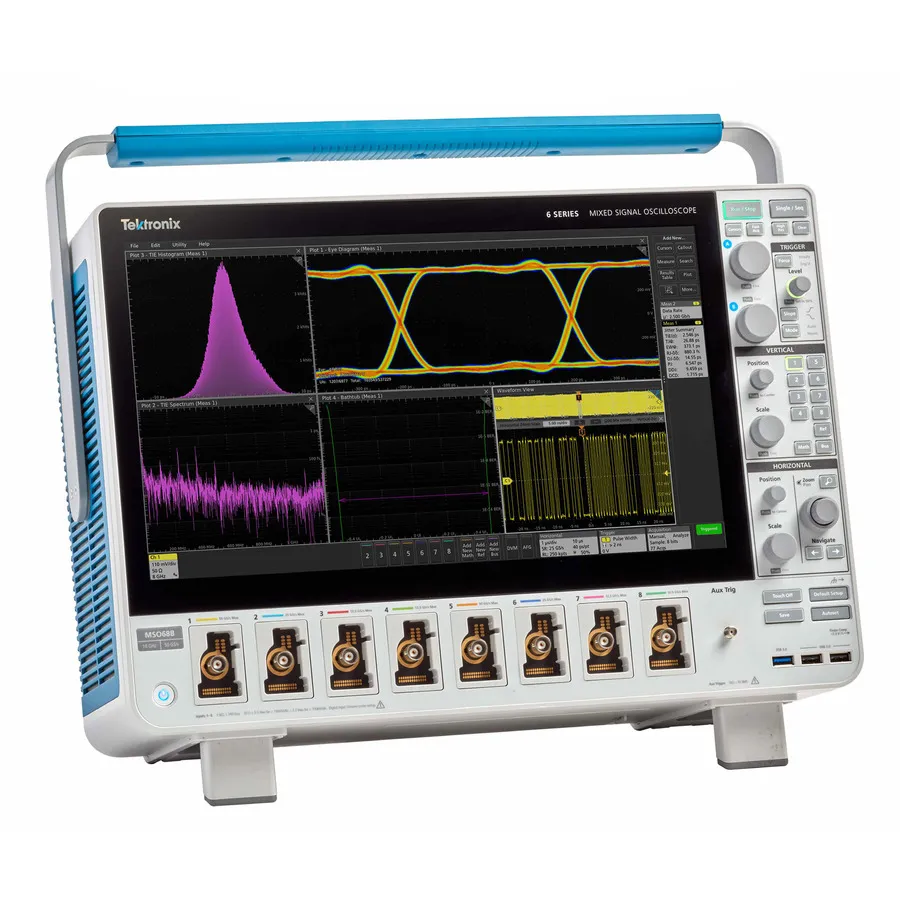

Tektronix MSO66B/6-BW-10000 Mixed Signal Oscilloscope

Overview

The Tektronix MSO66B/6-BW-10000 is a high-bandwidth mixed signal oscilloscope offering 10 GHz analog bandwidth with low-noise signal fidelity for analyzing and debugging today's embedded systems with GHz clock and bus speeds. The 6-channel FlexChannel architecture enables each input to function as an analog channel, eight digital logic inputs, or simultaneous analog and spectrum views with independent acquisition controls for each domain.

Key Features

• 6 FlexChannel analog inputs with 12-bit ADC (up to 16-bits in High Res mode)
• Up to 48 optional digital channels with TLP058 logic probe support
• 10 GHz analog bandwidth with up to 50 GS/s real-time sample rate
• 15.6-inch high-definition (1,920 x 1,080) capacitive touchscreen display
• 62.5 Mpoints standard record length (up to 1 Gpoints optional)
• 36 automated measurements and comprehensive analysis tools
• Advanced triggers: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger, Video
• Spectrum View for frequency-domain analysis with independent controls
• FastFrame segmented memory with >5,000,000 waveforms per second capture rate
• e*Scope remote viewing and control via standard web browser
• Connectivity: USB Host (7 ports), USB 3.0 Device, LAN, Display Port, DVI-I, VGA

Applications

• High-speed embedded systems development and debugging
• Three-phase power electronics characterization
• Automotive electronics and high-frequency signal testing
• Power supply design and verification
• Power Integrity and signal integrity analysis
• Complex multi-channel system troubleshooting

Included Accessories

• One TPP1000 1 GHz probe per FlexChannel
• Front cover with integrated accessory pouch
• Power cord
• Calibration certificate
• One-year warranty for instrument and included probes
