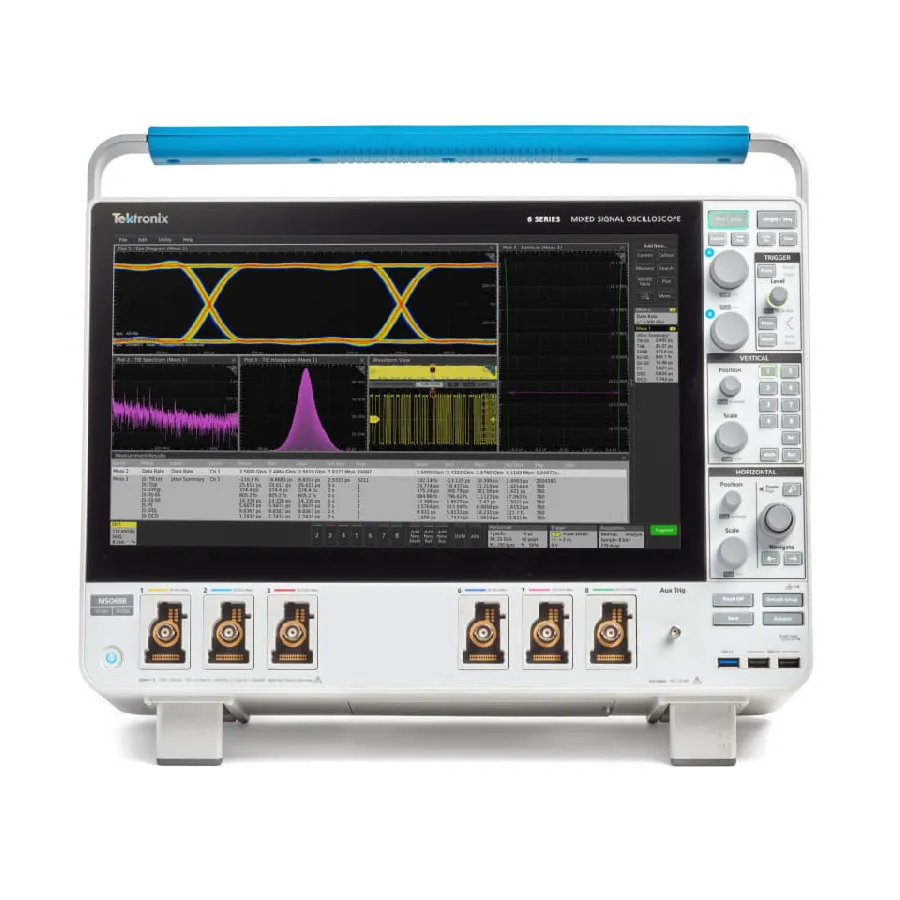

Tektronix MSO66B/6-BW-1000 Mixed Signal Oscilloscope
Request a quote
Tektronix MSO66B mixed signal oscilloscope with 6 analog and up to 48 digital channels, 1 GHz bandwidth, 12.5 GS/s sample rate, advanced triggering.
Product details
| Model | MSO66B/6-BW-1000 |
| Manufacturer | Tektronix |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Tektronix MSO66B/6-BW-1000 is a versatile mixed signal oscilloscope delivering 1 GHz bandwidth with low-noise signal acquisition and flexible multi-channel analysis for embedded systems debugging and general-purpose signal measurement. The 6-channel FlexChannel architecture enables each input to function as an analog channel, eight digital logic inputs, or simultaneous analog and spectrum views with independent acquisition controls.
Key Features
- 6 FlexChannel analog inputs with 12-bit ADC (up to 16-bits in High Res mode)
- Up to 48 optional digital channels with TLP058 logic probe support
- 1 GHz analog bandwidth with up to 50 GS/s real-time sample rate
- 15.6-inch high-definition (1,920 x 1,080) capacitive touchscreen display
- 62.5 Mpoints standard record length (up to 1 Gpoints optional)
- 36 automated measurements and comprehensive analysis tools
- Advanced triggers: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger, Video
- Spectrum View for frequency-domain analysis with independent controls
- FastFrame segmented memory with >5,000,000 waveforms per second capture rate
- e*Scope remote viewing and control via standard web browser
- Connectivity: USB Host (7 ports), USB 3.0 Device, LAN, Display Port, DVI-I, VGA
Applications
- Embedded systems development and debugging
- Three-phase power electronics characterization
- Automotive electronics testing and troubleshooting
- Power supply design and verification
- Power Integrity measurement and analysis
- Educational and general-purpose signal analysis
Included Accessories
- One TPP1000 1 GHz probe per FlexChannel
- Front cover with integrated accessory pouch
- Power cord
- Calibration certificate
- One-year warranty for instrument and included probes
Specifications
| Bandwidth | 1 GHz |
| Analog Channels | 6 |
| Digital Channels | 48 |
| Sampling Rate | 12.5 GS/s |
| Memory | 62.5 Mpts |
| Type | MSO |
| Vertical Resolution | 12 bit |
| Display Type | 15.6 TFT Capacitive Color Touch |
| Series | 6 Series B MSO |
| Depth | 11.7" |
| Display | LCD TFT |
| Interface | LAN / Ethernet, LXI, USB Host, USB, VGA or SVGA Out |
| Operating Temperature Range | 32-122°F |
| Risetime | 0.4 ns |
| Warranty | 1 Year |
