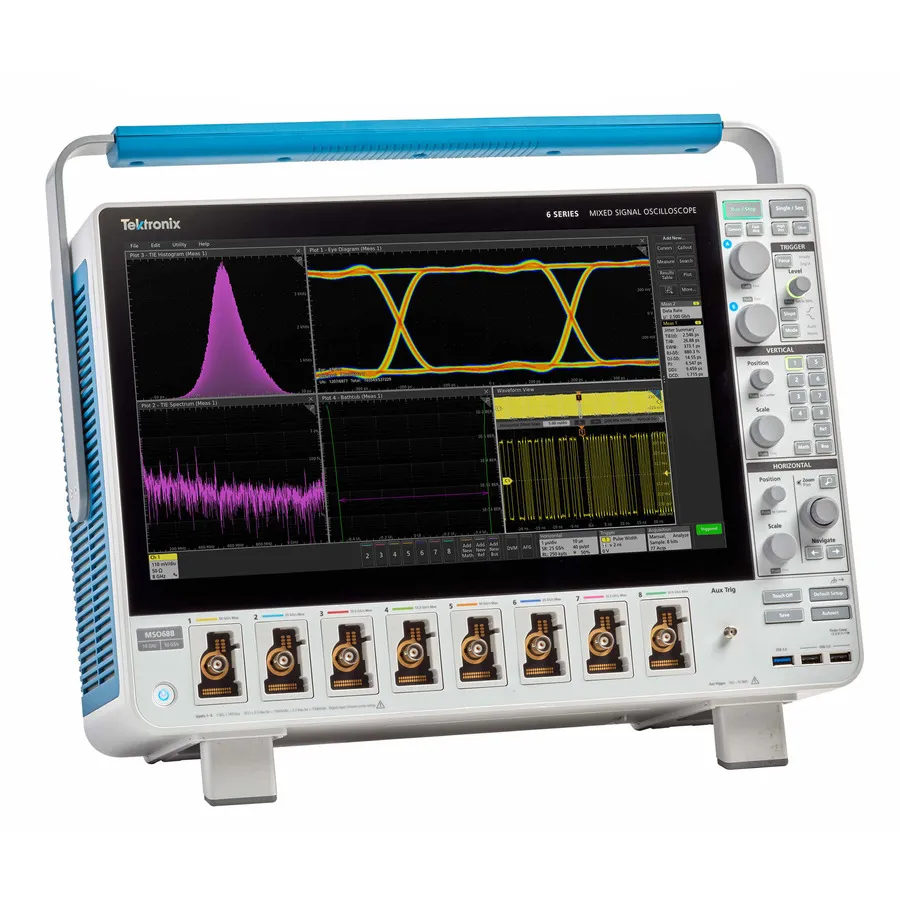

Tektronix MSO66B-TAA 6-BW-8000 Mixed Signal Oscilloscope

Overview

The Tektronix MSO66B-TAA 6-BW-8000 is a TAA-compliant mixed signal oscilloscope designed for government and regulated buyers requiring Trade Agreements Act sourcing compliance. Made in the USA, this instrument delivers the high bandwidth, low-noise signal fidelity, and flexible multi-channel analysis needed for debugging modern high-speed embedded systems and designs. The 6-channel FlexChannel architecture allows each input to function as an analog channel, eight digital logic inputs, or simultaneous analog and spectrum views.

Key Features

• 6 FlexChannel analog inputs with 12-bit ADC (up to 16-bits in High Res mode)
• Up to 48 optional digital channels with TLP058 logic probe support
• 8 GHz analog bandwidth with up to 50 GS/s real-time sample rate
• 15.6-inch high-definition (1,920 x 1,080) capacitive touchscreen display
• 62.5 Mpoints standard record length (up to 1 Gpoints optional)
• 36 automated measurements and comprehensive analysis tools
• Advanced triggers: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger, Video
• Spectrum View for frequency-domain analysis with independent controls
• FastFrame segmented memory with >5,000,000 waveforms per second capture rate
• e*Scope remote viewing and control via standard web browser
• Connectivity: USB Host (7 ports), USB 3.0 Device, LAN, Display Port, DVI-I, VGA

Applications

• Embedded systems development and GHz clock speed analysis
• Three-phase power electronics characterization
• Automotive electronics testing and troubleshooting
• Power supply design and verification
• Power Integrity measurement and analysis
• Complex multi-channel system debugging

Included Accessories

• One TPP1000 1 GHz probe per FlexChannel
• Front cover with integrated accessory pouch
• Power cord
• Calibration certificate
• One-year warranty for instrument and included probes
