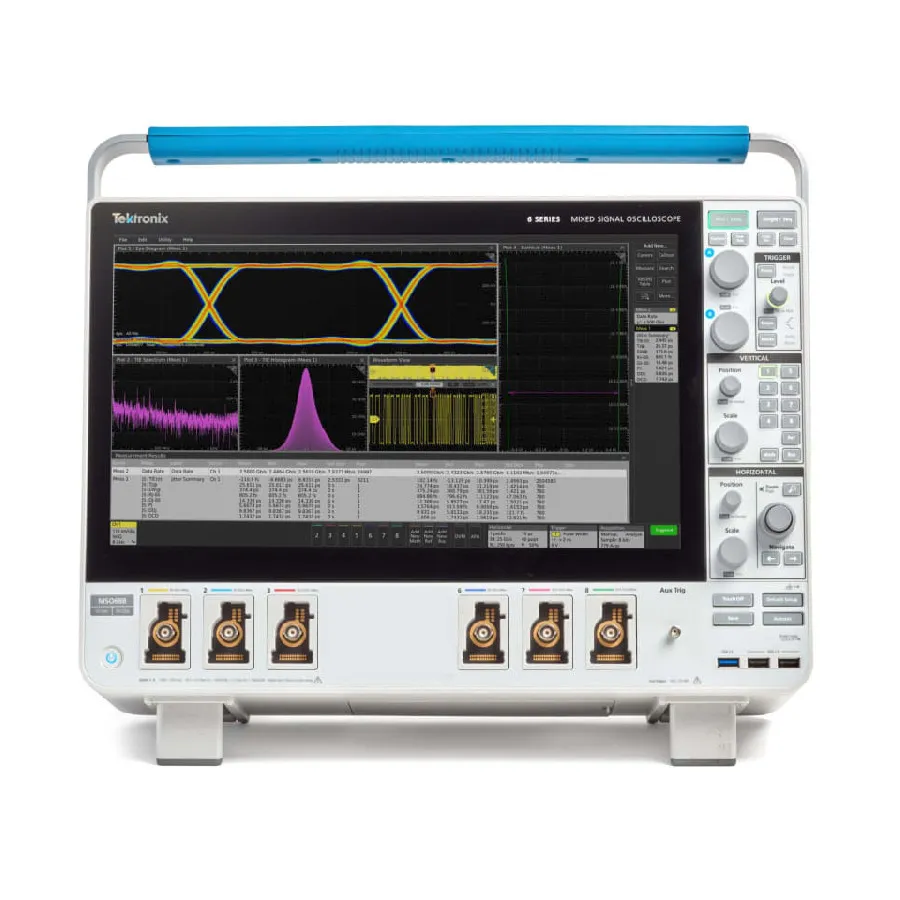

Tektronix MSO66B-TAA 6-BW-2500 is a 6-channel mixed signal oscilloscope with 2.5GHz bandwidth, 12.5GS/s sampling, and optional 48 digital channels for embedded systems.
Product details
| Model | MSO66B-TAA 6-BW-2500 |
| Manufacturer | Tektronix |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Tektronix MSO66B-TAA 6-BW-2500 is a TAA-compliant 6-channel mixed signal oscilloscope designed for government and regulated buyers requiring Trade Agreements Act sourcing compliance. It delivers high bandwidth, low-noise signal fidelity, and flexible multi-channel analysis for modern embedded system design and debugging.
Key Features
- 6 FlexChannel analog inputs with 1 GHz probes included
- Up to 48 optional digital logic inputs via TLP058 logic probe
- 2.5 GHz analog bandwidth with 12-bit ADC (up to 16-bit in High Res mode)
- Real-time sample rate: 50 GS/s (2 channels), 25 GS/s (4 channels), 12.5 GS/s (>4 channels)
- 62.5 Mpoints standard record length, expandable to 1 Gpoint
- 15.6-inch high-definition touchscreen display (1,920 x 1,080) with capacitive touch
- 36 automated measurements and comprehensive trigger types including Visual Trigger
- Spectrum View frequency-domain analysis and FFT capabilities
- FastFrame segmented memory with >5,000,000 waveforms/second trigger rate
- Multiple connectivity options: USB, LAN, DisplayPort, DVI-I, VGA
- Remote control via e*Scope web browser interface
- Made in the USA
Applications
- Embedded systems design and debugging
- Three-phase power electronics analysis
- Automotive electronics testing
- Power supply design and characterization
- Power Integrity verification
- Digital signal analysis
Included Accessories
- Six TPP1000 1 GHz passive probes (one per FlexChannel)
- Front cover with integrated accessory pouch
- Power cord
- Calibration certificate
- One-year warranty for instrument and included probes
Specifications
| Bandwidth | 2.5 GHz |
| Analog Channels | 6 |
| Digital Channels | 48 |
| Sampling Rate | 12.5 GS/s |
| Memory | 62.5 Mpts |
| Type | MSO |
| Vertical Resolution | 12 bit |
| Display Type | 15.6 TFT Capacitive Color Touch |
| Series | 6 Series B MSO |
| Depth | 11.7" |
| Display | LCD TFT |
| Interface | LAN / Ethernet, LXI, USB Host, USB, VGA or SVGA Out |
| Operating Temperature Range | 32-122°F |
| Risetime | 0.4 ns |
| Warranty | 1 Year |
