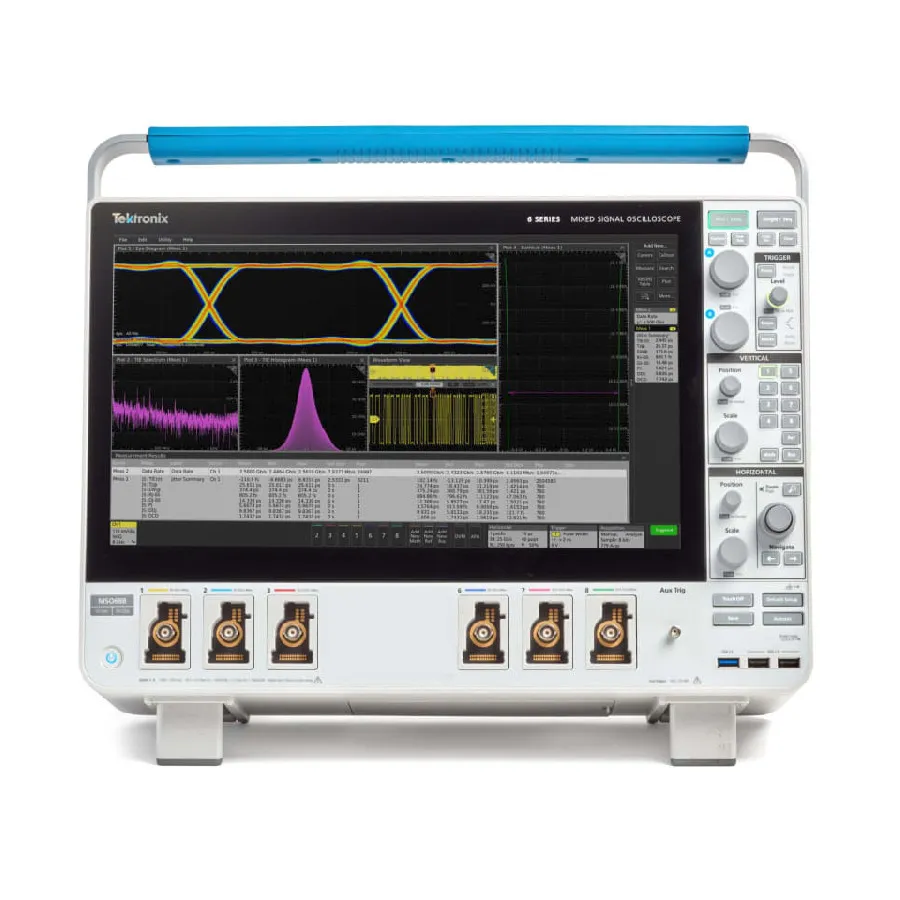

Tektronix MSO66B-TAA 6-BW-1000 Mixed Signal Oscilloscope

Overview

The Tektronix MSO66B-TAA is a TAA-compliant mixed signal oscilloscope designed for government and regulated buyers requiring Trade Agreements Act sourcing compliance. Manufactured in the USA, it delivers high bandwidth, low-noise signal fidelity, and flexible multi-channel analysis for modern high-speed designs.

Key Features

• 6 FlexChannel analog inputs with simultaneous analog and digital analysis
• Up to 48 optional digital logic channels
• 1 GHz analog bandwidth with 12.5 GS/s sample rate
• 15.6-inch high-definition capacitive touchscreen with gesture controls
• 12-bit ADC with up to 16-bit resolution in High Res mode
• Up to 1 Gpoint record length for capturing thousands of events
• Advanced trigger types including Visual Trigger, Edge, Pulse Width, and Sequence
• 36 automated measurements and comprehensive waveform analysis
• Spectrum View for independent frequency-domain analysis
• FastFrame segmented memory exceeding 5 million waveforms per second
• Connectivity: USB 3.0, Ethernet, DisplayPort, DVI-I, and VGA
• e*Scope remote control and monitoring via web browser
• Optional Arbitrary/Function Generator and Digital Voltmeter

Applications

• Embedded systems design and debugging
• Power electronics and three-phase power analysis
• Automotive electronics development
• Power supply design and Power Integrity verification
• High-speed digital signal and protocol debugging
• Government and defense applications requiring TAA compliance

Included Accessories

• One TPP1000 1 GHz probe per FlexChannel
• Front cover with integrated accessory pouch
• Power cord
• Calibration certificate
• One-year warranty for instrument and included probes
