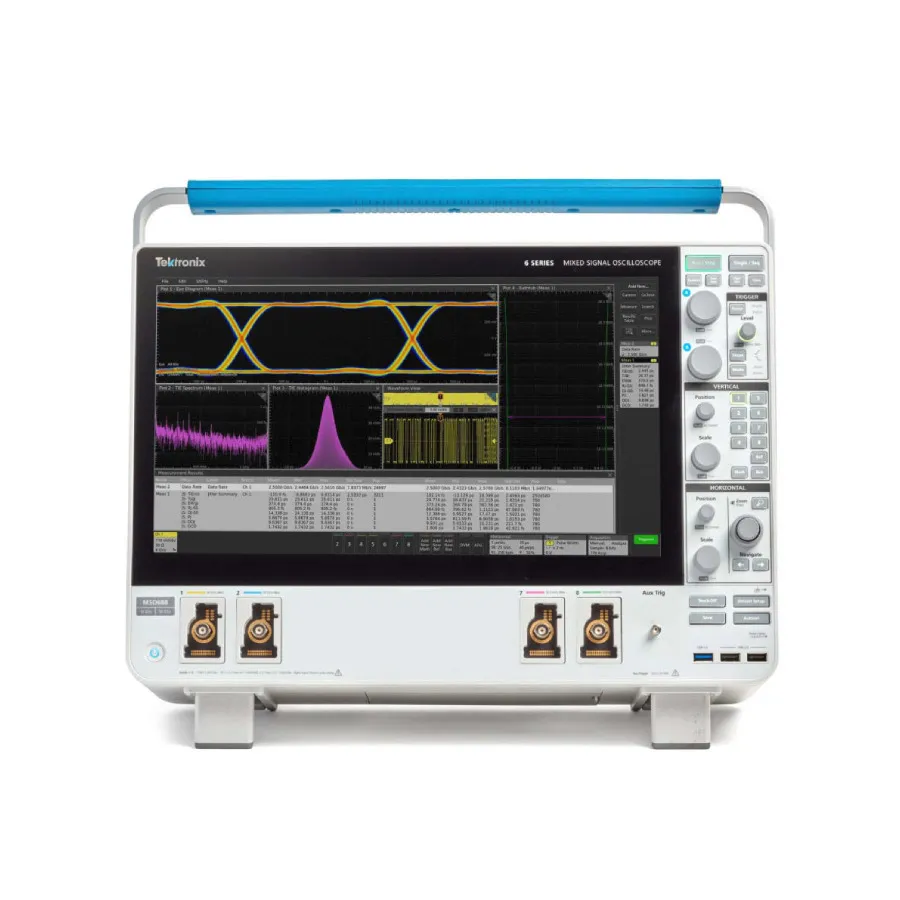

Tektronix MSO64B/6-BW-8000 Mixed Signal Oscilloscope

Overview

The Tektronix MSO64B/6-BW-8000 is a professional mixed signal oscilloscope designed for analyzing and debugging embedded systems with GHz clock and bus speeds. With 8 GHz analog bandwidth and a large 15.6-inch high-definition display, it provides superior signal fidelity and visibility for complex signal analysis and troubleshooting tasks.

Key Features

• 8 GHz analog bandwidth with 4 FlexChannels
• Real-time sampling: 50 GS/s (2 channels), 25 GS/s (4 channels)
• 12-bit ADC resolution, up to 16-bit in High Res mode
• 62.5 Mpoints standard record length, expandable to 1 Gpoint
• 15.6-inch capacitive touchscreen with pinch/zoom/swipe controls
• FlexChannel technology: each channel supports one analog signal or eight digital logic inputs
• Spectrum View for simultaneous time and frequency domain analysis
• 36 automated measurements and comprehensive analysis tools
• Multiple trigger types including Edge, Pulse, Logic, Setup & Hold, and Visual Trigger
• FastFrame segmented memory with >5,000,000 waveforms per second capture rate

Applications

• Embedded system debugging and signal analysis
• Jitter analysis and clock quality assessment
• Vector signal and RF analysis
• Serial standards compliance testing (Ethernet, MIPI, Automotive Ethernet)
• Electromagnetic interference (EMI) troubleshooting
• 3-phase power electronics and motor drive analysis

Included Accessories

• TPP1000 1 GHz passive probe for each FlexChannel
• Front cover with accessory pouch
• Mouse
• Power cord
• Certificate of Traceability
