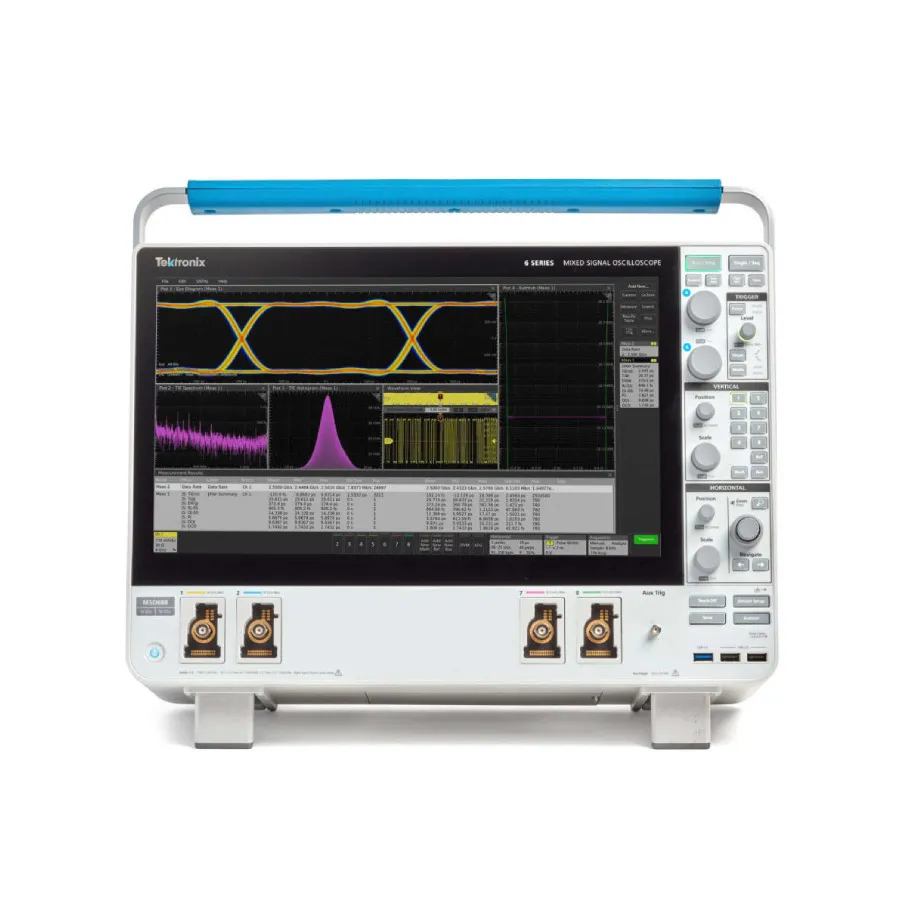

Tektronix MSO64B/6-BW-1000 Mixed Signal Oscilloscope

Overview

The Tektronix MSO64B/6-BW-1000 is a mixed signal oscilloscope with 1 GHz analog bandwidth, providing excellent signal fidelity with 12-bit ADC and low-noise acquisition. It delivers the performance needed for analyzing and debugging embedded systems and lower-speed digital designs. The 4 FlexChannel inputs and large 15.6-inch capacitive touchscreen provide comprehensive signal visualization with intuitive touch-based control.

Key Features

• 1 GHz analog bandwidth with 4 FlexChannel inputs
• Real-time sampling: 50 GS/s (2 channels), 25 GS/s (4 channels), 12.5 GS/s (>4 channels)
• 12-bit ADC with up to 16-bit vertical resolution in High Res mode
• 62.5 Mpoints standard record length, expandable to 1 Gpoint
• Waveform capture rate exceeding 500,000 waveforms per second
• FlexChannel technology: one analog signal or eight digital logic inputs per channel
• 15.6-inch (396 mm) Full HD capacitive touchscreen with pinch/zoom/swipe/drag gestures
• Spectrum View for simultaneous frequency and time domain analysis
• 36 automated measurements and advanced trigger types including Visual Trigger and Sequence triggers
• Connectivity: USB 3.0 Host and Device, Gigabit Ethernet, DisplayPort, DVI, VGA, and e*Scope remote control
• Optional analysis: Jitter analysis, Eye Diagram, Mask/Limit Testing, protocol decoding, and compliance testing

Applications

• Embedded system debugging and characterization
• Clock and timing analysis
• Serial standards compliance testing
• Power supply design and verification
• Power Integrity measurement
• Three-phase inverter and motor drive analysis
• Electromagnetic interference (EMI) troubleshooting

Included Accessories

• TPP1000 1 GHz low-capacitance passive probe for each channel
• Front cover with integrated accessory pouch
• USB mouse
• Power cord
• Installation manual and comprehensive online help
• Certificate of Traceability
• 1-year warranty on instrument and included probes
