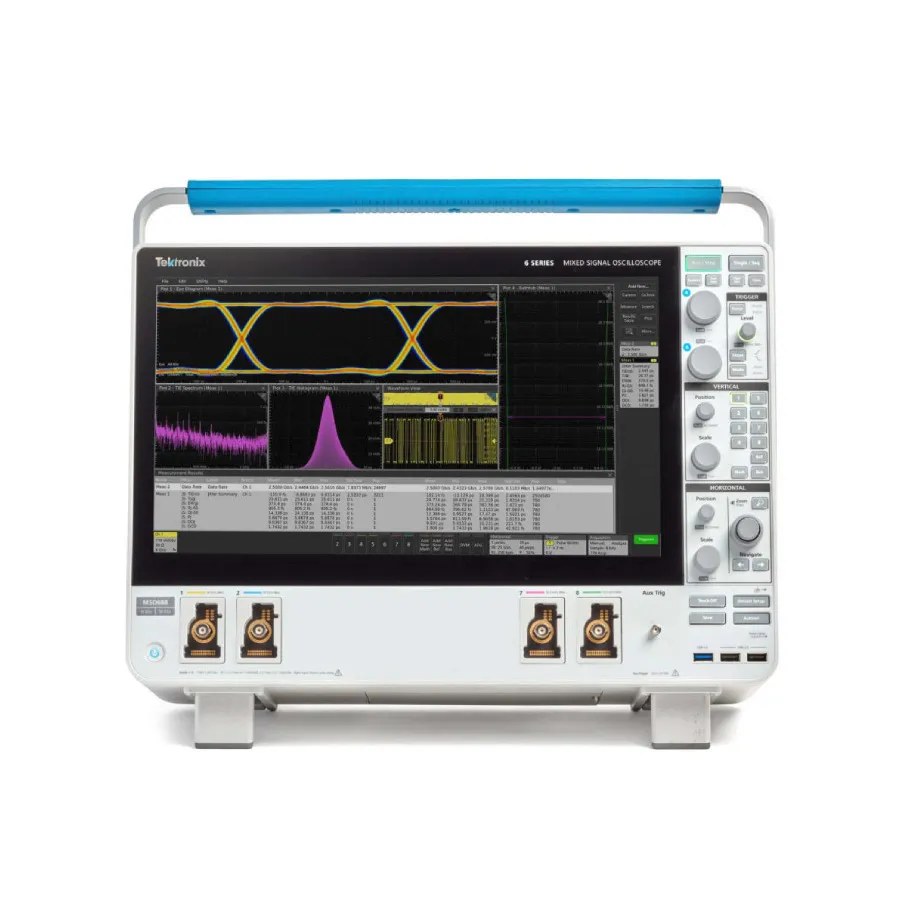

Tektronix MSO64B-TAA 6-BW-8000 Mixed Signal Oscilloscope

Overview

The Tektronix MSO64B-TAA 6-BW-8000 is a Trade Agreements Act (TAA) compliant mixed signal oscilloscope built in the USA for government and regulated procurement. It provides 8 GHz analog bandwidth, superior signal fidelity with 12-bit ADC and low-noise acquisition, and flexible multi-channel analysis for high-speed digital designs. The 4 FlexChannel inputs and 15.6-inch Full HD capacitive touchscreen enable intuitive analysis of complex embedded systems.

Key Features

• 8 GHz analog bandwidth with 4 FlexChannel inputs
• Real-time sampling: 50 GS/s (2 channels), 25 GS/s (4 channels), 12.5 GS/s (>4 channels)
• 12-bit ADC with up to 16-bit vertical resolution in High Res mode
• 62.5 Mpoints standard record length, expandable to 1 Gpoint
• Waveform capture rate exceeding 500,000 waveforms per second
• FlexChannel technology: one analog signal or eight digital logic inputs per channel with optional TLP058 logic probe
• 15.6-inch (396 mm) Full HD capacitive touchscreen with pinch/zoom/swipe/drag gestures
• Stacked Display Mode for clear visualization of multiple waveforms
• Spectrum View for simultaneous frequency and time domain analysis
• 36 automated measurements and advanced trigger types including Visual Trigger
• Connectivity: USB 3.0 Host and Device, Gigabit Ethernet, DisplayPort, DVI-I, VGA, and e*Scope remote control
• Optional removable SSD with Windows 10 operating system
• Optional analysis: Jitter, Eye Diagram, Mask/Limit Testing, protocol decoding, and serial compliance testing

Applications

• Embedded system debugging with GHz clock speeds
• Clock jitter analysis and timing characterization
• High-speed serial standards compliance testing
• Electromagnetic interference (EMI) troubleshooting
• 3-phase power electronics and motor drive analysis
• Power supply design and integrity verification
• RF signal analysis and vector signal analysis

Included Accessories

• TPP1000 1 GHz probe for each FlexChannel
• Front cover with integrated accessory pouch
• Power cord
• Calibration certificate
• 1-year warranty for instrument and included probes
