Tektronix MSO64B-TAA 6-BW-6000 Mixed Signal Oscilloscope
Request a quote

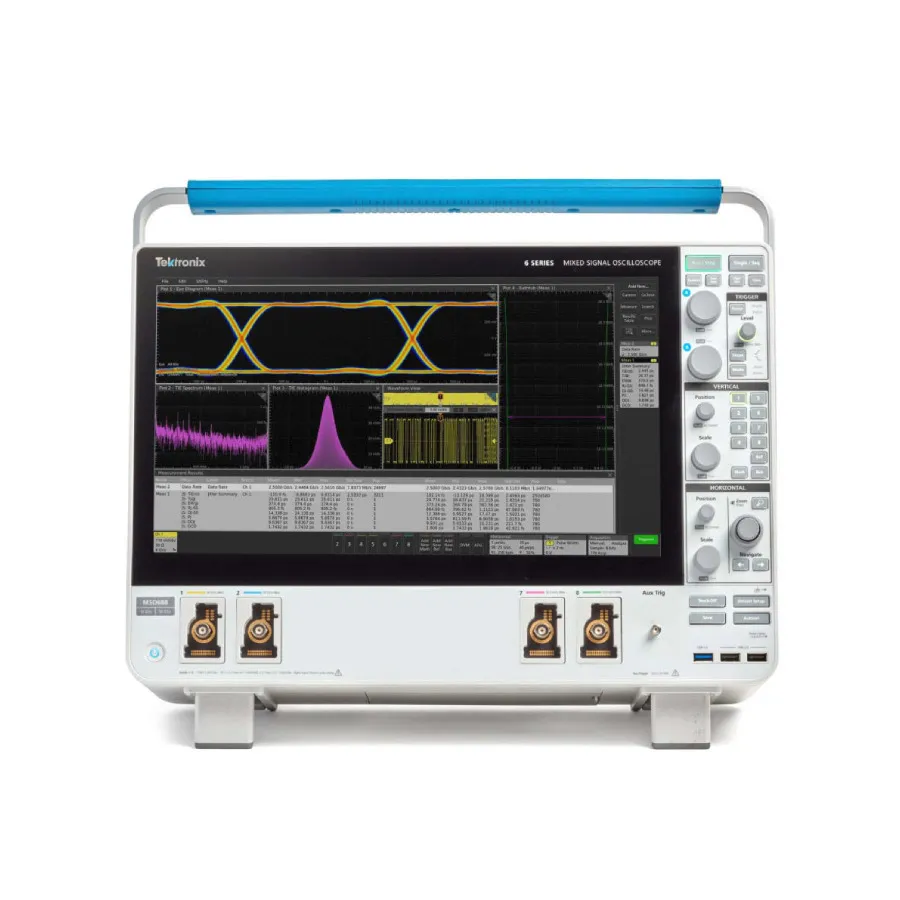

Tektronix MSO64B-TAA 6-BW-6000 is a TAA-compliant 6 GHz mixed signal oscilloscope with 4 FlexChannels, 50 GS/s peak sampling, and 15.6" touchscreen.
Product details
| Model | MSO64B-TAA 6-BW-6000 |
| Manufacturer | Tektronix |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Tektronix MSO64B-TAA 6-BW-6000 is a Trade Agreements Act (TAA) compliant mixed signal oscilloscope built in the USA for government and regulated procurement. It delivers 6 GHz analog bandwidth, low-noise signal fidelity, and flexible multi-channel analysis for debugging modern embedded systems with GHz clock speeds. The 4 FlexChannel inputs and large 15.6-inch capacitive touchscreen provide comprehensive signal visualization and intuitive touch-based control.
Key Features
- 6 GHz analog bandwidth with 4 FlexChannel inputs
- Real-time sampling: 50 GS/s (2 channels), 25 GS/s (4 channels), 12.5 GS/s (>4 channels)
- 12-bit ADC with up to 16-bit vertical resolution in High Res mode
- 62.5 Mpoints standard record length, expandable to 1 Gpoint
- Waveform capture rate exceeding 500,000 waveforms per second
- FlexChannel technology: one analog signal or eight digital logic inputs per channel
- 15.6-inch (396 mm) Full HD capacitive touchscreen with pinch/zoom/swipe/drag gestures
- Spectrum View for simultaneous frequency and time domain analysis
- 36 automated measurements and advanced trigger types including Visual Trigger and Sequence triggers
- Connectivity: USB 3.0 Host and Device, Gigabit Ethernet, DisplayPort, DVI, VGA, and e*Scope remote control
- Optional analysis: Jitter decomposition, Eye Diagram, Mask/Limit Testing, protocol decoding, and serial compliance testing
Applications
- Embedded system debugging with GHz clock and bus speeds
- Clock jitter analysis and timing characterization
- Electromagnetic interference (EMI) troubleshooting and source identification
- Serial standards compliance testing (Ethernet, MIPI, Automotive Ethernet)
- 3-phase inverter, motor, and drive analysis
- Power supply design and Power Integrity verification
- RF signal analysis with SignalVu-PC vector signal analysis software
Included Accessories
- TPP1000 6 GHz low-capacitance passive probe for each channel
- Front cover with integrated accessory pouch
- USB mouse
- Power cord
- Installation manual and comprehensive online help
- Certificate of Traceability
- 1-year warranty on instrument and included probes
Specifications
| Bandwidth | 6 GHz |
| Analog Channels | 4 |
| Digital Channels | 32 |
| Sampling Rate | 25 GS/s |
| Memory | 62.5 Mpts |
| Type | MSO |
| Vertical Resolution | 12 bit |
| Display Type | 15.6 TFT Capacitive Color Touch |
| Series | 6 Series B MSO |
| Depth | 11.7" |
| Display | LCD TFT |
| Interface | LAN / Ethernet, LXI, USB Host, USB, VGA or SVGA Out |
| Operating Temperature Range | 32-122°F |
| Risetime | 0.067 ns |
| Warranty | 1 Year |
