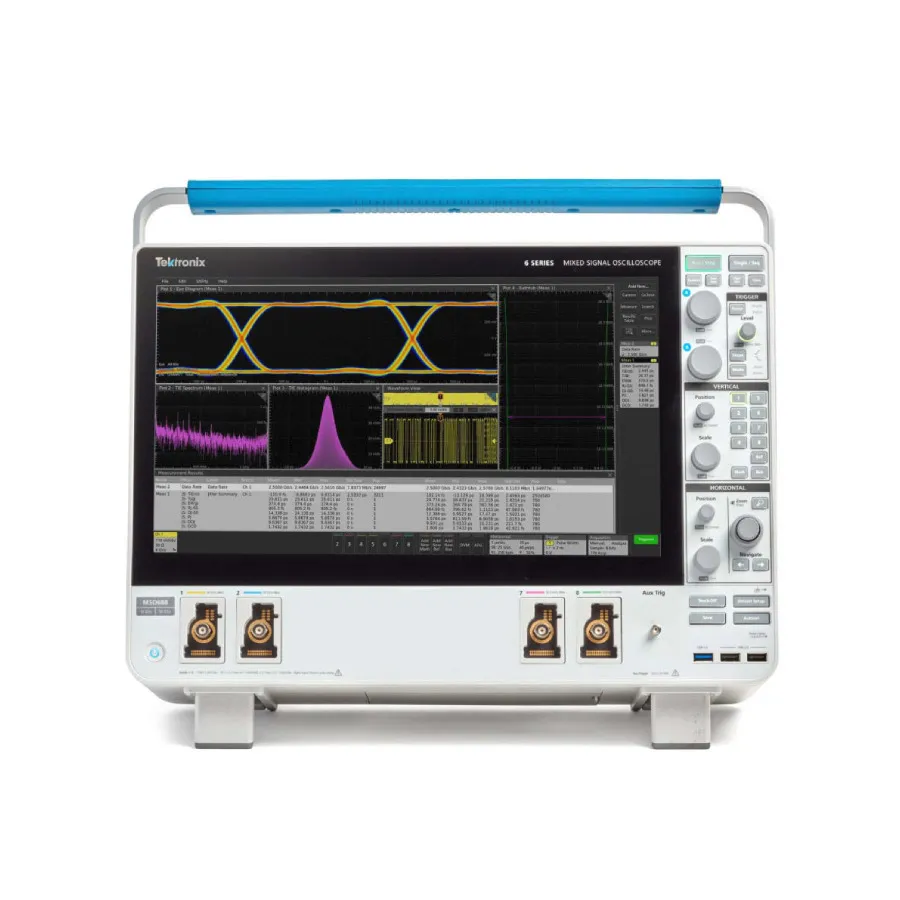

Tektronix MSO64B-TAA 6-BW-2500 Mixed Signal Oscilloscope

Overview

The Tektronix 6 Series B MSO is a TAA-compliant mixed signal oscilloscope designed for government and regulated buyers who require Trade Agreements Act compliance. It combines high bandwidth, low-noise signal fidelity, and flexible multi-channel analysis for modern high-speed designs.

Key Features

• 2.5 GHz analog bandwidth
• 4 FlexChannel inputs (each can be analog or 8 digital logic inputs with optional TLP058 probe)
• Real-time sampling: 50 GS/s (2 channels), 25 GS/s (4 channels)
• Record length: 62.5 Mpoints standard (expandable to 1 Gpoints)
• 12-bit ADC with up to 16-bit High Res mode
• 15.6-inch HD capacitive touchscreen (1920 × 1080)
• Waveform capture rate: >500,000 waveforms/s
• Advanced triggering: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Visual Trigger
• 36 automated measurements and Spectrum View for frequency-domain analysis
• FastFrame segmented memory (>5,000,000 waveforms/s)
• e*Scope remote viewing and control via web browser
• Connectivity: USB Host (7 ports), USB 3.0 Device, LAN, DisplayPort, DVI-I, VGA

Applications

• Jitter analysis and clock characterization
• Vector signal analysis with RF measurements and modulation analysis
• Serial standards compliance testing (Ethernet, Automotive Ethernet, MIPI D-PHY)
• Electromagnetic interference (EMI) troubleshooting
• 3-phase power analysis for inverters, motors, and drives
• High-speed embedded systems debugging

Included Accessories

• TPP1000 2.5 GHz passive probe for each FlexChannel
• Front cover with integrated accessory pouch
• Mouse
• Power cord
• Printed installation manual
• Certificate of traceability
• 1-year warranty on instrument and probes
