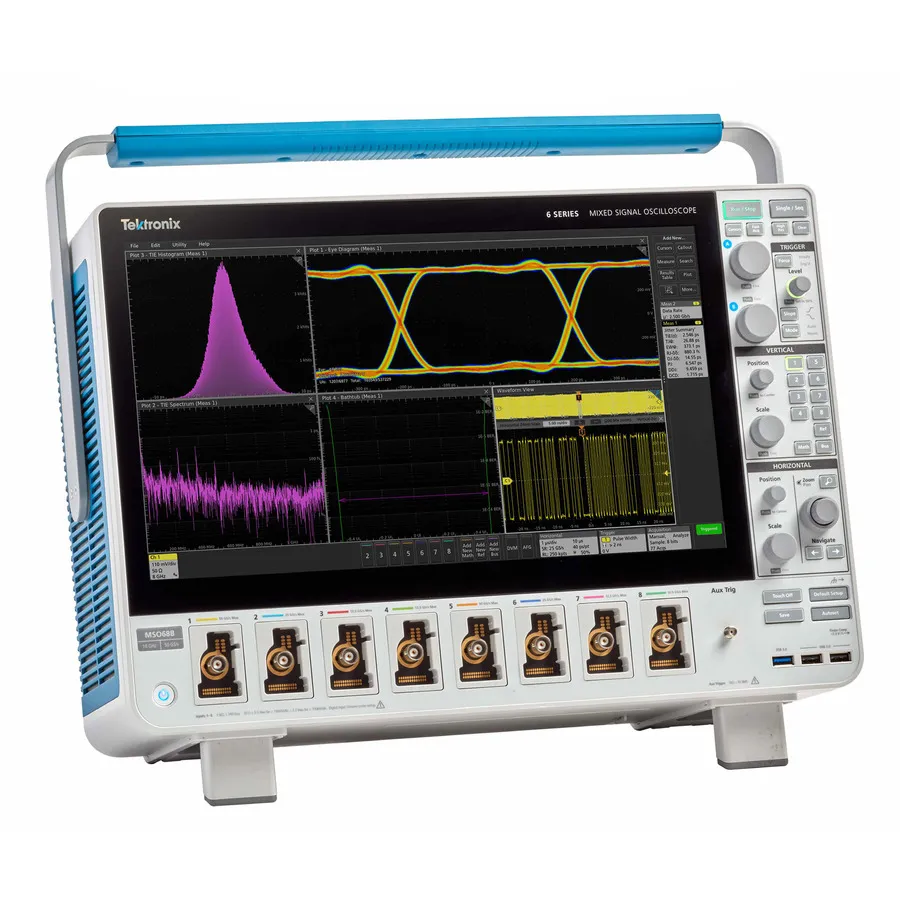

Tektronix MSO64B-TAA 6-BW-10000 Mixed Signal Oscilloscope

Overview

The Tektronix 6 Series B MSO is a TAA-compliant mixed signal oscilloscope designed for government and regulated buyers who require Trade Agreements Act compliance. With up to 10 GHz bandwidth, it delivers the best signal fidelity for analyzing high-speed embedded systems with GHz clock and bus speeds.

Key Features

• 10 GHz analog bandwidth
• 4 FlexChannel inputs (each can be analog or 8 digital logic inputs with optional TLP058 probe)
• Real-time sampling: 50 GS/s (2 channels), 25 GS/s (4 channels)
• Record length: 62.5 Mpoints standard (expandable to 1 Gpoints)
• 12-bit ADC with up to 16-bit High Res mode
• 15.6-inch HD capacitive touchscreen (1920 × 1080)
• Waveform capture rate: >500,000 waveforms/s
• Advanced triggering: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Visual Trigger
• 36 automated measurements and Spectrum View for frequency-domain analysis
• FastFrame segmented memory (>5,000,000 waveforms/s)
• e*Scope remote viewing and control via web browser
• Connectivity: USB Host (7 ports), USB 3.0 Device, LAN, DisplayPort, DVI-I, VGA

Applications

• Jitter analysis and clock characterization
• Vector signal analysis with RF measurements and modulation analysis
• Serial standards compliance testing (Ethernet, Automotive Ethernet, MIPI D-PHY)
• Electromagnetic interference (EMI) troubleshooting
• 3-phase power analysis for inverters, motors, and drives
• High-speed embedded systems debugging

Included Accessories

• TPP1000 1 GHz passive probe for each FlexChannel
• Front cover with integrated accessory pouch
• Mouse
• Power cord
• Printed installation manual
• Certificate of traceability
• 1-year warranty on instrument and probes
