Tektronix MSO58LP/BW-500 Mixed Signal Oscilloscope

Overview

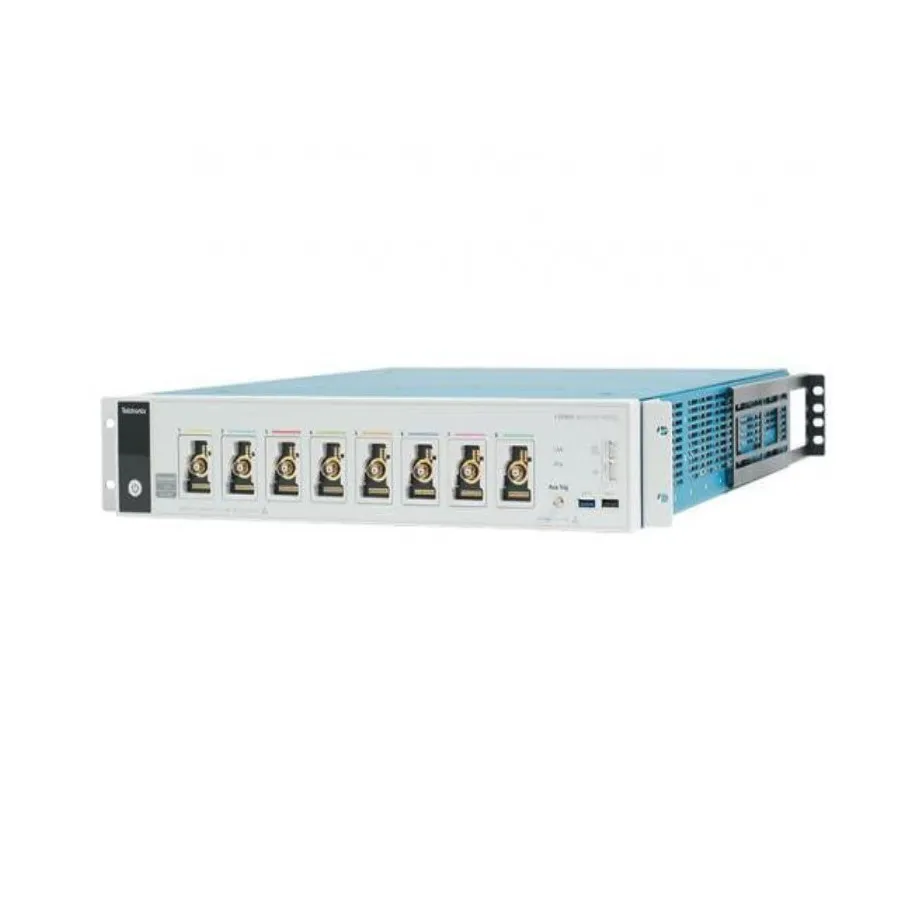

The Tektronix MSO58LP/BW-500 is a low profile mixed signal oscilloscope designed for rack-mounted and space-constrained applications. It delivers 8 FlexChannel inputs with 500 MHz bandwidth in a 2U high package, providing the performance of the benchtop 5 Series MSO in a compact form factor. The instrument offers simultaneous analog and spectrum analysis with optional digital logic inputs, making it ideal for high-channel-density test and measurement systems.

Key Features

• 8 FlexChannel inputs with 500 MHz bandwidth, configurable as analog, digital, or spectrum view
• 6.25 GS/s real-time sample rate with 500 GS/s interpolated option
• 12-bit ADC with up to 16-bit resolution in High Res mode
• Record length from 125 M to 500 Mpoints (optional)
• 2U high rack-mount design with side air vents for direct stacking
• Rackmount brackets pre-installed and ready for deployment
• Simultaneous time and frequency domain analysis via Spectrum View technology
• 36 standard measurements and waveform capture >500,000 waveforms per second
• FastFrame segmented memory mode with >5,000,000 waveforms per second trigger rate
• Integrated jitter analysis and Time Interval Error (TIE) measurements
• Optional external touch-capable monitor support for benchtop-like interface
• Built-in digital voltmeter and trigger frequency counter

Applications

• High-channel-density test and measurement systems
• Embedded system design and debugging in rack environments
• Power analysis and characterization in test systems
• High-speed serial protocol analysis and debugging

Included Accessories

• Rackmount brackets installed
• Power Cord
• Installation and Safety Manual
• Calibration Certificate with traceability to National Metrology Institute
• Three-year Warranty on instrument
