Tektronix MSO58B/5-BW-350 Mixed Signal Oscilloscope
Request a quote
8-channel mixed signal oscilloscope with 350 MHz bandwidth, 6.25 GS/s real-time sample rate, and FlexChannel inputs enabling simultaneous analog and spectrum analysis.
Product details
| Model | MSO58B/5-BW-350 |
| Manufacturer | Tektronix |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview

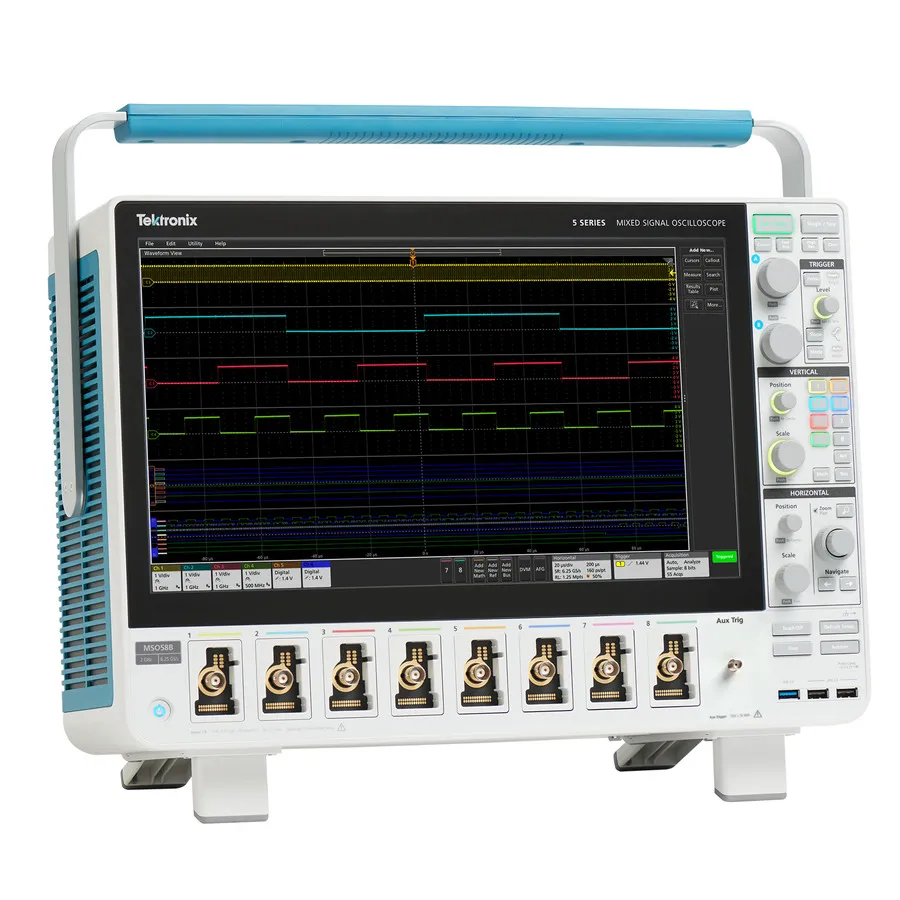

The Tektronix MSO58B/5-BW-350 is a mixed signal oscilloscope designed for engineers and researchers working with complex systems. It combines 8 FlexChannel analog inputs with optional digital logic channels, delivering high-fidelity waveforms and advanced spectrum analysis. The 15.6-inch HD touchscreen, scalable architecture, and powerful debugging tools make it ideal for embedded system design, power analysis, and high-speed serial testing.
Key Features
- 8 FlexChannel inputs with 350 MHz bandwidth, configurable as analog, digital, or spectrum view
- 6.25 GS/s real-time sample rate with 500 GS/s interpolated option
- 12-bit ADC with up to 16-bit resolution in High Res mode
- Record length from 62.5 M to 500 Mpoints standard
- Simultaneous time and frequency domain analysis via Spectrum View technology
- Integrated DPOJET Essentials jitter and eye pattern analysis
- Built-in arbitrary/function generator with 100 MHz sine capability
- 15.6-inch HD TFT capacitive touchscreen with pinch-swipe-zoom interface
- Comprehensive connectivity: USB Host, USB 3.0 Device, LAN, DisplayPort, DVI-D, VGA
- Optional 250 GB removable SSD for data storage
- TekScope PC software for remote analysis and multi-scope waveform processing
- TekDrive collaborative workspace for file sharing and analysis
Applications
- Embedded system design and debugging
- Power analysis and characterization
- High-speed serial protocol testing and decoding
- Jitter and timing analysis for system characterization
Included Accessories
- One Passive Analog Probe per FlexChannel (TPP0500B 500 MHz)
- Power Cord
- Installation and Safety Manual
- Calibration Certificate with traceability to National Metrology Institute
- One-year Warranty on instrument and probes
Specifications
| Bandwidth | 350 MHz |
| Analog Channels | 8 |
| Digital Channels | 64 |
| Sampling Rate | 6.25 GS/s |
| Memory | 62.5 Mpts |
| Type | MSO |
| Vertical Resolution | 12 bit |
| Display Type | 15.6 TFT Capacitive Color Touch |
| Series | 5 Series B MSO |
| Accessories | TDP0500, TDP1000, TDP1500, TDP3500, TDP4000, THDP0100, THDP0200, TIVP02, TIVP02L, TIVP05, TIVP05L, TIVP1, TIVP1L, TMDP0200 |
| Attenuation | 2X |
| Certificate of Calibration | Yes |
| Depth | 11.7" |
| Display | LCD TFT |
| Interface | LAN / Ethernet, LXI, USB Host, USB, VGA or SVGA Out |
| Operating Temperature Range | 32-122°F |
| Risetime | 1.15 ns |
| Warranty | 1 Year |
