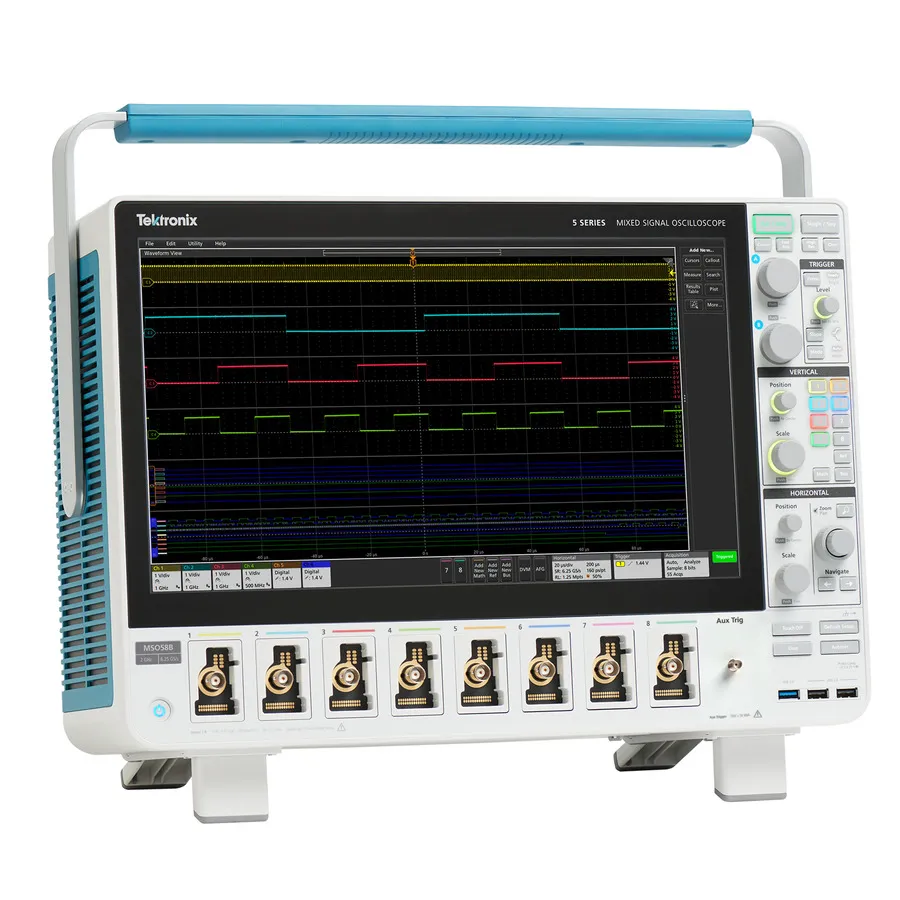

Tektronix MSO58B-TAA 5-BW-500 Mixed Signal Oscilloscope
Request a quote
Tektronix MSO58B-TAA 5-BW-500 is a TAA-compliant 8-channel mixed signal oscilloscope with 500 MHz bandwidth, 6.25 GS/s sampling, 12-bit ADC, and FlexChannel technology.
Product details
| Model | MSO58B-TAA 5-BW-500 |
| Manufacturer | Tektronix |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Tektronix MSO58B-TAA 5-BW-500 is a TAA-compliant 8-channel mixed signal oscilloscope designed for engineers and researchers working with complex embedded systems. Built with a high-resolution 12-bit ADC, large HD touchscreen interface, and flexible FlexChannel inputs, it delivers high-fidelity waveforms and advanced spectrum analysis for comprehensive signal visibility and efficient troubleshooting of embedded designs.
Key Features
- 8 FlexChannel inputs, each configurable as analog, digital (with TLP058 probe), or simultaneous analog/spectrum view
- 500 MHz analog bandwidth with 6.25 GS/s real-time and 500 GS/s interpolated sampling
- 12-bit ADC with up to 16-bit resolution in High Res mode
- 15.6-inch HD touchscreen (1920 × 1080) with capacitive touch
- 62.5M to 500M point record length
- Auxiliary trigger input for synchronization without consuming input channels
- Integrated DPOJET Essentials jitter and eye pattern analysis
- Built-in arbitrary/function generator with 13 waveform types and 128k arbitrary waveforms
- History mode for capturing and reviewing multiple trigger events
- Optional 250 GB removable SSD for secure data storage
Applications
- Embedded system design and validation
- Power delivery and analysis
- High-speed serial bus testing (I2C, SPI, RS-232)
- Mixed-signal debugging and troubleshooting
- Jitter and timing analysis
- Frequency-domain and spectrum analysis
Included Accessories
- One TPP0500B 500 MHz passive analog probe per FlexChannel
- Power cord
- Installation and Safety Manual
- Calibration Certificate with traceability documentation
- Front cover with integrated accessory pouch
- One-year warranty covering parts and labor
Specifications
| Bandwidth | 500 MHz |
| Analog Channels | 8 |
| Digital Channels | 64 |
| Sampling Rate | 6.25 GS/s |
| Memory | 62.5 Mpts |
| Type | MSO |
| Vertical Resolution | 12 bit |
| Display Type | 15.6 TFT Capacitive Color Touch |
| Series | 5 Series B MSO |
| Accessories | TDP0500, TDP1000, TDP1500, TDP3500, TDP4000, THDP0100, THDP0200, TIVP02, TIVP02L, TIVP05, TIVP05L, TIVP1, TIVP1L, TMDP0200 |
| Attenuation | 2X |
| Certificate of Calibration | Yes |
| Depth | 11.7" |
| Display | LCD TFT |
| Interface | LAN / Ethernet, LXI, USB Host, USB, VGA or SVGA Out |
| Operating Temperature Range | 32-122°F |
| Risetime | 0.8 ns |
| Warranty | 1 Year |
