Tektronix MSO58B 5 Series B Mixed Signal Oscilloscope
Request a quote

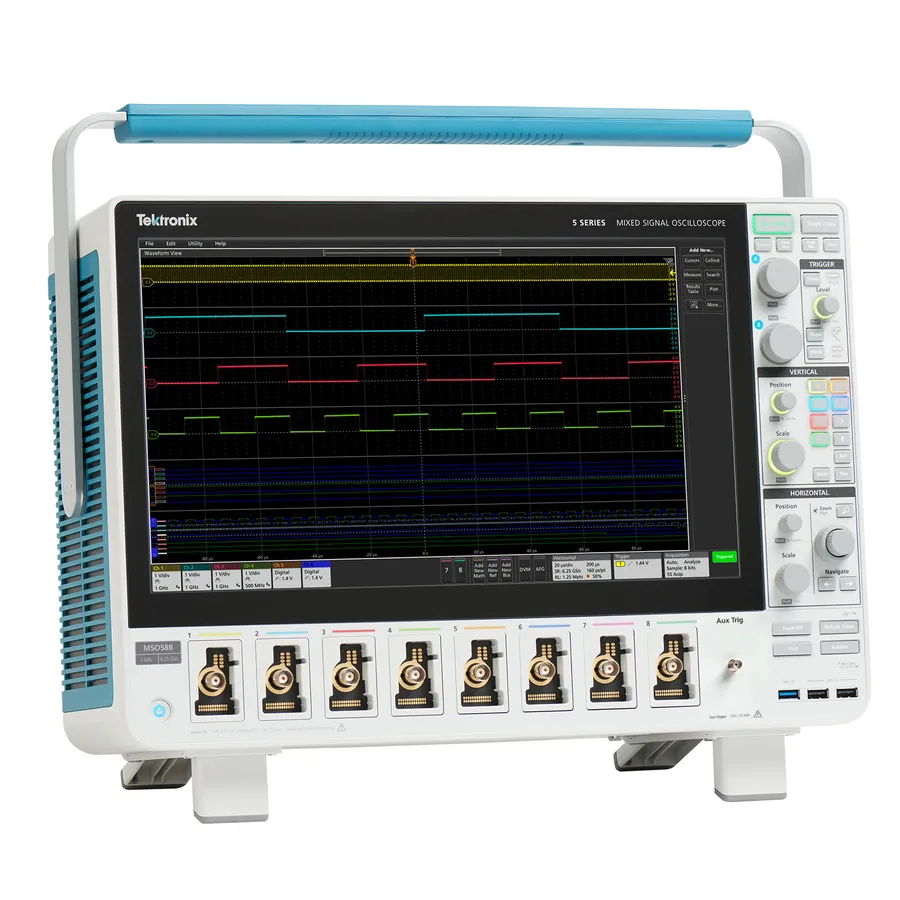

Tektronix MSO58B 5 Series B mixed-signal oscilloscope with 1 GHz bandwidth, 12-bit ADC, 8 FlexChannel inputs, and TAA compliance.
Product details
| Model | MSO58B-TAA 5-BW-1000 |
| Manufacturer | Tektronix |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Tektronix MSO58B is a 5 Series B mixed-signal oscilloscope built to tackle today's toughest measurement challenges. This TAA-compliant version allows government and regulated buyers to meet Trade Agreements Act sourcing requirements while leveraging the platform's high-resolution 12-bit ADC, large HD touchscreen interface, and flexible FlexChannel inputs for comprehensive mixed-signal analysis. Designed for engineers working with complex systems, it delivers unparalleled signal visibility.
Key Features
- 8 FlexChannel inputs for up to 8 analog or 64 digital signals plus external trigger
- 1 GHz bandwidth with 6.25 GS/s real-time sample rate and 500 GS/s interpolated
- 12-bit ADC at 1.25 GHz; 16-bit resolution at 50 MHz for high-fidelity acquisition
- Spectrum analysis with built-in DDCs and independent time/frequency-domain controls per channel
- Support for over 25 serial protocols covering common interfaces
- Advanced jitter and eye pattern analysis with DPOJET Essentials
- Power analysis packages for single-phase and three-phase systems
- Signal and power integrity measurement tools
- 15.6-inch HD touchscreen (1920 × 1080) with responsive processor
- Auxiliary trigger input enabling synchronization without consuming full channel
- History mode with extended memory for multi-event capture and review
- Optional Windows operating system and removable SSD for on-board analysis
- Web browser remote control and LXI compliance for network integration
- TekScope PC software for offline analysis; TekDrive cloud collaboration
Applications
- Embedded system design and troubleshooting
- Power supply and efficiency testing
- High-speed serial protocol debugging and validation
- Signal integrity and timing analysis
- Jitter and frequency response measurements
- Government and defense procurement-regulated environments
Included Accessories
- TPP1000 1 GHz passive probe per FlexChannel
- Installation and safety manual with embedded help
- Front cover with integrated accessory pouch
- Mouse and power cord
- Calibration certificate with national metrology traceability
- 1-year warranty covering all parts and labor
Specifications
| Bandwidth | 1 GHz |
| Analog Channels | 8 |
| Digital Channels | 64 |
| Sampling Rate | 6.25 GS/s |
| Memory | 62.5 Mpts |
| Type | MSO |
| Vertical Resolution | 12 bit |
| Display Type | 15.6 TFT Capacitive Color Touch |
| Series | 5 Series B MSO |
| Accessories | TDP0500, TDP1000, TDP1500, TDP3500, TDP4000, THDP0100, THDP0200, TIVP02, TIVP02L, TIVP05, TIVP05L, TIVP1, TIVP1L, TMDP0200 |
| Attenuation | 2X |
| Certificate of Calibration | Yes |
| Depth | 11.7" |
| Display | LCD TFT |
| Interface | LAN / Ethernet, LXI, USB Host, USB, VGA or SVGA Out |
| Operating Temperature Range | 32-122°F |
| Risetime | 0.4 ns |
| Warranty | 1 Year |
