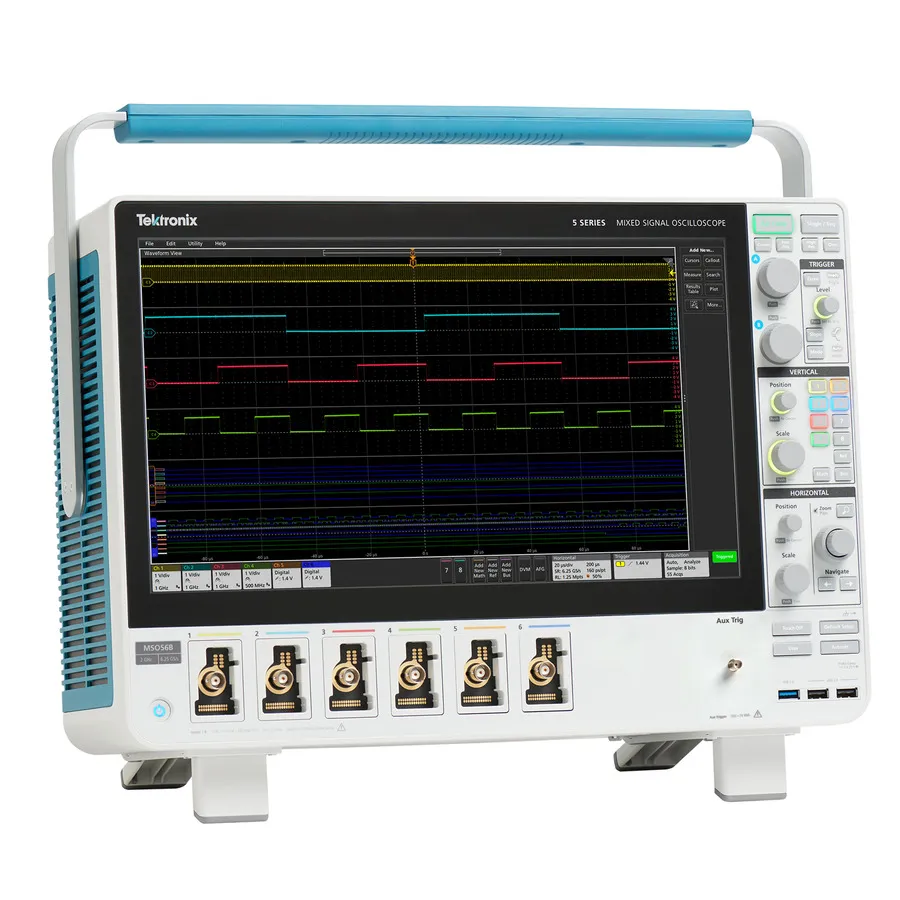

Tektronix MSO56B/5-BW-500 Mixed Signal Oscilloscope
Request a quote
Tektronix MSO56B/5-BW-500 is a 6-channel mixed signal oscilloscope with 500 MHz bandwidth, 6.25 GS/s sample rate, 12-bit ADC, and up to 48 optional digital channels.
Product details
| Model | MSO56B/5-BW-500 |
| Manufacturer | Tektronix |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Tektronix MSO56B/5-BW-500 is a 6-channel Mixed Signal Oscilloscope from the 5 Series B line, designed for engineers and researchers working with complex systems. Built to tackle demanding measurement challenges, it combines high-fidelity waveform acquisition, advanced spectrum analysis capabilities, and versatile probing to provide comprehensive visibility into signal behavior.
Key Features
- 6 FlexChannel analog inputs, each configurable as single analog, eight digital logic inputs with TLP058 probe, or combined analog and spectrum views
- Up to 48 optional digital channels via logic probes
- 500 MHz bandwidth with 225 ps rise time
- 6.25 GS/s real-time sample rate with up to 500 GS/s interpolated
- 12-bit ADC resolution, extendable to 16-bit in High Resolution mode
- Record length up to 500 M points
- 15.6-inch HD TFT capacitive touchscreen (1920 × 1080)
- Integrated spectrum analyzer with independent time and frequency domain controls
- DPOJET Essentials jitter and eye pattern analysis software
- Built-in arbitrary/function generator with 13 standard waveforms
- Support for I2C, SPI, RS-232, and other serial protocol decoding
- Optional 250 GB removable SSD for data storage
- Auxiliary trigger input for synchronization without consuming a channel
- History mode for reviewing multiple captured trigger events
Applications
- Embedded system design and debugging
- Power supply and power analysis measurements
- High-speed serial bus testing and protocol analysis
- Signal integrity and jitter analysis
- Mixed-signal circuit characterization
- RF and frequency domain analysis
Included Accessories
- One TPP0500B 500 MHz passive analog probe per FlexChannel
- Installation and Safety Manual
- Front Cover with Integrated Accessory Pouch
- Power Cord
- Calibration Certificate with ISO9001/ISO17025 traceability
- One-year Warranty on instrument and probes
Specifications
| Bandwidth | 500 MHz |
| Analog Channels | 6 |
| Digital Channels | 48 |
| Sampling Rate | 6.25 GS/s |
| Memory | 62.5 Mpts |
| Type | MSO |
| Vertical Resolution | 12 bit |
| Display Type | 15.6 TFT Capacitive Color Touch |
| Series | 5 Series B MSO |
| Accessories | TDP0500, TDP1000, TDP1500, TDP3500, TDP4000, THDP0100, THDP0200, TIVP02, TIVP02L, TIVP05, TIVP05L, TIVP1, TIVP1L, TMDP0200 |
| Attenuation | 2X |
| Certificate of Calibration | Yes |
| Depth | 11.7" |
| Display | LCD TFT |
| Interface | LAN / Ethernet, LXI, USB Host, USB, VGA or SVGA Out |
| Operating Temperature Range | 32-122°F |
| Risetime | 0.8 ns |
| Warranty | 1 Year |
