Tektronix MSO56B-TAA 5-BW-500 Mixed Signal Oscilloscope
Request a quote

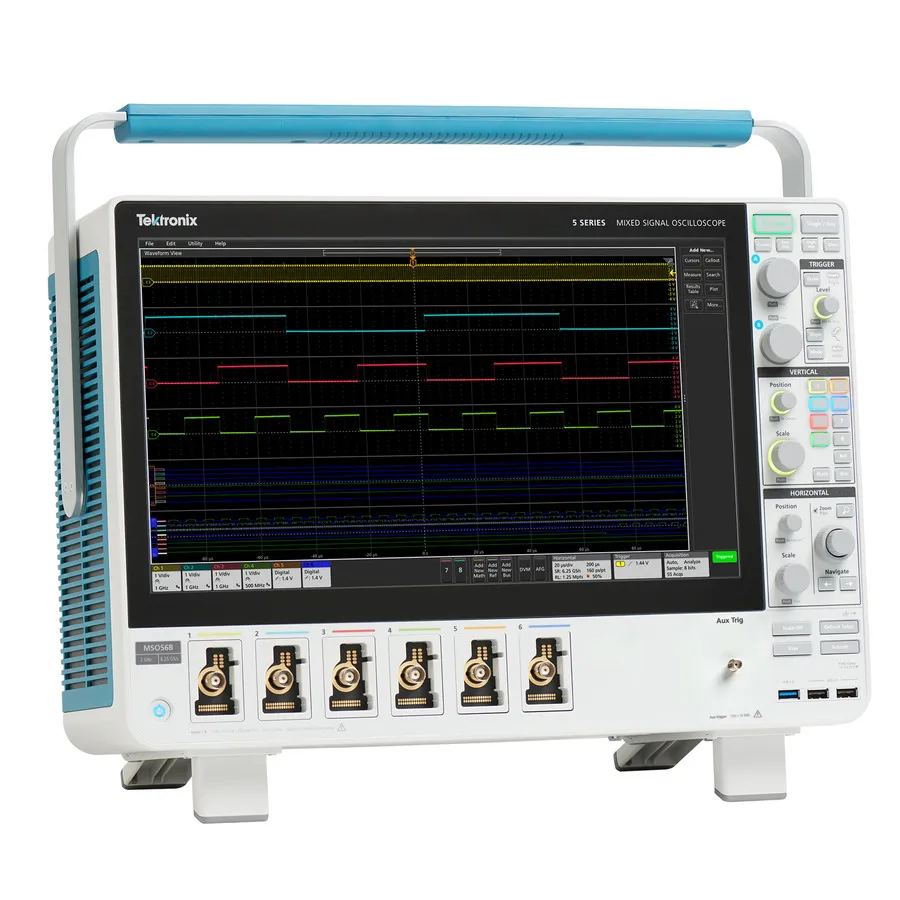

Tektronix MSO56B-TAA 5-BW-500 — 6-channel mixed-signal oscilloscope with 500 MHz bandwidth, 6.25 GS/s real-time sampling, and 12-bit ADC for embedded system analysis.
Product details
| Model | MSO56B-TAA 5-BW-500 |
| Manufacturer | Tektronix |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Tektronix MSO56B-TAA 5-BW-500 is a Trade Agreements Act-compliant 6-channel mixed-signal oscilloscope designed for government and regulated procurement environments. It features a high-resolution 12-bit ADC, 15.6-inch HD touchscreen, and FlexChannel technology for flexible mixed-signal analysis. The 500 MHz bandwidth and 6.25 GS/s real-time sample rate deliver high-fidelity waveform capture for embedded system validation, power analysis, and high-speed serial protocol testing.
Key Features
- 6 FlexChannel analog inputs, configurable for up to 48 digital logic channels with optional TLP058 logic probes
- 500 MHz bandwidth with 6.25 GS/s real-time sample rate and up to 500 GS/s interpolated sampling
- 12-bit vertical resolution, upgradeable to 16-bit in High Resolution mode
- 15.6-inch capacitive touchscreen display (1920 × 1080 HD)
- Spectrum analysis with independent time and frequency-domain views per FlexChannel
- DPOJET Essentials integrated jitter and eye pattern analysis
- Built-in arbitrary/function generator with 13 standard waveforms and up to 128k-point arbitrary waveforms at 250 MS/s
- Optional 250 GB removable SSD for secure data storage
- Auxiliary trigger input for synchronization without consuming a full capability channel
- History mode to capture and review multiple trigger events
- TekScope PC software for remote waveform analysis and multi-scope processing
- TekDrive cloud workspace for collaborative file sharing and analysis
- Connectivity: USB (7 host + 1 device), LAN (LXI compliant), Display Port, DVI-D, VGA
Applications
- Embedded system design and validation
- Power integrity and supply analysis
- High-speed serial protocol testing (I2C, SPI, RS-232 with optional decoding)
- Frequency response and signal characterization
- Jitter and timing analysis
- Government and defense procurement (TAA-compliant)
Included Accessories
- One Passive Analog Probe per FlexChannel (TPP0500B 500 MHz)
- Installation and Safety Manual
- Embedded Help
- Front Cover with Integrated Accessory Pouch
- Power Cord
- Calibration Certificate with traceability to national metrology institutes
- One-year Warranty covering parts and labor on instrument and probes
Specifications
| Bandwidth | 500 MHz |
| Analog Channels | 6 |
| Digital Channels | 48 |
| Sampling Rate | 6.25 GS/s |
| Memory | 62.5 Mpts |
| Type | MSO |
| Vertical Resolution | 12 bit |
| Display Type | 15.6 TFT Capacitive Color Touch |
| Series | 5 Series B MSO |
| Accessories | TDP0500, TDP1000, TDP1500, TDP3500, TDP4000, THDP0100, THDP0200, TIVP02, TIVP02L, TIVP05, TIVP05L, TIVP1, TIVP1L, TMDP0200 |
| Attenuation | 2X |
| Certificate of Calibration | Yes |
| Depth | 11.7" |
| Display | LCD TFT |
| Interface | LAN / Ethernet, LXI, USB Host, USB, VGA or SVGA Out |
| Operating Temperature Range | 32-122°F |
| Risetime | 0.8 ns |
| Warranty | 1 Year |
