Tektronix MSO56B-TAA 5-BW-1000 Mixed Signal Oscilloscope

Overview

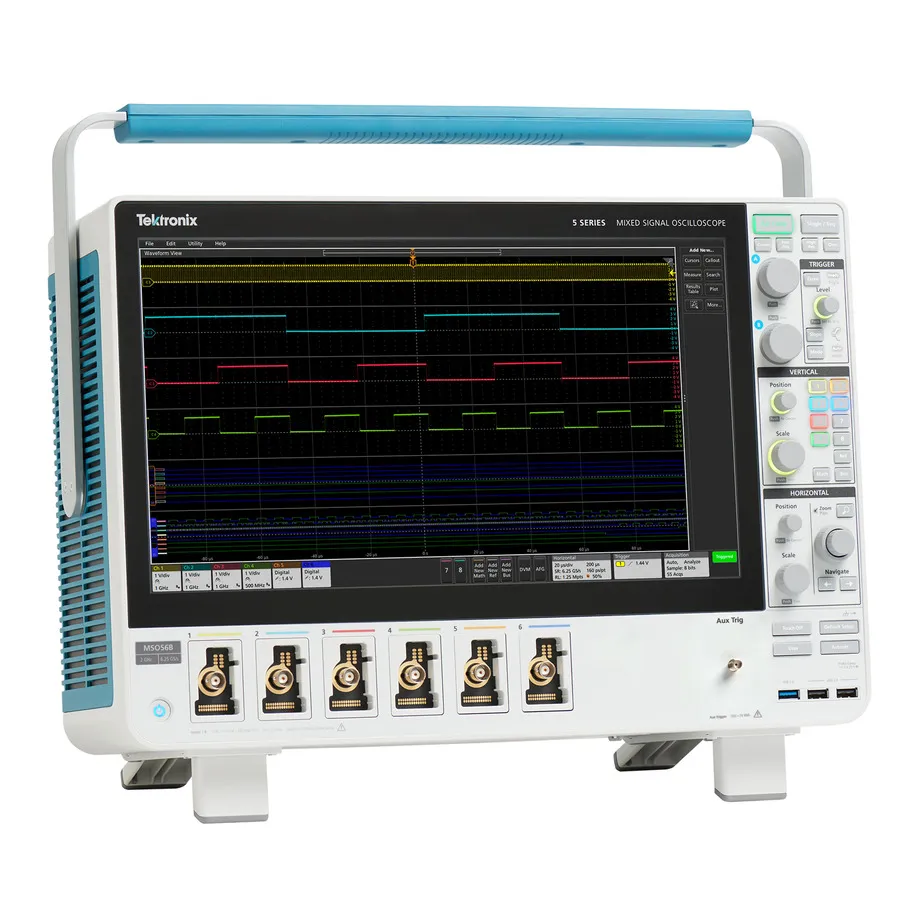

The Tektronix MSO56B-TAA is a 6-channel mixed signal oscilloscope designed for engineers and researchers working with complex embedded systems. TAA-compliant for government and regulated procurement, it combines a high-resolution 12-bit ADC (expandable to 16-bit in High Res mode), a large 15.6-inch HD touchscreen interface, and flexible FlexChannel inputs that enable simultaneous analog and digital signal analysis.

Built for today's toughest challenges, the MSO56B-TAA delivers high-fidelity waveforms, advanced spectrum analysis, versatile probing options, and comprehensive triggering capabilities. Its scalable architecture and intuitive interface make it an ideal solution for embedded system design, power analysis, and high-speed serial testing, providing unparalleled visibility into complex signals.

Key Features

• 6 FlexChannel inputs with configurable analog/digital mode selection
• Up to 48 optional digital channels using optional TLP058 logic probes
• 1 GHz bandwidth with 6.25 GS/s real-time sample rate and 500 GS/s interpolated rate
• Record length up to 500 M points for extended capture
• 12-bit ADC with up to 16-bit resolution in High Res mode
• 15.6-inch high-definition capacitive touchscreen (1920 × 1080)
• Optional 250 GB removable SSD for secure data storage
• DPOJET Essentials jitter and eye pattern analysis integrated
• Spectrum view with independent time- and frequency-domain controls
• Built-in 13-waveform arbitrary/function generator (100 MHz sine, 50 MHz square/pulse)
• Connectivity: USB Host (7 ports), USB 3.0 Device, LAN (LXI Compliant), DisplayPort, DVI-D, VGA
• TekScope software for PC-based waveform analysis and remote oscilloscope access
• TekDrive integration for collaborative file management and sharing
• Auxiliary trigger input for synchronization without consuming a full channel
• Made in the USA

Applications

• Embedded system design, validation, and debugging
• Power analysis and power delivery network (PDN) testing
• High-speed serial protocol analysis (I2C, SPI, RS-232)
• Jitter and timing analysis for clock and data signals
• Mixed-domain frequency and time-domain waveform analysis
• Automotive and aerospace design validation
• Government and regulated procurement requiring TAA compliance

Included Accessories

• MSO56B/5-BW-1000 6-channel mixed signal oscilloscope
• One TPP1000 1 GHz passive analog probe per FlexChannel
• Installation and Safety Manual with embedded help
• Front cover with integrated accessory pouch
• Power cord
• Calibration certificate documenting traceability to national metrology institute(s)
• One-year warranty covering all parts and labor on instrument and included probes
