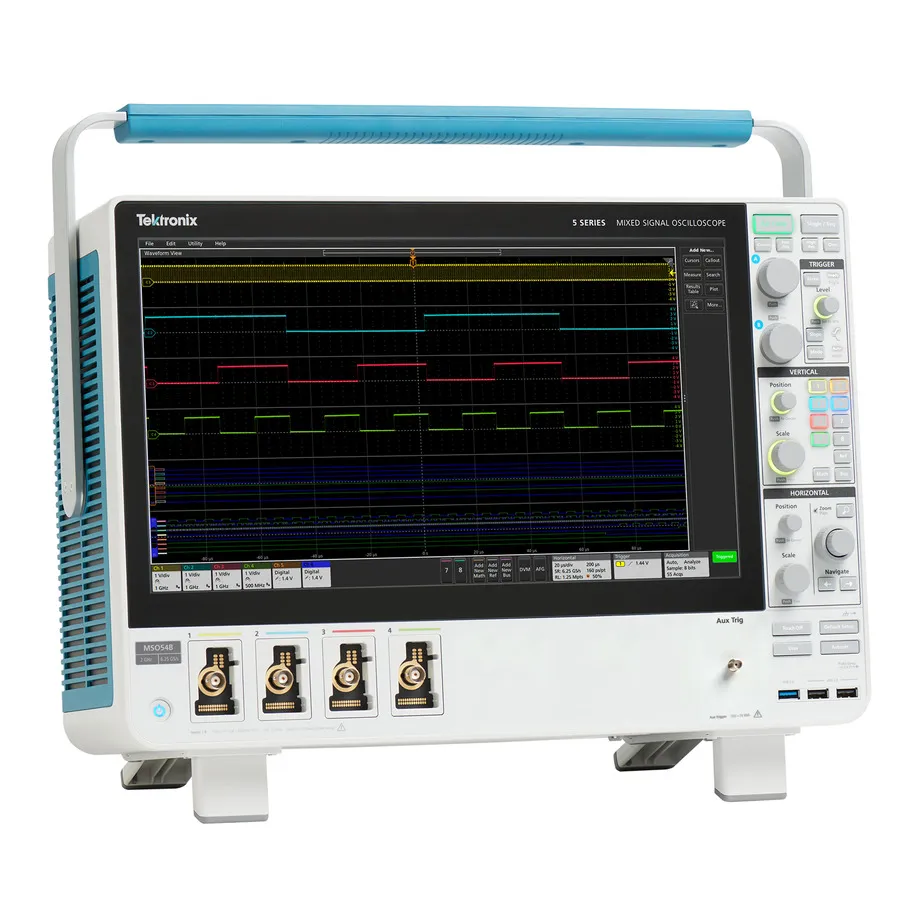

Tektronix MSO54B/5-BW-500 Mixed Signal Oscilloscope

Overview

The Tektronix MSO54B/5-BW-500 is a 4-channel mixed signal oscilloscope from the 5 Series B line, designed for engineers and researchers working with complex embedded systems, power analysis, and high-speed serial testing. With 500 MHz bandwidth, 6.25 GS/s real-time sampling, optional 32 digital channels via FlexChannel technology, and a 15.6-inch HD touchscreen, it provides comprehensive visibility into analog and digital signals simultaneously.

Key Features

• 4 FlexChannel analog inputs with configurable digital channel support (up to 32 digital channels with optional logic probes)
• 500 MHz bandwidth with 6.25 GS/s real-time sample rate and up to 500 GS/s interpolated sampling
• 12-bit ADC resolution (up to 16-bit in High Resolution mode)
• 62.5 M to 500 M point record length
• 15.6-inch HD capacitive touchscreen (1920 × 1080) with intuitive pinch-swipe-zoom interface
• Independent time and frequency domain analysis with spectrum view capability
• DPOJET Essentials jitter and eye pattern analysis software integrated
• Built-in arbitrary/function generator with 13 waveform functions and 128k point arbitrary waveforms
• Optional 250 GB removable SSD for data storage
• Multiple connectivity options: USB 3.0, LAN (LXI compliant), DisplayPort, DVI-D, VGA

Applications

• Embedded system design and debugging
• Power analysis and measurement
• High-speed serial protocol testing (I2C, SPI, RS-232 decoding)
• Frequency response characterization
• System timing and jitter analysis

Included Accessories

• One passive analog probe per FlexChannel (TPP0500B 500 MHz)
• Installation and Safety Manual
• Embedded Help system
• Front Cover with Integrated Accessory Pouch
• Power Cord
• Calibration Certificate with ISO9001/ISO17025 traceability
• One-year Warranty on instrument and probes
