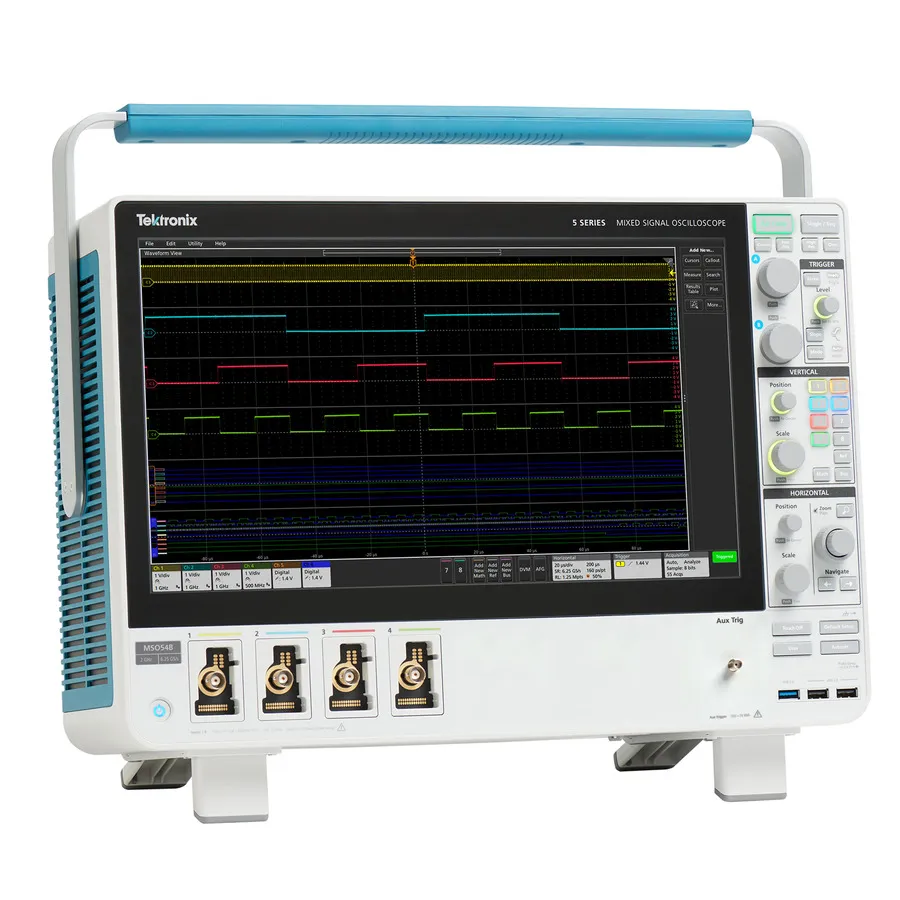

Tektronix MSO54B/5-BW-350 Mixed Signal Oscilloscope
Request a quote
Tektronix MSO54B/5-BW-350 mixed signal oscilloscope with 350 MHz bandwidth, 6.25 GS/s sample rate, 12-bit ADC, and FlexChannel technology for flexible signal analysis.
Product details
| Model | MSO54B/5-BW-350 |
| Manufacturer | Tektronix |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Tektronix MSO54B/5-BW-350 is a 4-channel mixed signal oscilloscope ideal for engineers working with moderately-paced embedded systems and general-purpose signal analysis. Featuring 350 MHz bandwidth, high-resolution 12-bit ADC, intuitive 15.6-inch HD touchscreen, and flexible FlexChannel inputs, it offers excellent value for comprehensive mixed-signal troubleshooting and validation.
Key Features
- 4 FlexChannel analog inputs, expandable to 32 digital channels with optional logic probes
- 350 MHz bandwidth with 6.25 GS/s real-time sample rate (500 GS/s interpolated)
- 12-bit ADC with up to 16-bit resolution in High Res mode
- 15.6-inch HD touchscreen (1920 × 1080) with capacitive controls
- FlexChannel technology for simultaneous analog and spectrum analysis
- Integrated DPOJET Essentials for jitter and eye pattern analysis
- Built-in arbitrary/function generator with 13 waveform types
- Up to 500 Mpoints record length with optional 250 GB removable SSD storage
- Comprehensive connectivity: USB Host (7 ports), USB 3.0, LAN (LXI-compliant), DisplayPort, DVI-D, VGA
- History mode for capturing and reviewing multiple trigger events
Applications
- Embedded system design and general-purpose validation
- Digital and analog signal troubleshooting
- Educational and training applications
- Mixed-signal circuit development and prototyping
Included Accessories
- TPP0500B 500 MHz passive analog probe for each FlexChannel
- Installation and Safety Manual with embedded help
- Front Cover with integrated accessory pouch
- Power Cord
- Calibration Certificate with traceability to National Metrology Institute
- One-year warranty on instrument and included probes
Specifications
| Bandwidth | 350 MHz |
| Analog Channels | 4 |
| Digital Channels | 32 |
| Sampling Rate | 6.25 GS/s |
| Memory | 62.5 Mpts |
| Type | MSO |
| Vertical Resolution | 12 bit |
| Display Type | 15.6 TFT Capacitive Color Touch |
| Series | 5 Series B MSO |
| Accessories | TDP0500, TDP1000, TDP1500, TDP3500, TDP4000, THDP0100, THDP0200, TIVP02, TIVP02L, TIVP05, TIVP05L, TIVP1, TIVP1L, TMDP0200 |
| Attenuation | 2X |
| Certificate of Calibration | Yes |
| Depth | 11.7" |
| Display | LCD TFT |
| Interface | LAN / Ethernet, LXI, USB Host, HDMI, USB, VGA or SVGA Out |
| Operating Temperature Range | 32-122°F |
| Risetime | 1.15 ns |
| Warranty | 1 Year |
