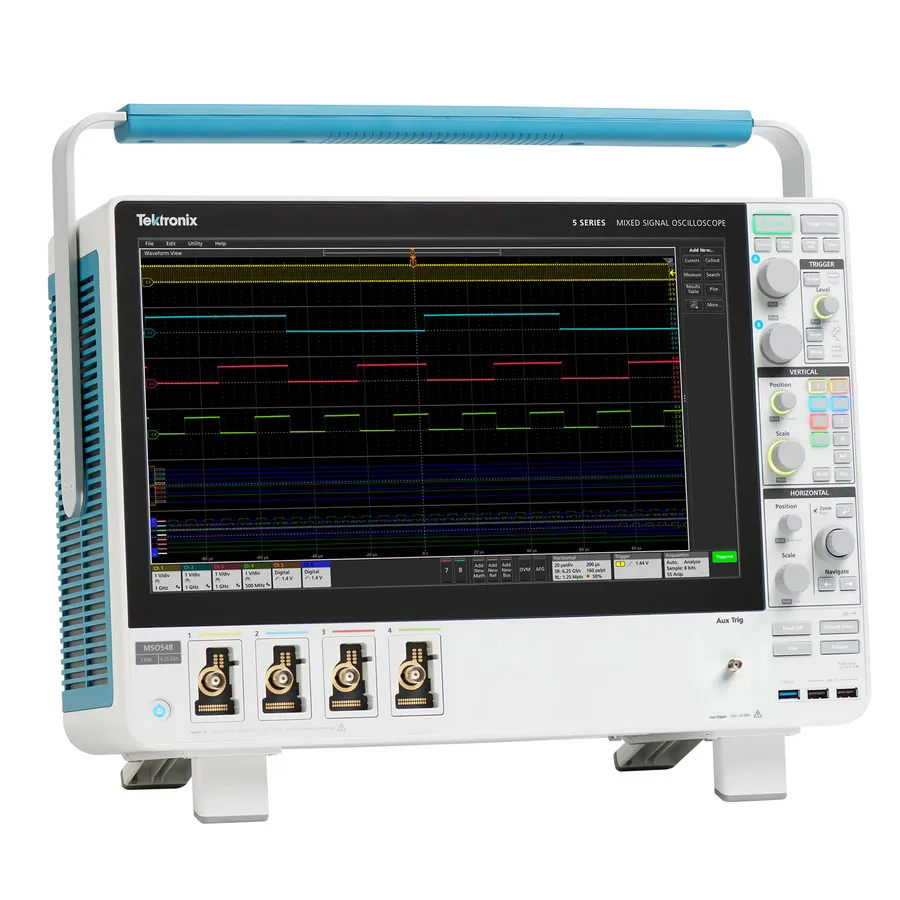

Tektronix MSO54B-TAA 5-BW-350 Mixed Signal Oscilloscope
Tektronix MSO54B-TAA 5-BW-350 — TAA-compliant 4-channel mixed signal oscilloscope with 350 MHz bandwidth, 12-bit ADC, and 15.6-inch HD touchscreen for embedded system design.
Product details
| Model | MSO54B-TAA 5-BW-350 |
| Manufacturer | Tektronix |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Tektronix 5 Series B MSO (Mixed Signal Oscilloscope) is a TAA-compliant instrument designed for engineers and researchers working with complex embedded systems. It delivers high-fidelity waveforms, advanced spectrum analysis, and flexible probing in a single integrated platform. The MSO54B model features four FlexChannel inputs, optional digital channels (up to 32), and a large 15.6-inch HD touchscreen for intuitive operation and panoramic signal visibility.
Built with a 12-bit ADC and up to 16-bit resolution in High Res mode, combined with FlexChannel technology and innovative analysis tools, the MSO54B provides unparalleled visibility into your signals without compromising on procurement rules for government and regulated buyers.
Key Features
- Four FlexChannel inputs configured as analog, digital (via TLP058 probes), or simultaneous analog and spectrum views
- 350 MHz analog bandwidth with 6.25 GS/s real-time or 500 GS/s interpolated sampling
- 12-bit ADC vertical resolution, upgradable to 16-bits in High Res mode
- Record length: 62.5 M to 500 Mpoints
- 15.6-inch HD TFT touchscreen (1920 × 1080) with responsive controls
- Integrated jitter and eye pattern analysis (DPOJET Essentials)
- Built-in arbitrary/function generator with 13 waveform types
- Multi-domain analysis: independent time and frequency-domain viewing per channel
- Optional 250 GB removable SSD with Windows for secure data storage
- Extensive connectivity: 7 USB Host ports, USB 3.0 Device, 10/100/1000 Ethernet (LXI), DisplayPort, DVI-D, VGA
Applications
- Embedded system design and validation
- Power integrity and power analysis
- High-speed serial protocol testing (I2C, SPI, RS-232)
- Signal characterization and jitter analysis
- Multi-domain troubleshooting and debugging
- Frequency response testing and sensor signal simulation
Included Accessories
- MSO54B/5-BW-350 4-channel oscilloscope
- One passive analog probe per FlexChannel (TPP0500B 500 MHz)
- Front cover with integrated accessory pouch
- Power cord
- Installation and safety manual with embedded help
- ISO9001/ISO17025 calibration certificate with traceability
- One-year warranty on instrument and included probes
Specifications
| Bandwidth | 350 MHz |
| Analog Channels | 4 |
| Digital Channels | 32 |
| Sampling Rate | 6.25 GS/s |
| Memory | 62.5 Mpts |
| Type | MSO |
| Vertical Resolution | 12 bit |
| Display Type | 15.6 TFT Capacitive Color Touch |
| Series | 5 Series B MSO |
| Accessories | TDP0500, TDP1000, TDP1500, TDP3500, TDP4000, THDP0100, THDP0200, TIVP02, TIVP02L, TIVP05, TIVP05L, TIVP1, TIVP1L, TMDP0200 |
| Attenuation | 2X |
| Certificate of Calibration | Yes |
| Depth | 11.7" |
| Display | LCD TFT |
| Interface | LAN / Ethernet, LXI, USB Host, HDMI, USB, VGA or SVGA Out |
| Operating Temperature Range | 32-122°F |
| Risetime | 1.15 ns |
| Warranty | 1 Year |
