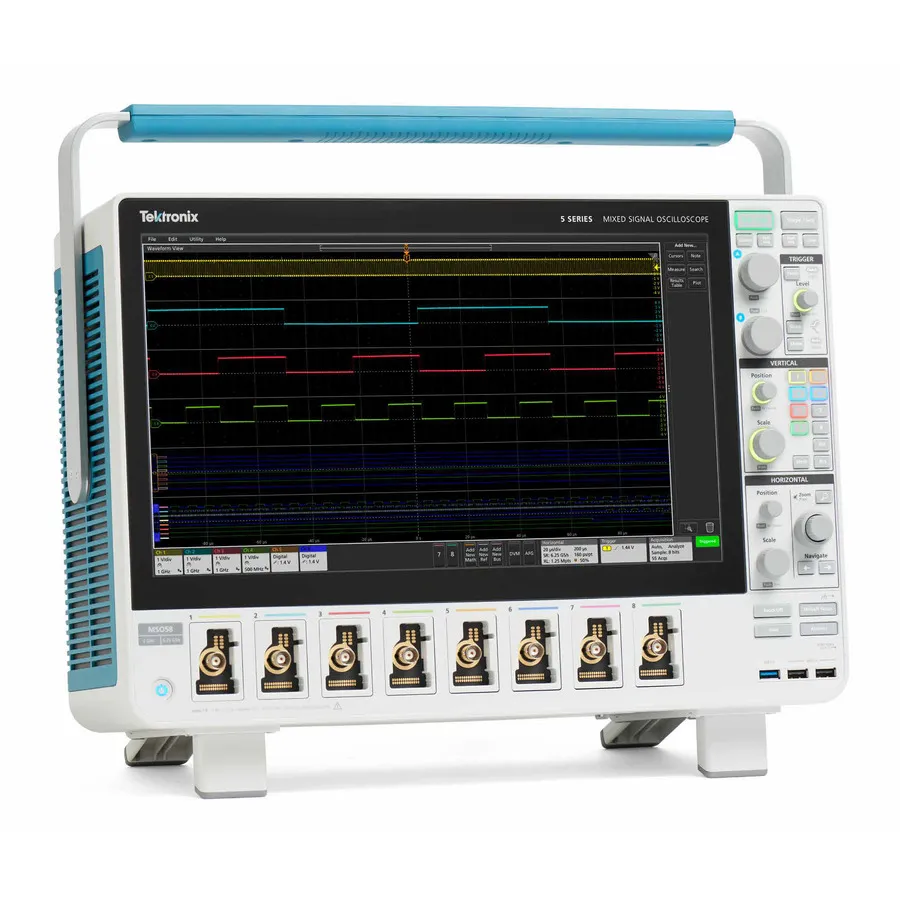

Tektronix MSO54 5-BW-2000 Mixed Signal Oscilloscope

Overview

The Tektronix MSO54 5 Series mixed signal oscilloscope is a premium test and measurement instrument designed for complex embedded system verification and analysis. With an innovative pinch-swipe-zoom touchscreen interface and the industry's largest HD display, it provides an intuitive user experience for demanding measurement applications. The MSO54 5-BW-2000 delivers 2 GHz bandwidth and supports simultaneous analog and digital signal measurement through its advanced FlexChannel technology.

Key Features

• 4 FlexChannel inputs with configurable 1 analog + 8 digital per channel
• 2 GHz bandwidth with 6.25 GS/s real-time and 500 GS/s interpolated sample rate
• 12-bit vertical resolution, upgradeable to 16-bit in High Res mode
• 62.5 Mpoints standard record length, up to 500 Mpoints optional
• Waveform capture rate >500,000 waveforms/s with FastFrame segmented memory
• Innovative pinch-swipe-zoom touchscreen with high-definition display
• Comprehensive trigger types: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual, and optional Video/RF
• Advanced analysis including 36 standard measurements, spectrum analysis, FFT, jitter measurements, and math functions

Applications

• Embedded systems debugging and verification
• Mixed-signal circuit analysis and characterization
• Protocol decoding and physical layer analysis
• Power integrity and signal integrity measurements
• RF and microwave testing
