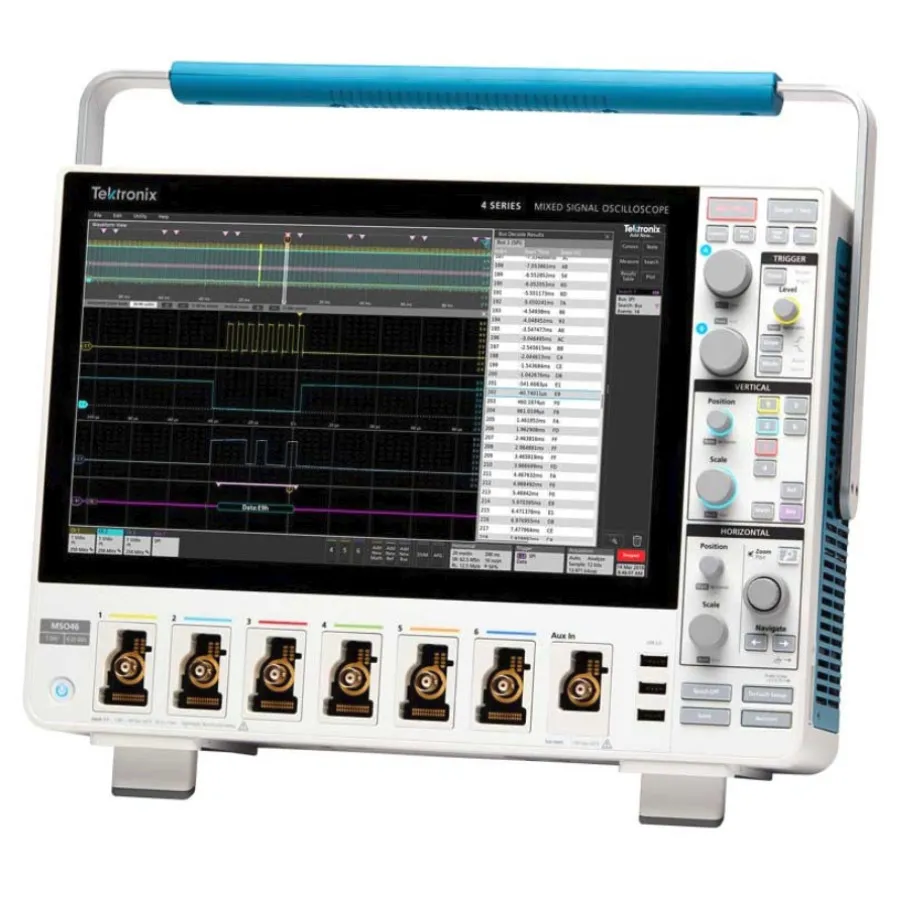

Tektronix MSO46B Mixed Signal Oscilloscope

Overview

The Tektronix MSO46B 200 MHz variant is a 6-channel mixed signal oscilloscope designed for general-purpose measurements and embedded systems debugging. Part of the 4 Series B line, it features an upgraded processor for faster operation and 12-bit analog-to-digital converters (ADCs) that deliver 16 times greater vertical resolution compared to standard 8-bit oscilloscopes. With 6.25 GS/s sampling across all channels and 13.3-inch high-definition touchscreen interface, it provides an intuitive platform for signal analysis and troubleshooting.

The innovative FlexChannel technology allows each of the six analog input channels to function as an analog channel, eight digital logic inputs (with optional TLP058 probe), or provide simultaneous analog and spectrum views. This flexibility makes it ideal for power supply characterization, embedded systems debugging, and general electronic device testing.

Key Features

• 6 analog channels with 12-bit ADC resolution (up to 16-bit in Hi-Res mode)
• 200 MHz bandwidth with 6.25 GS/s sampling rate on all channels simultaneously
• Up to 48 digital logic channels via FlexChannel and TLP058 probes (sold separately)
• 13.3-inch full HD (1920 × 1080) capacitive touchscreen with multi-touch gesture support
• Record lengths: 31.25 Mpoints per channel (62.5 Mpoints optional)
• Waveform capture rate exceeding 500,000 waveforms/second for detection of rare events
• FastFrame segmented memory acquisition with trigger rates >5,000,000 waveforms/second
• 36 built-in measurements and dual-domain analysis (time and frequency via Spectrum View)
• Digital Phosphor technology with intensity grading for visualization of rare transients
• Multiple trigger types: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger
• Connectivity: 3 × USB2 Host, 2 × USB3 Host, 1 × USB Device, 1 × Ethernet
• Field-upgradeable with optional 50 MHz arbitrary/function generator and serial protocol decoding
• 1-year warranty covering all parts and labor

Applications

• Embedded systems debugging and validation
• Power supply and power converter testing
• Analog signal chain characterization
• System integration and device validation
• General-purpose signal analysis and troubleshooting

Included Accessories

• One passive 250 MHz analog probe for each of the six input channels
• Installation and safety manual
• Power cord
• Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration
