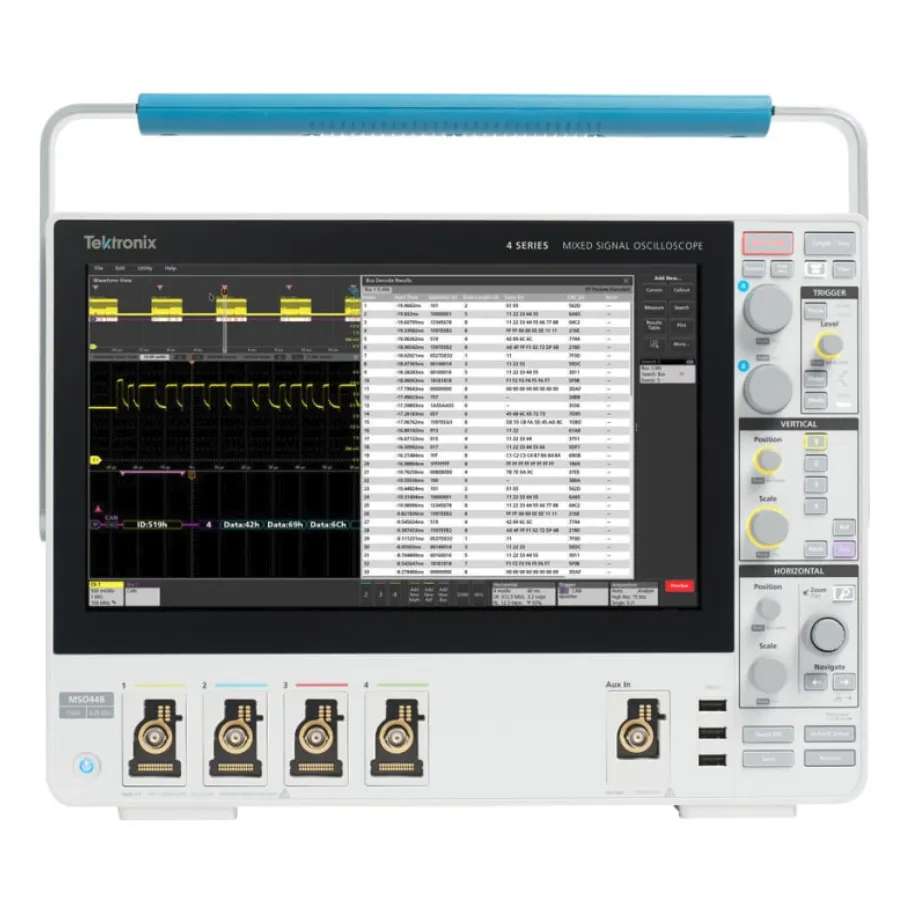

Tektronix MSO44B/4-BW-350 Mixed Signal Oscilloscope

Overview

The Tektronix MSO44B is a 4-series mixed signal oscilloscope designed for embedded systems debugging and signal integrity analysis. With 4 analog channels expandable to 32 digital logic channels (with optional TLP058 probe), 350 MHz bandwidth, and 12-bit vertical resolution up to 16-bit in Hi-Res mode, it offers industry-leading performance in a compact form factor with a 13.3-inch capacitive touchscreen.

Key Features

• 4 analog channels expandable to 32 digital logic channels with TLP058 probe
• 350 MHz bandwidth with 6.25 GS/s sampling on all channels
• 12-bit ADC with up to 16-bit resolution in Hi-Res mode for superior vertical accuracy
• FlexChannel technology allows each input to function as analog, digital, or spectrum view independently
• Spectrum View with integrated RF measurements (Channel Power, Adjacent Channel Power Ratio, Occupied Bandwidth)
• Digital Phosphor technology with >500,000 waveforms/s capture rate for detecting rare events
• 13.3-inch capacitive multi-touch touchscreen with gesture support (1920×1080)
• 36 automated measurements, 4 cursor modes, and FastFrame segmented memory with >5M triggers/second
• Field upgradeable with protocol decoding (I2C, SPI, RS-232, USB 2.0, Ethernet), 50 MHz function generator, and advanced analysis

Applications

• Embedded systems debugging and validation
• Digital logic and mid-range RF signal analysis
• Signal integrity and timing analysis
• Protocol decoding and verification
• Power converter analysis
• Automated test equipment integration

Included Accessories

• Four low-capacitance 10X passive probes for input channels
• Probe accessory kit
• Installation and safety manual
• Front cover with integrated accessory pouch
• Power cord
• Calibration certificate with ISO9001/ISO17025 traceability
