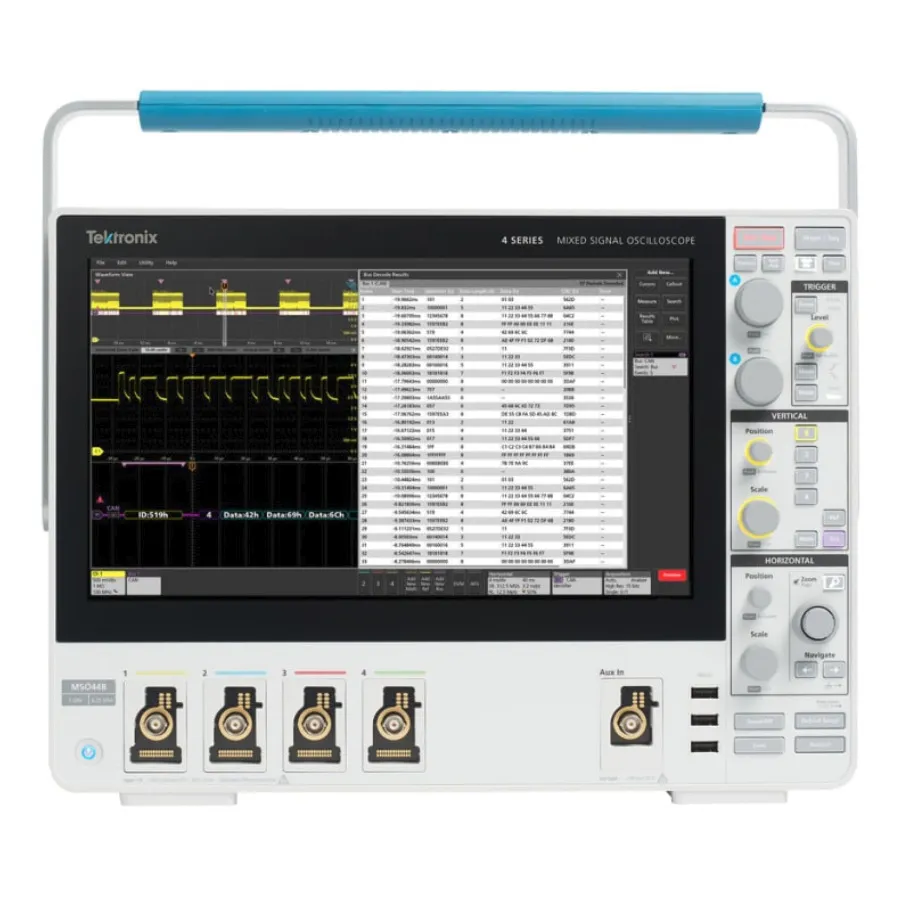

Tektronix MSO44B Mixed Signal Oscilloscope

Overview

The Tektronix 4 Series B MSO44B is an advanced 4-channel mixed signal oscilloscope engineered for debugging embedded systems, power converter analysis, and complex signal measurements. Featuring a significantly faster processor system compared to earlier models, the MSO44B delivers 2X more responsive controls and expedited data analysis. The instrument combines performance with versatile analysis capabilities, offering 4 FlexChannel inputs that can function as analog channels, digital logic inputs (with optional TLP058 probe), or provide simultaneous analog and spectrum views with independent controls. Each channel delivers full sample rate and record length simultaneously across all inputs.

Key Features

• 4 FlexChannels with 12-bit ADCs, expandable to 32 digital channels with optional logic probe
• Bandwidth options from 200 MHz to 1.5 GHz
• 6.25 GS/s sample rate on all channels simultaneously
• 31.25 Mpoints standard record length (62.5 Mpoints optional) per channel
• 13.3-inch full HD capacitive multi-touch touchscreen with improved viewing angle
• Waveform capture rate exceeding 500,000 waveforms per second
• 12-bit vertical resolution (up to 16-bit in High Res mode with intelligent noise filtering)
• FastFrame segmented memory acquisition with maximum trigger rate exceeding 5 million waveforms per second
• Spectrum View with integrated RF measurements including Channel Power (CHP), Adjacent Channel Power Ratio (ACPR), and Occupied Bandwidth (OBW)
• Digital Phosphor technology with intensity grading for rare event visibility
• Comprehensive trigger types including Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, and Visual Trigger
• 36 automated measurements with cursors and waveform histograms
• Math functions including basic waveform arithmetic, FFT, and advanced equation editor
• Protocol triggers and decoding for I2C, SPI, I3C, RS-232/422/485/UART, USB 2.0, and Ethernet
• Optional 50 MHz arbitrary/function generator (field upgradeable)
• Field-upgradeable software options for enhanced analysis capabilities
• Remote operation support with PC-based analysis software

Applications

• Embedded systems debugging and validation
• Power supply and converter analysis
• RF and spectrum measurements for wireless systems
• Digital logic and protocol analysis
• Automotive and aerospace applications (with optional measurement packages)
• Power quality measurements on three-phase power systems
• Signal integrity analysis for high-speed designs

Included Accessories

• One low-capacitance 10X passive probe per input channel
• Probe accessory kit
• Installation and safety manual
• Front cover with integrated accessory pouch
• Power cord
• Calibration certificate with traceability to National Metrology Institute(s)
