Tektronix MSO44 4-BW-500 Mixed Signal Oscilloscope

Overview

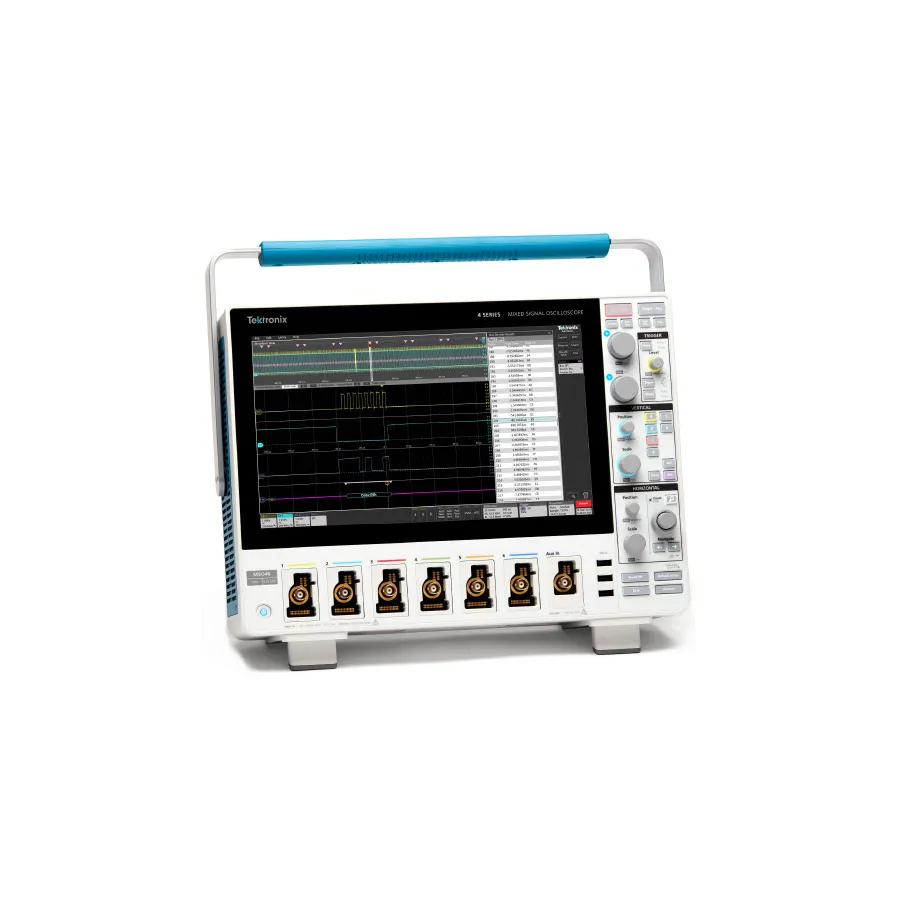

The Tektronix MSO44 4-BW-500 is a 4-channel mixed signal oscilloscope featuring the same intuitive made-for-touch user interface as the award-winning 5 Series. With the largest and highest-resolution display in its class (13.3-inch, 1920 x 1080), FlexChannel technology, and comprehensive analysis tools, it provides unprecedented signal viewing capability and measurement flexibility for complex embedded systems, power electronics, and automotive applications.

Key Features

• 500 MHz bandwidth with 6.25 GS/s sample rate across all channels
• 4 analog channels with optional up to 32 digital channels via FlexChannel technology
• 13.3-inch HD capacitive touchscreen with pinch-swipe-zoom controls
• 31.25 M to 62.5 M point record length on all channels simultaneously
• 12-bit ADC with up to 16-bit resolution in High Res mode
• Over 500,000 waveforms/s capture rate with Stacked Display Mode for superior visibility
• 36 automated measurements with cursors, histogram, and spectrum analysis
• Advanced trigger capabilities including Visual Trigger and 25+ serial protocol decoders
• FastFrame segmented memory with >5,000,000 waveforms/s trigger rate
• Wave Inspector controls for rapid waveform navigation
• Connectivity: USB 2.0, LAN (10/100/1000 Base-T Ethernet), HDMI
• Optional 50 MHz Arbitrary/Function Generator

Applications

• Embedded systems design and debugging
• Three-phase power electronics analysis and characterization
• Automotive electronics development and validation
• Power supply design and efficiency testing
• DC-to-DC power converter optimization

Included Accessories

• TPP0250 250 MHz passive probes (one per analog channel)
