Tektronix MDO34/3-BW-1000 Mixed Domain Oscilloscope

Overview

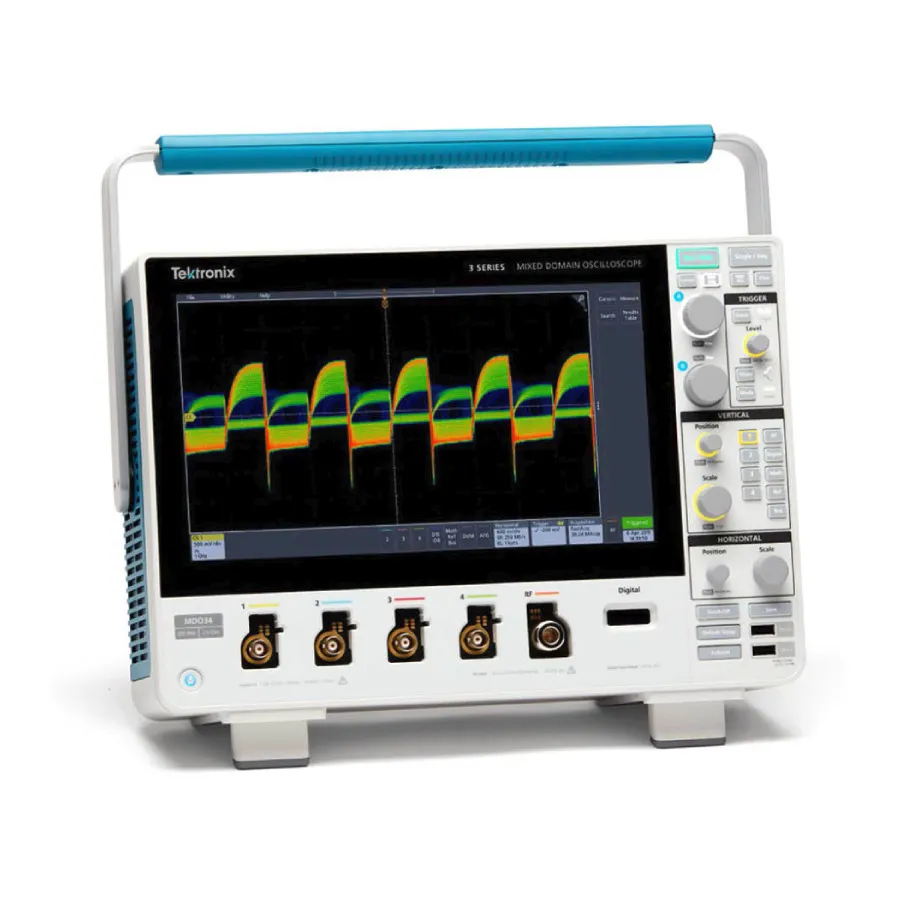

The Tektronix MDO34/3-BW-1000 is a 1 GHz, 4-channel mixed domain oscilloscope with 5 GS/s sampling rate and an integrated hardware-based spectrum analyzer. It combines analog waveform capture, digital logic analysis, and RF spectrum measurement in a single instrument with an 11.6" HD touchscreen.

Designed for engineers who need both time-domain and frequency-domain visibility, the MDO34 simplifies embedded system debugging, RF testing, and power analysis with its unique combination of capabilities in a portable, space-efficient form factor.

Key Features

• 1 GHz bandwidth analog channels with 5 GS/s maximum sample rate
• 4 analog channels with 10M record length per channel
• 11.6" HD (1920×1080) capacitive touchscreen with intuitive touch interface
• Integrated 1 GHz hardware-based spectrum analyzer (3 GHz optional)
• FastAcq technology: over 280,000 waveforms per second capture rate
• Digital phosphor display for visualizing infrequent transients and glitches
• Optional 16 digital channels for mixed-signal analysis
• Optional 50 MHz arbitrary function generator
• Standard passive voltage probes: TPP1000 (1 GHz, 10x, 3.9 pF loading per channel)

Applications

• Embedded design and IoT system debug with support for common serial bus protocols
• Power design with automated power quality, switching loss, harmonics, and ripple measurements
• Educational use combining analog, digital, and RF measurements in one portable instrument
• Manufacturing test and troubleshooting for space-constrained production floors
• Service, installation, and field maintenance with integrated multi-domain analysis
• RF and EMI sniffing for baseband and RF signal analysis

Included Accessories

• Four TPP1000 passive voltage probes (1 GHz, 10x, one per analog channel)
• Installation and Safety Instructions manual
• Accessory bag
• Power cord
• OpenChoice Desktop Software (available for download)
• Calibration certificate with National Metrology Institute traceability
