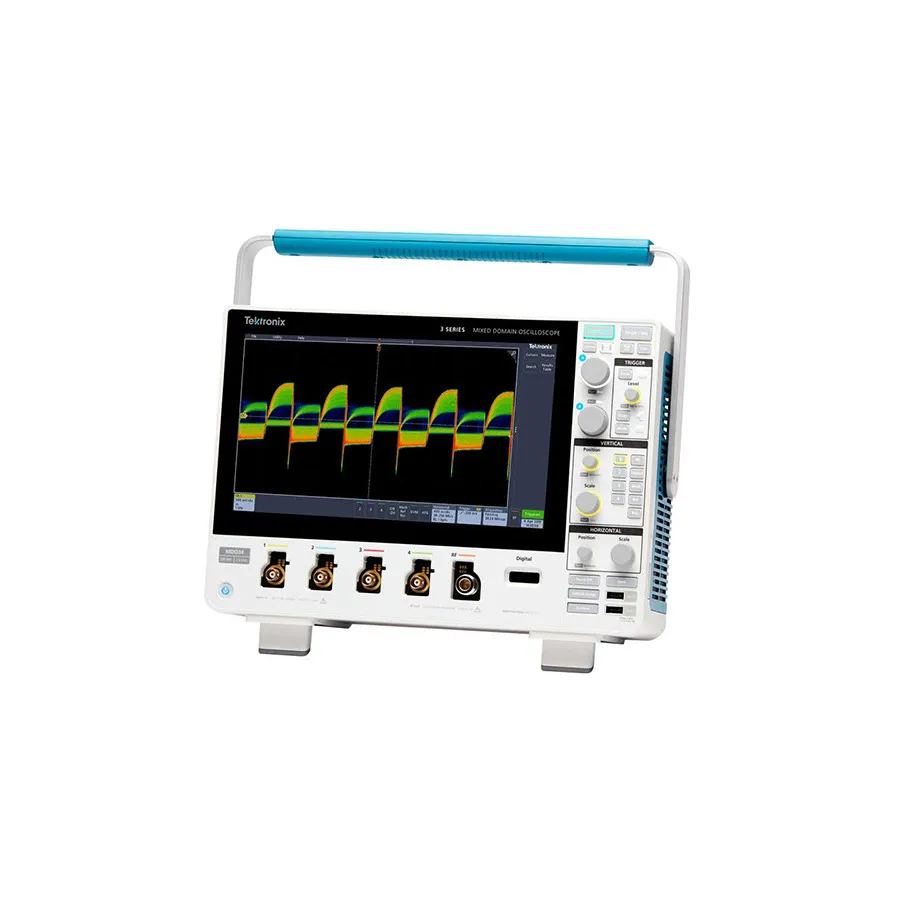

Tektronix MDO34 3-BW-500 Mixed Domain Oscilloscope

Overview

The Tektronix MDO34 3-BW-500 is a professional 4-channel mixed-domain oscilloscope with 500 MHz bandwidth and 5 Gs/s sampling rate. With an award-winning HD touchscreen interface, built-in spectrum analyzer, and integrated debugging tools, it provides comprehensive measurement capabilities for RF analysis and signal characterization in a compact, portable design.

Key Features

• 11.6-inch HD (1920x1080) capacitive touchscreen with intuitive touch-based navigation
• 4 analog channels with optional 16 digital channels for mixed-signal analysis
• 500 MHz bandwidth with 5 Gs/s maximum sampling rate and 10M record length
• 5-in-1 instrument: oscilloscope, spectrum analyzer, digital voltmeter, frequency counter, and arbitrary function generator
• 1 GHz hardware-based spectrum analyzer standard (3 GHz optional)
• 50 MHz arbitrary function generator (optional)
• Compact design: less than 5.9 inches deep, weighing 11.7 lbs
• Comprehensive serial bus decoding options for embedded system analysis

Applications

• Embedded design and IoT development with system-level debugging for mixed-signal embedded systems and common serial bus technologies
• Power design with automated measurements for power quality, switching loss, harmonics, ripple, and safe operating area analysis
• Education and laboratory experiments combining analog, digital, and RF measurements in a single compact instrument
• Manufacturing test and troubleshooting with space-efficient integration of multiple instrument functions
• Service, installation, and maintenance in field environments where portability and multi-function capability are essential

Included Accessories

• One TPP Series passive probe per channel
