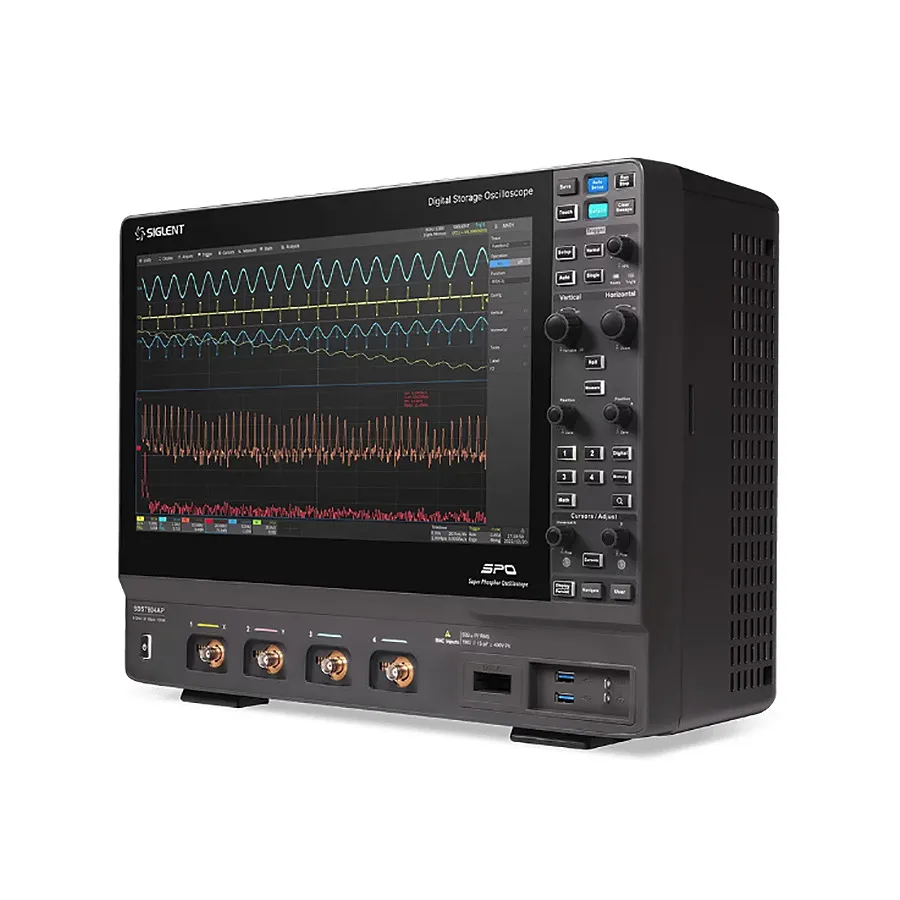

Siglent SDS7804A H12 Digital Oscilloscope
Request a quote
Siglent SDS7804A H12 is a 4-channel digital oscilloscope with 8 GHz bandwidth, 12-bit ADC, 20 GSa/s sampling, and 500 Mpts per-channel memory.
Product details
| Model | SDS7804A H12 |
| Manufacturer | Siglent |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Siglent SDS7804A H12 is a high-performance 4-channel digital storage oscilloscope designed for advanced signal analysis in demanding R&D and compliance testing environments. With an 8 GHz bandwidth, 12-bit ADC, and up to 20 GSa/s sampling rate, it delivers high-resolution waveform capture with minimal noise and signal distortion. The instrument features a 15.6" HD capacitive touchscreen and supports up to 1,000,000 waveforms per second through Siglent's Super Phosphor Oscilloscope (SPO) technology.
Key Features
- 4 analog channels with 8 GHz bandwidth and up to 20 GSa/s sampling
- 12-bit ADC with low background noise: 300 μVrms at 8 GHz, 220 μVrms at 4 GHz
- Super Phosphor Oscilloscope (SPO) technology for up to 1,000,000 waveforms per second
- Advanced triggering: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay, Video (HDTV), and Zone Trigger
- Segmented acquisition (Sequence) mode with up to 124,000 segments
- History waveform recording with up to 124,000 frame capacity
- 50+ automatic measurement parameters with statistics, histogram, and trending
- 4 Math traces with 32 Mpts FFT and formula editor
- Serial bus triggering and decoding: I2C, SPI, UART, CAN, LIN (standard); optional CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, ARINC429, Manchester, USB 2.0
- 16 digital channels via optional SPL2016 logic probe
- 15.6" HD TFT-LCD display (1920×1080) with capacitive multi-touch
- Interfaces: 4× USB 3.1 Gen 1, 2× USB 3.0, USB 2.0 Device, 2× 1000M LAN, DVI-D, DisplayPort 1.2, HDMI 1.4, Audio, External Trigger, 10 MHz In/Out
- Built-in web server with remote control via LAN and SCPI support
Applications
- R&D signal analysis and validation
- Electrical compliance and safety testing
- Mixed-signal analysis with digital channels
- Protocol decoding and bus analysis
- Power analysis and jitter measurement
Included Accessories
- SDS7804A H12 Oscilloscope
- USB Cable
- 500 MHz Passive Probe (one per channel)
- Certificate of Calibration
- Quick Start Guide
- Wireless Mouse
- Power Cord
- Protective Cover
Specifications
| Bandwidth | 8 GHz |
| Analog Channels | 4 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 20 GS/s |
| Memory | 500 Mpts |
| Vertical Resolution | 12 bit |
| Series | SDS7000A Series |
| Includes | Oscilloscope, USB Cable, Quick Start, Passive Probe (SP3150A) 1/Channel, Certificate of Calibration, Wireless Mouse, Power Cord, Protective Cover |
