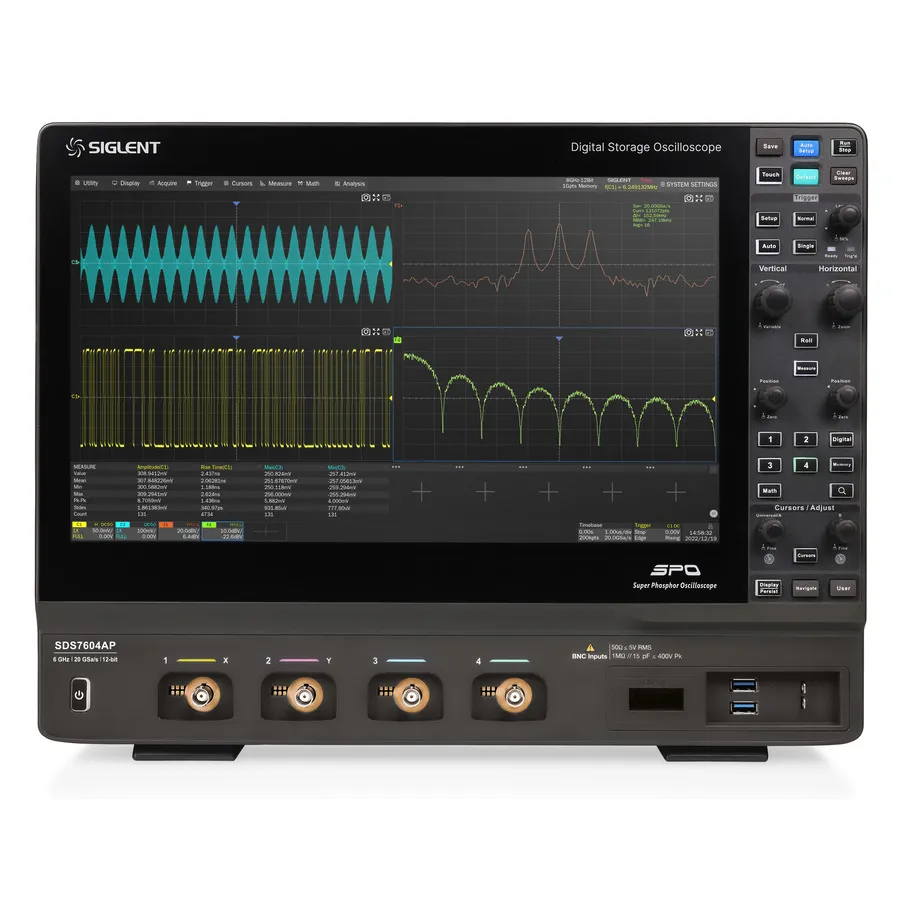

Siglent SDS7604AP Digital Oscilloscope

Overview

The Siglent SDS7604AP is a high-performance 6 GHz mixed-signal digital storage oscilloscope designed for advanced signal analysis in R&D and compliance testing environments. It features a 12-bit ADC with up to 20 GSa/s sampling rate on all channels and optional memory expansion up to 2 Gpts per channel. The SDS7604AP employs Siglent's SPO technology for up to 1,000,000 waveforms per second capture rate with a 256-level intensity grading display.

The oscilloscope includes a 15.6" HD capacitive touchscreen (1920 x 1080) with multi-touch gesture support and remote web control via LAN. It provides comprehensive serial bus decoding (I2C, SPI, UART, CAN, LIN standard; optional CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, ARINC429, Manchester, and USB 2.0) and optional advanced analysis including eye/jitter analysis and compliance testing.

Key Features

• 4 analog channels with 6 GHz bandwidth and up to 20 GSa/s sample rate on all channels
• 12-bit ADC with low background noise: 300 μVrms at 8 GHz bandwidth, 220 μVrms at 4 GHz bandwidth
• Standard memory: 1 Gpts/ch (1 or 2 channels), 500 Mpts/ch (3 or 4 channels); optional up to 2 Gpts/ch
• SPO technology with up to 1,000,000 waveforms per second and 256-level intensity grading
• Advanced triggering: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay, Video, and Zone Trigger
• Segmented acquisition (Sequence) mode with up to 124,000 segments and minimal dead time
• History waveform recording with up to 124,000 frames
• Automatic measurements on 50+ parameters with statistics (histogram, track, trend), gating, and measurements on Math, History, and Memory traces
• 4 Math traces with 32 Mpts FFT, Filter, addition, subtraction, multiplication, division, integration, differential, square root with formula editor
• Data analysis functions: Search, Navigate, SignalScan, Digital Voltmeter, Counter, Waveform Histogram, Bode plot
• Serial bus triggering and decoding for I2C, SPI, UART, CAN, LIN (standard) and optional protocols
• 16 digital channels (SPL2016 logic probe sold separately)
• Multiple interfaces: 4x USB 3.1 Gen 1, 2x USB 3.0 Host, USB 2.0 Device, 2x 1000M LAN, DVI-D, DP 1.2, HDMI 1.4, Audio, External Trigger In, Aux Out, 10 MHz In/Out
• Built-in web server for remote control via web browser and SCPI commands
• Upgraded x86-based processor platform for enhanced responsiveness and performance
• Optional 50 MHz waveform generator (SDS7000A-FG) and Spectrum Analyzer mode

Applications

• High-frequency digital signal analysis and debugging
• Mixed-signal testing (analog and digital channels simultaneously)
• Protocol decoding and verification (I2C, SPI, UART, CAN, LIN, and optional protocols)
• Signal integrity and compliance testing (2.5G/5G/10GBase-T Ethernet, MIPI-DPHY)
• Eye and jitter analysis for high-speed signals
• Production testing and quality assurance
• Research and development applications

Included Accessories

• SDS7604AP Oscilloscope
• 500 MHz Passive Probe, 1 per channel
• USB Cable
• Quick Start Guide
• Certificate of Calibration
• Wireless Mouse
• Power Cord
• Protective Cover
