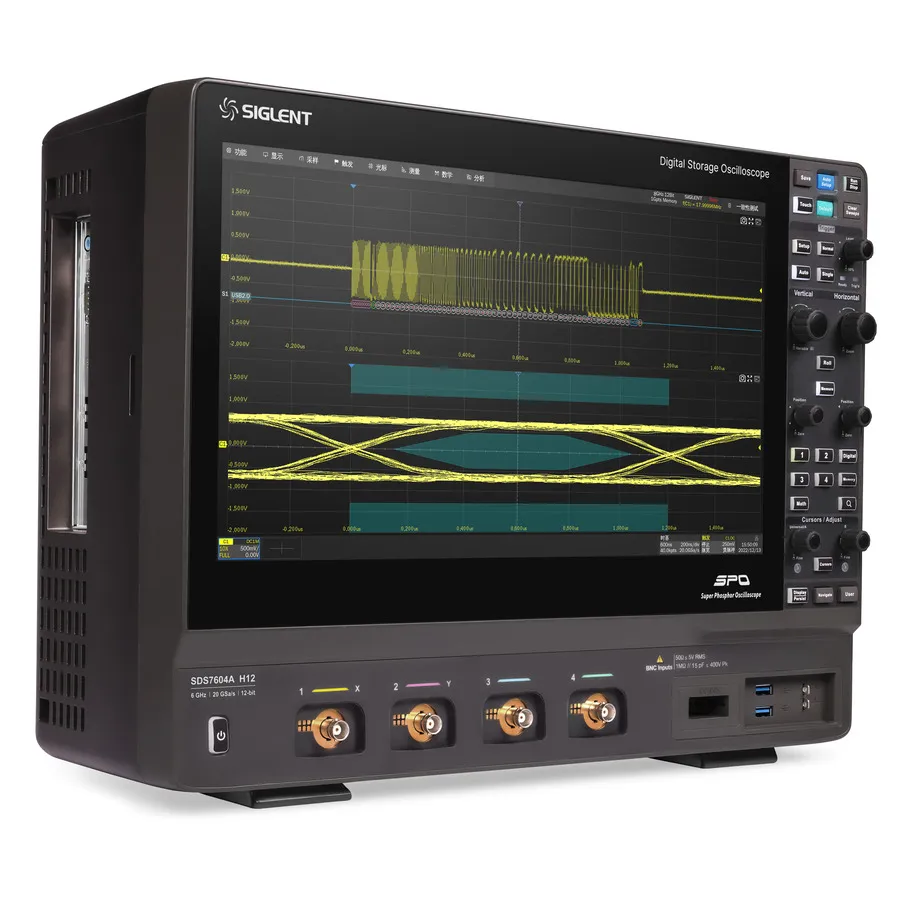

Siglent SDS7604A H12 Digital Oscilloscope

Overview

The Siglent SDS7604A H12 is a 6 GHz digital oscilloscope part of the SDS7000A series. It features a 12-bit ADC with a sample rate of up to 20 GSa/s and a standard memory depth of 500 Mpts/ch. The oscilloscope employs Siglent's SPO technology with a maximum waveform capture rate of up to 1,000,000 wfm/s, enabling rapid signal analysis with minimal dead time.

The large 15.6-inch HD capacitive touch screen supports multi-touch gestures and features a user-friendly UI design that improves operational efficiency. The oscilloscope supports mouse control and remote web control over LAN.

Key Features

• 6 GHz bandwidth with 4 analog channels
• 12-bit ADC with 20 GSa/s real-time sampling rate on all channels
• Memory depth: 500 Mpts/ch (expandable to 1 Gpts/ch via option SDS7000A-1GPTS)
• Waveform capture rate: up to 1,000,000 wfm/s with SPO technology
• 15.6-inch HD capacitive touch screen (1920 x 1080) with multi-touch gesture support
• Automatic measurements on 50+ parameters
• Serial bus protocols included: I2C, SPI, UART, CAN, and LIN
• Optional features: 16 digital channels (via SPL2016 logic probe and SDS7000A-16LA software), 50 MHz arbitrary waveform generator (via SDS7000A-FG)
• 256-level intensity grading display with color temperature display mode
• Advanced triggering with high sensitivity and low jitter

Applications

• Digital circuit analysis and debugging
• Signal integrity testing
• Protocol decoding and verification (I2C, SPI, UART, CAN, LIN)
• Research and development
• Production testing and quality control

Included Accessories

• Oscilloscope unit
• Passive Probe (SP3150A), 1 per channel
• USB Cable
• Quick Start Guide
• Certificate of Calibration
• Wireless Mouse
• Power Cord
• Protective Cover
