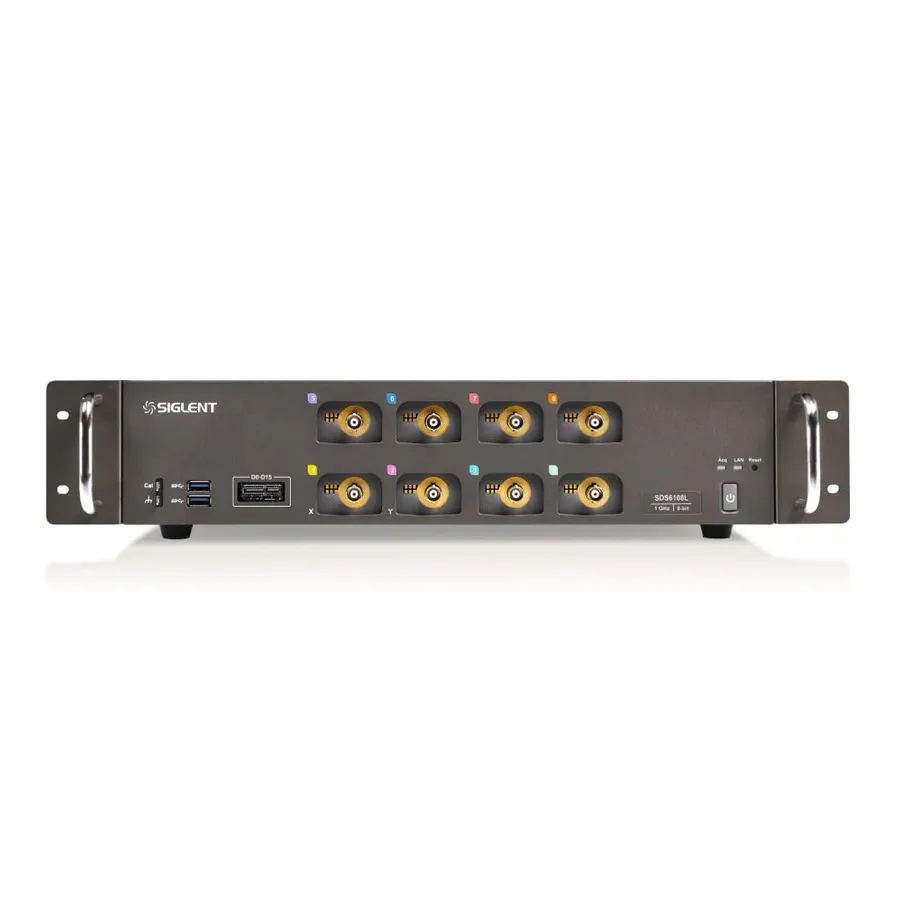

Siglent SDS6108L Digital Storage Oscilloscope

Overview

The Siglent SDS6108L is an 8-channel 1GHz low-profile digital storage oscilloscope designed for high-speed signal analysis and testing. It provides up to 8 analog channels plus 16 optional digital channels in a space-saving chassis, making it ideal for complex mixed-signal applications and expandable multi-channel acquisition systems.

With a maximum sample rate of 5 GSa/s (10 GSa/s ESR), 500 Mpts record length, and waveform capture rates up to 170,000 waveforms per second in normal mode (750,000 wfm/s in Sequence mode), this oscilloscope excels at capturing and analyzing transient events and rapid signal variations.

Key Features

• 8 analog channels plus 1 external trigger input, expandable to 512 channels via synchronization distributor
• 1 GHz bandwidth with 5 GSa/s (10 GSa/s ESR) sample rate per channel and 0.5 mV/div to 10 V/div vertical sensitivity
• SPO technology with 256-level intensity grading and color temperature display modes
• Intelligent triggering: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/Hold, Delay, and Video triggering
• Serial bus decoding for I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, and Manchester protocols
• History waveform recording with up to 80,000 frames maximum length
• 50+ automatic measurements with statistics, histogram, track, trend, and gating capabilities
• 4 Math traces with 8 Mpts FFT, formula editor, and extensive math operations
• 25 MHz arbitrary waveform generator with multiple predefined waveforms
• Multiple interfaces: USB Host/Device (USBTMC), 1000M LAN (VXI-11/Telnet/Socket), micro SD card, HDMI, and 10 MHz I/O

Applications

• Digital and analog circuit debugging and verification
• Signal integrity and timing analysis
• Power electronics and power delivery network testing
• High-speed serial protocol analysis and debugging
• Educational and R&D applications in electronics engineering
• Manufacturing and automated test environments
