Siglent SDS6104A Digital Storage Oscilloscope
Request a quote

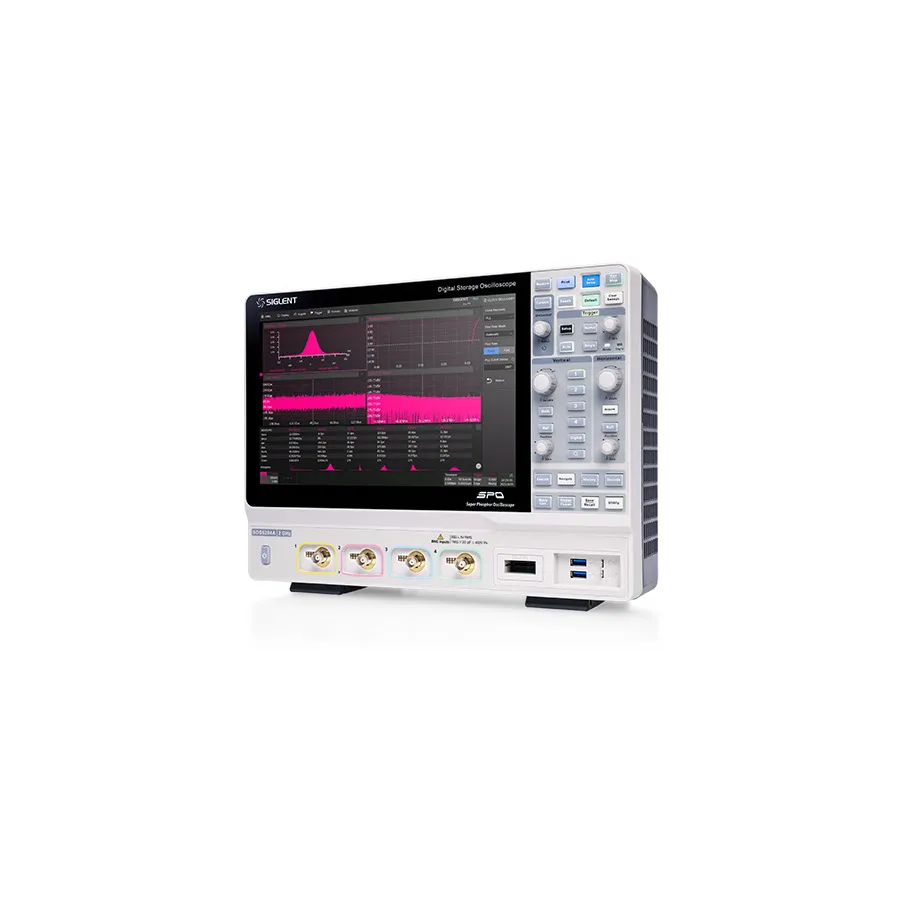

Siglent SDS6104A is a 4-channel 1GHz digital storage oscilloscope with 5 GSa/s sample rate, 500 Mpts memory, and 12.1" capacitive touchscreen for intuitive operation.
Product details
| Model | SDS6104A |
| Manufacturer | Siglent |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Siglent SDS6104A is a 4-channel 1GHz digital storage oscilloscope in the SDS6000A series, featuring a large 12.1" capacitive touchscreen with multi-touch gesture support for intuitive operation. With 5 GSa/s sample rate, 500 Mpts record length, and advanced measurement capabilities, it delivers high-performance signal analysis for demanding applications.
Key Features
- 4 analog channels with 1GHz bandwidth and 5 GSa/s sample rate (10 GSa/s ESR) per channel
- Low background noise with vertical scales from 0.5 mV/div to 10 V/div
- Large 12.1" capacitive touchscreen display (1280 x 800 resolution) with multi-touch gestures
- SPO technology with up to 170,000 waveforms/s capture (normal mode) and 750,000 wfm/s (sequence mode)
- 256-level intensity grading and color temperature display modes
- 500 Mpts total record length
- Intelligent trigger modes: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay, and Video (HDTV)
- Serial bus triggering and decoding: I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester
- Segmented acquisition (Sequence) mode with up to 80,000 segments
- History waveform recording up to 80,000 frames
- Over 50 automatic measurements with histogram, track, trend, and gating analysis
- 4 Math traces with 8 Mpts FFT and formula editor support
- Advanced analysis: Search, Navigate, Digital Voltmeter, Counter, Waveform Histogram, Bode Plot, Power Analysis, Eye/Jitter Analysis
- Hardware-based averaging and high-resolution modes
- Mask Test with user-defined mask editor
- Optional 16 digital channels for mixed-signal analysis
- 25 MHz arbitrary waveform generator with predefined waveforms
- Interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket), micro SD, Pass/Fail, Trigger Out, HDMI
- Built-in web server and SCPI support for remote control via web browser; external mouse and keyboard support
Applications
- High-speed electronics design and verification
- Serial protocol debugging and analysis
- Power electronics and signal integrity testing
- Educational and training applications
- Automated test systems via SCPI
- Field service and troubleshooting
Specifications
| Bandwidth | 1 GHz |
| Analog Channels | 4 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 5 GS/s |
| Memory | 500 Mpts |
| Type | DSO |
| Vertical Resolution | 8 bit |
| Display Type | 12.1 TFT LCD Capacitive Color Touch |
| Series | SDS6000A Series |
