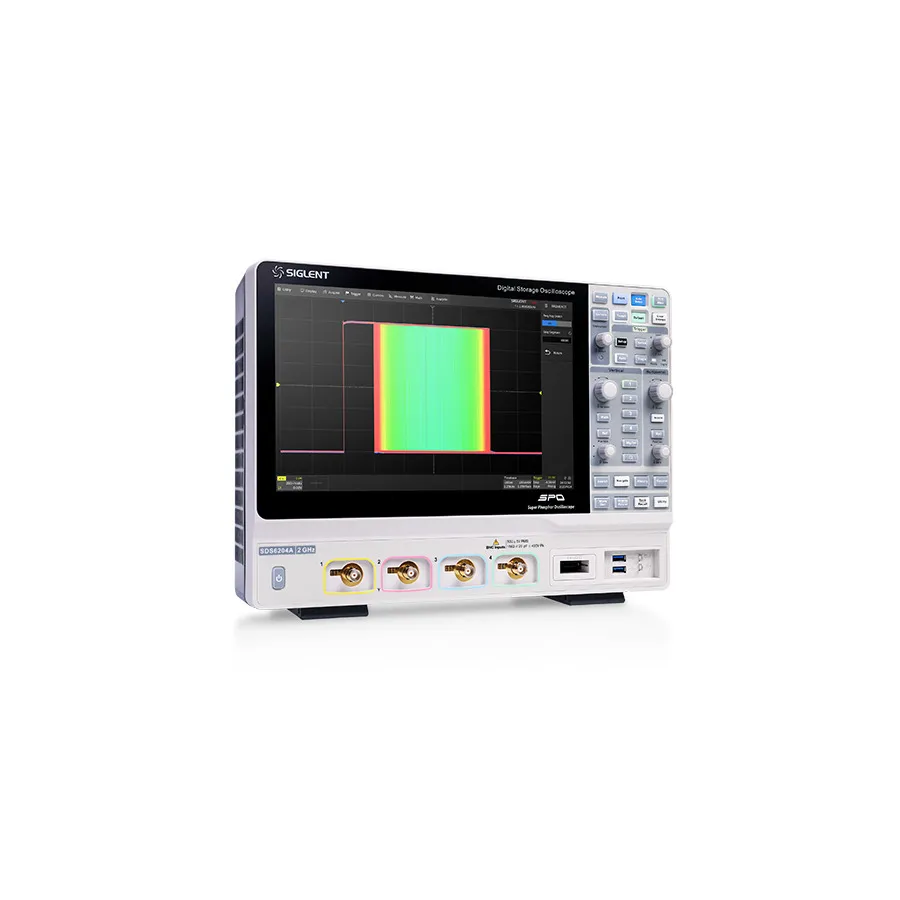

Siglent SDS6054A Digital Oscilloscope

Overview

The Siglent SDS6054A is a 4-channel digital oscilloscope with 500MHz bandwidth and 5GS/s sample rate (10GS/s ESR at each channel). It features a large 12.1" capacitive touchscreen with 1280x800 resolution supporting multi-touch gestures. With up to 500Mpts memory depth per channel and waveform capture rates up to 170,000 wfm/s (750,000 in Sequence mode), the SDS6054A provides comprehensive signal analysis capabilities for diverse applications.

Key Features

• 4 analog channels with 500MHz bandwidth
• Sample rate: 5GS/s (10GS/s ESR) at each channel
• 500Mpts record length per channel
• 170,000 waveform/s capture rate (750,000 in Sequence mode)
• 12.1" capacitive touchscreen with 1280x800 resolution
• SPO (Siglent Performance Optimization) technology
• 256-level intensity grading and color temperature display
• 16 digital channels available (optional)
• Advanced triggers: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay, Video
• Serial bus triggering and decoding: I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL STD 1553B, SENT, Manchester
• Segmented acquisition (Sequence) mode with up to 80,000 segments
• History waveform recording: up to 80,000 frames
• 50+ automatic measurements with statistics
• 4 Math traces with 8Mpts FFT
• Search, Navigate, Waveform Histogram, Bode plot, Power Analysis, Eye/Jitter Analysis
• Hardware-based Average and Hi Res modes
• Mask Test with custom Mask Editor
• 25MHz function/arbitrary waveform generator
• Built-in web server for remote LAN control
• SCPI remote control support

Applications

• General-purpose signal measurement and analysis
• Mixed-signal testing with digital channel support
• Power supply and power device characterization
• Serial protocol debugging and validation
• High-speed digital signal analysis
• Aerospace and avionics system testing
