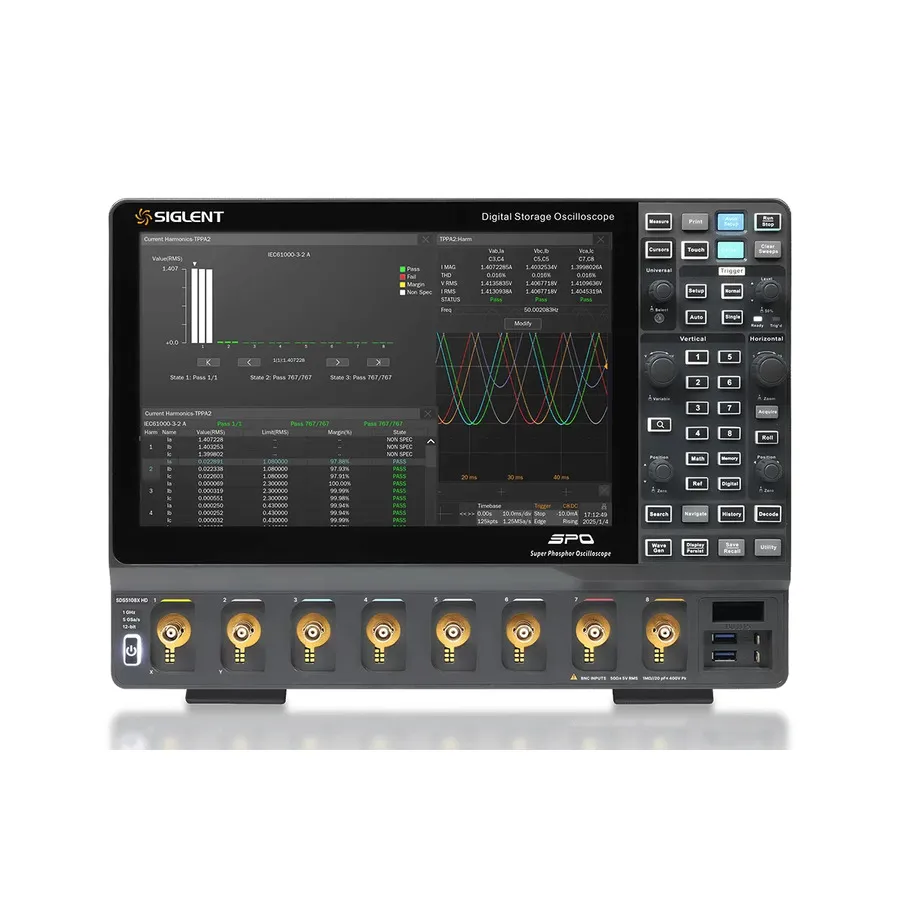

Siglent SDS5108X HD 8-Channel Digital Oscilloscope
Request a quote
Siglent SDS5108X HD is an 8-channel benchtop oscilloscope with 1 GHz bandwidth, 5 GSa/s sampling, 12-bit resolution, and an intuitive touchscreen interface for advanced signal analysis.
Product details
| Model | SDS5108X HD |
| Manufacturer | Siglent |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Siglent SDS5108X HD is a benchtop digital oscilloscope featuring high-resolution 12-bit ADC and 8 analog channels with 1 GHz bandwidth. With 5 GSa/s sampling rate and up to 2.5 Gpts memory depth, it delivers exceptional signal clarity. The 12.1-inch capacitive touchscreen, multi-window display, and comprehensive software tools make it ideal for complex measurement workflows in laboratory and industrial environments.
Key Features
- 8 analog channels with 1 GHz bandwidth and 5 GSa/s maximum sampling rate
- 12-bit ADC resolution with up to 2.5 Gpts memory depth per channel
- 12.1-inch capacitive touchscreen display (1280x800 resolution)
- Waveform capture rate up to 160,000 wfm/s in normal mode and 650,000 wfm/s in sequence mode
- Low noise floor of 140 μVrms at 1 GHz bandwidth (typical)
- 256-level intensity grading and color temperature display modes
- Advanced triggering: edge, slope, pulse, window, pattern, and video (HDTV) modes
- Serial bus decoding for I2C, SPI, UART, CAN, LIN (standard) and CAN FD, FlexRay, I2S, MIL-STD-1553B (optional)
- History recording with up to 170,000 waveform frames
- 60+ automatic measurements with histogram and statistical analysis
- 8 math traces with FFT, filtering, integration, differentiation, and custom formulas
- Segmented acquisition mode for capturing multiple events with minimal dead time
- Abundant analysis tools: Search, Navigate, Bode plot, Power analysis, Mask testing
- Optional MSO (16 digital channels at 1.25 GSa/s max) and AWG capabilities
- Comprehensive connectivity: USB 3.0/2.0, 1000M LAN, HDMI, USBTMC, external trigger, 10 MHz in/out
- Built-in web server for remote control and SCPI command support
Applications
- General-purpose signal analysis and circuit debugging
- Wide bandgap semiconductor testing (SiC and GaN devices)
- Power electronics and power quality analysis
- Serial protocol debugging and verification
- Signal integrity and transient analysis
- Research and educational applications
Included Accessories
- 8 passive probes (1 per channel)
- USB cable
- Quick start guide
- Certificate of calibration
- Wireless mouse
- Power cord
Specifications
| Bandwidth | 1 GHz |
| Analog Channels | 8 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 5 GS/s |
| Memory | 2.5 Gpts |
| Type | DSO |
| Vertical Resolution | 12 bit |
| Display Type | 12.1 Capacitive Touch |
| Series | SDS5000X HD Series |
| Includes | USB cable, Quick Start, Passive Probe 500MHz 1/CH, Passive Probe, Wireless Mouse, Power Cord |
| Interface | USB, LAN, HDMI |
| Record Length | 250 Mpts |
