Siglent SDS5106X HD Digital Oscilloscope
Request a quote
Siglent SDS5106X HD is a 12-bit, 1 GHz, 6-channel oscilloscope with 5 GSa/s sampling, 12.1-inch HD touchscreen, and advanced measurement and analysis capabilities.
Product details
| Model | SDS5106X HD |
| Manufacturer | Siglent |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview

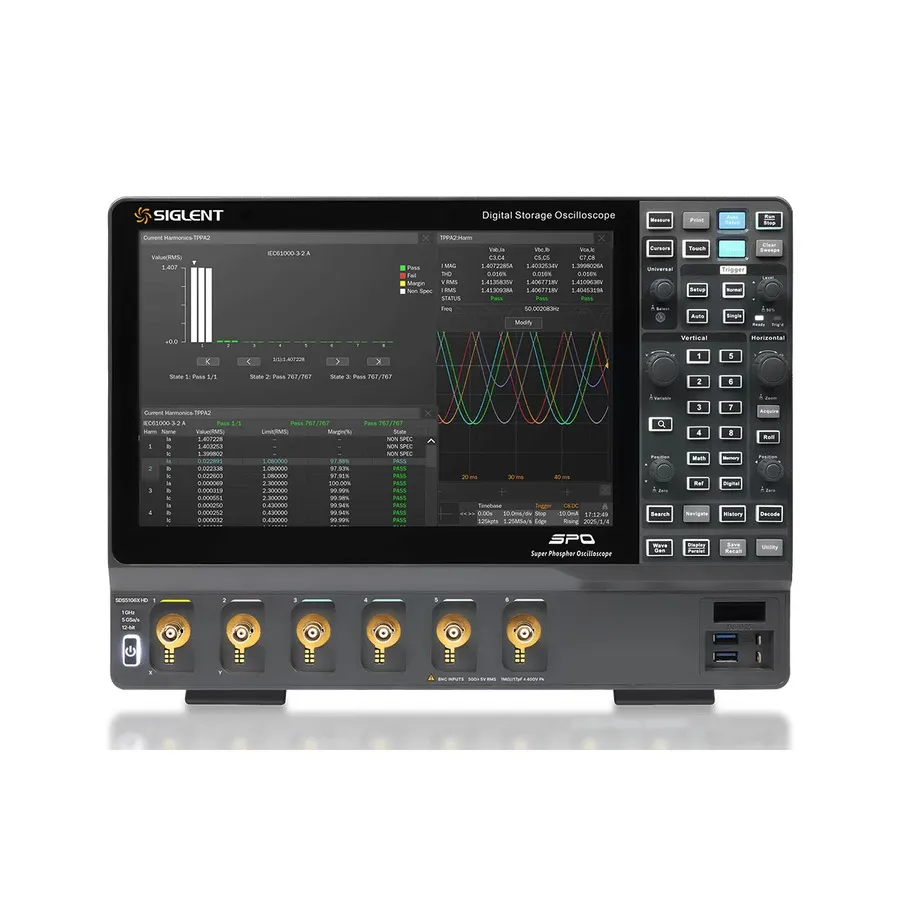

The Siglent SDS5106X HD is a 12-bit, high-resolution, 6-channel digital storage oscilloscope designed for advanced signal analysis. With 1 GHz bandwidth, 5 GSa/s sampling rate, and up to 2.5 Gpts memory depth per channel, it provides exceptional signal clarity and capture capability. The 12.1-inch HD capacitive touchscreen and comprehensive analysis tools make it ideal for complex measurement tasks in research, design, and verification workflows.
Key Features
- 1 GHz bandwidth with up to 5 GSa/s real-time sampling rate
- 12-bit ADC (Analog-to-Digital Converter) for high-resolution measurement
- 6 analog channels plus 1 external trigger input
- Up to 2.5 Gpts waveform memory per channel
- 160,000 waveform captures per second (650,000 in sequence mode)
- Low noise floor: 140 μVrms @ 1 GHz bandwidth
- 12.1-inch HD capacitive touchscreen with multi-window display
- Over 60 parameter measurements with statistics, histogram, and trending
- Serial bus triggering and decoding: I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester, ARINC429
- Advanced triggering: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth Edge, Setup/Hold, Delay, Video
- 8 math traces with FFT, filtering, and user-defined formulas
- Optional 16-channel digital input for extended mixed-signal analysis
- Connectivity: USB 3.0 Host, USB Device, Gigabit LAN, HDMI, external trigger, 10 MHz reference
- WebServer remote control and SCPI command support
Applications
- Advanced signal analysis and characterization
- Multi-channel signal comparison and correlation
- Power supply and power electronics testing
- Serial protocol analysis and embedded system debugging
- Wide bandgap semiconductor (SiC, GaN) testing with fast rise time capture
- Three-phase power measurement and analysis
- Research and educational applications
Included Accessories
- 1 passive probe per channel (6 total)
- USB cable
- Wireless mouse
- Quick start guide
- Certificate of calibration
- Power cord
Specifications
| Bandwidth | 1 GHz |
| Analog Channels | 6 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 5 GS/s |
| Memory | 2.5 Gpts |
| Type | DSO |
| Vertical Resolution | 12 bit |
| Display Type | 12.1 Capacitive Touch |
| Series | SDS5000X HD Series |
| Includes | USB cable, Quick Start, Passive Probe 500MHz 1/CH, Passive Probe, Wireless Mouse, Power Cord |
| Interface | USB, LAN, HDMI |
| Record Length | 250 Mpts |
