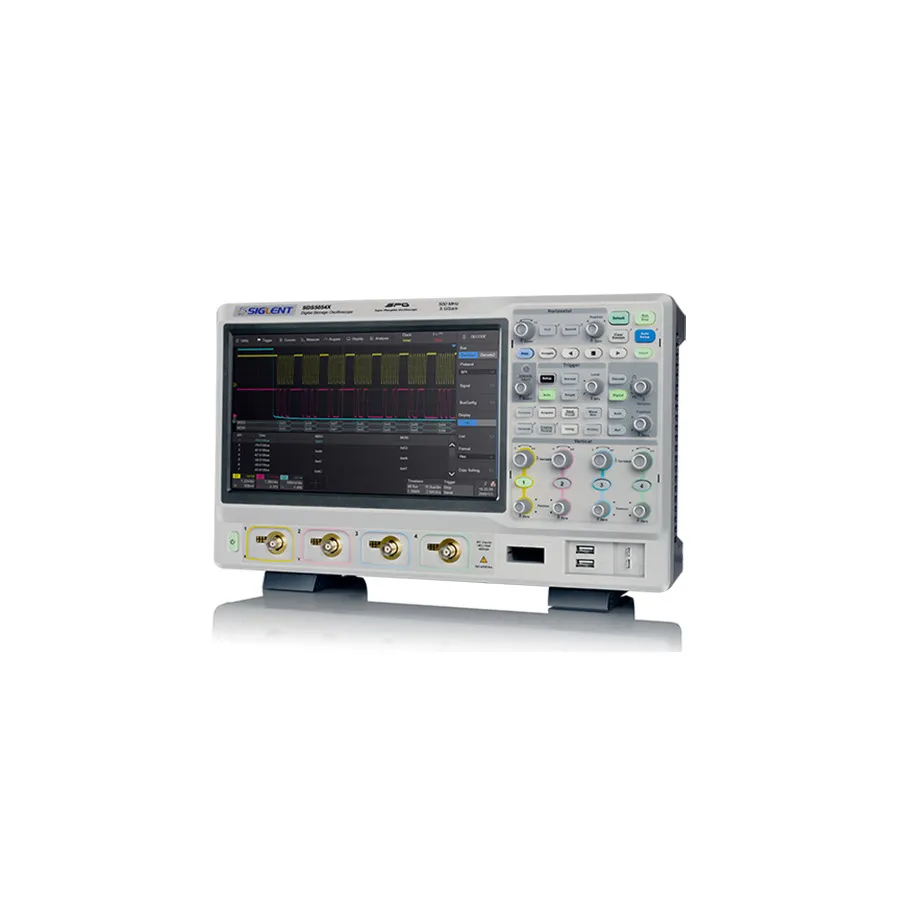

Siglent SDS5054X Digital Oscilloscope

Overview

The Siglent SDS5054X is a 500 MHz, 4-channel digital storage oscilloscope designed for comprehensive signal analysis. It features a 10.1-inch capacitive touchscreen with multi-touch support, 5 GSa/s real-time sampling rate, and up to 250 Mpts memory depth per channel. The oscilloscope provides advanced triggering, serial protocol decoding, and measurement capabilities suitable for design verification, troubleshooting, and laboratory testing.

Key Features

• 500 MHz bandwidth with 4 analog + external trigger channel
• 5 GSa/s real-time sampling rate with 250 Mpts memory depth
• 110,000 wfm/s capture rate (normal mode) and 500,000 wfm/s (sequence mode)
• 10.1-inch TFT-LCD capacitive touchscreen with 1024×600 resolution
• Serial bus triggering and decoding for I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B
• Over 55 parameter measurements with advanced measurement functions
• Multi-touch gestures, mouse and keyboard support for intuitive operation
• Remote control via web server and SCPI commands
• Integrated functionality: logic analyzer, AWG, template test, digital multimeter, Bode plot, power analysis

Applications

• Digital circuit design verification and debugging
• Serial communication protocol analysis and troubleshooting
• Power electronics and signal integrity testing
• Educational and research laboratory work
• Embedded system development and validation

Included Accessories

• Passive probe - 1 per channel (4 total)
• USB cable
• Power cord
• Quick start guide
• Certificate of calibration
