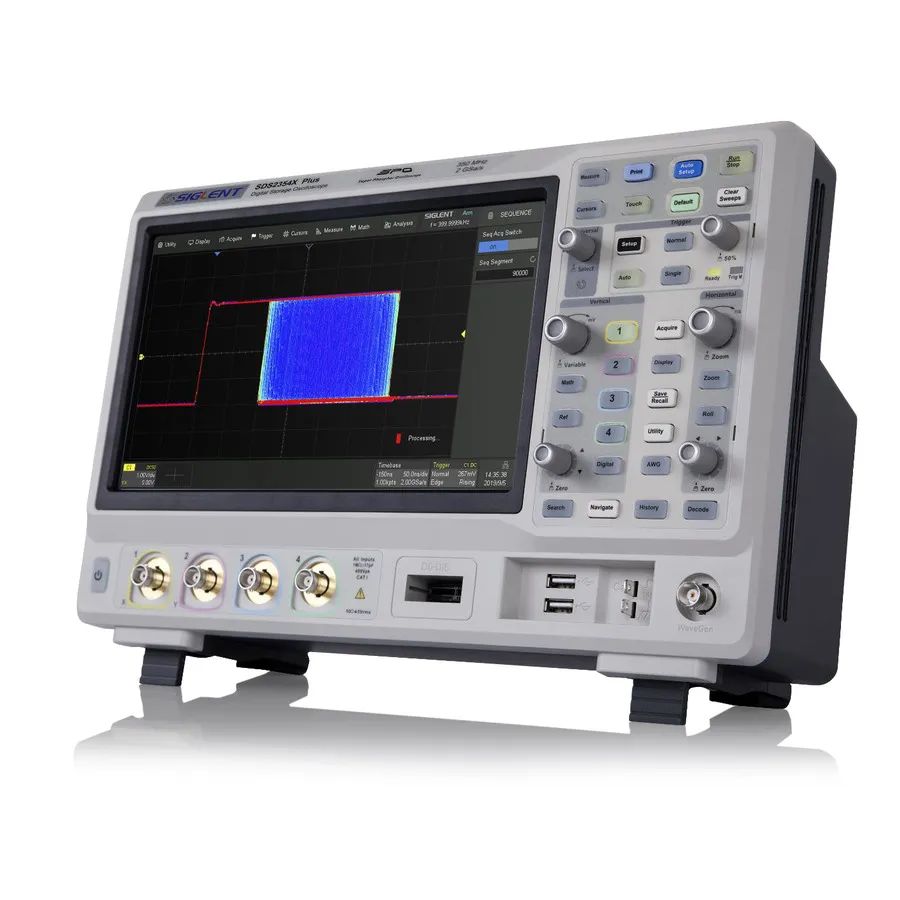

Siglent SDS2354X Plus Super Phosphor Oscilloscope

Overview

The Siglent SDS2354X Plus is a 4-channel, 350 MHz super phosphor oscilloscope representing the third generation of Siglent's 2000 series. Offering 2 GSa/s sampling, 200 Mpts/ch memory depth, and advanced triggering capabilities, it is designed for general-purpose laboratory applications requiring high-performance signal analysis.

Key Features

• 350 MHz bandwidth (upgradable to 500 MHz)
• 4 + EXT channels; 16 digital channels optional
• 2 GSa/s real-time sampling; 1 GSa/s non-interleaving mode
• 200 Mpts/ch memory depth
• 8-bit vertical resolution; 10-bit mode with improved noise floor
• 120,000 wfm/s capture rate (normal); 500,000 wfm/s (sequence mode)
• Serial bus triggering and decoding: I2C, SPI, UART/RS232, CAN, LIN (standard); CAN FD, FlexRay, I2S, MIL-STD-1553B (optional)
• History waveform recording up to 90,000 frames
• Dual math traces with 2 Mpts FFT and custom formula editor
• 50+ automated parameter measurements with statistics
• 10.1 inch capacitive touchscreen (1024x600) with 256-level intensity grading
• 50 MHz built-in waveform generator (optional)
• Connectivity: USB Host, USB Device, LAN, remote control via web server

Applications

• General-purpose laboratory testing and signal analysis
• Embedded systems development with protocol analysis
• Power electronics and switching circuit characterization
• Automotive and industrial signal testing

Included Accessories

• 4 passive probes (SP2035A, 350 MHz)
• USB cable
• Power cord
• Calibration certificate
• Quick start guide
