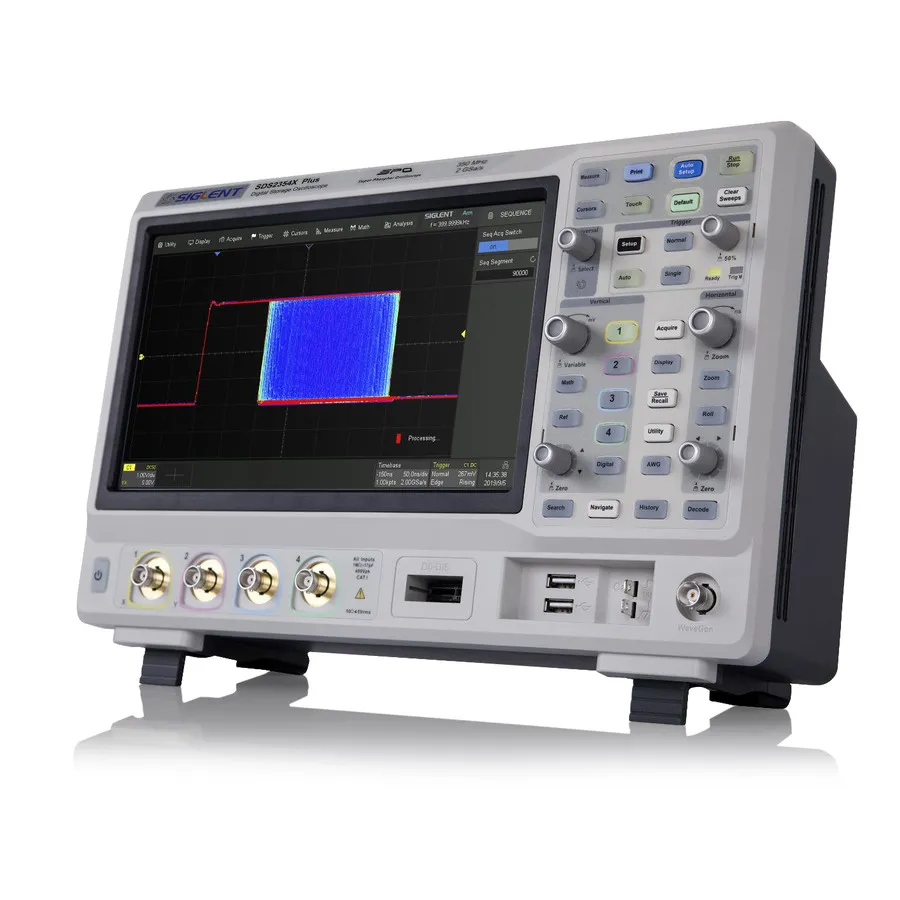

Siglent SDS2204X Plus Super Phosphor Oscilloscope

Overview

The Siglent SDS2204X Plus is the third generation of Siglent's renowned 2000 series oscilloscopes. This 4-channel, 200 MHz Super Phosphor oscilloscope combines proven performance with customer-driven enhancements, offering a feature-rich standard configuration and flexible options for general-purpose laboratory and field applications. Built on SPO technology, it delivers high-speed waveform capture and low background noise for detailed signal analysis.

Key Features

• 4 analog channels plus external trigger input; optional 16 digital channels for mixed-signal operations
• 200 MHz bandwidth with 1 GSa/s single-channel or 2 GSa/s interleaved sampling
• 200 Mpts/ch memory depth for extended waveform capture
• 8-bit vertical resolution with optional 10-bit mode for enhanced measurement accuracy
• SPO technology with 120,000 wfm/s (normal) and 500,000 wfm/s (sequence) capture rates
• 256-level intensity grading and color temperature display modes for improved signal visualization
• Low background noise with 0.5 mV/div to 10 V/div voltage scales
• History waveform recording capturing up to 90,000 triggered waveforms
• Intelligent triggering supporting Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, and Video (HDTV) modes
• Serial bus triggering and decoding for I2C, SPI, UART/RS232, CAN, LIN, with optional CAN FD, FlexRay, I2S, and MIL-STD-1553B support
• Search and Navigate functions for extended waveform analysis
• 50+ automatic measurement parameters with histogram, trend, and statistics
• 2 Math traces supporting 2 Mpts FFT, arithmetic operations, integration, differentiation, and formula editor
• Advanced analysis tools: Bode plot, Power Analysis, and Mask Test
• Optional 50 MHz built-in waveform generator
• 10.1-inch capacitive touch screen TFT-LCD display (1024×600) with multi-touch gesture support
• Connectivity: USB Host, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket), External Trigger, Auxiliary output (Trigger Out, Pass/Fail)
• Built-in web server for remote control over LAN via web browser
• Support for external mouse and keyboard

Advanced Capabilities

10-Bit Resolution Mode

The optional 10-bit mode combined with vertical and horizontal zoom enables detailed waveform analysis. Users can magnify captured signals for more accurate measurement and less visible noise, particularly useful for low-level signal investigations.

Power Loop Response Analysis (Bode Plot)

Integrated Bode plot functionality with free Bode Plot II software provides stability measurement and signal source power loop analysis. Features include higher measurement sensitivity, variable excitation scan mode, and intuitive cursor measurements.

Parameter Measurements and Statistics

Comprehensive measurement capabilities include 50+ parameter types across horizontal, vertical, miscellaneous, and channel delay categories. Gating measurements allow parameter analysis within specified time windows. Statistics display current, maximum, minimum, standard deviation, and mean values of up to 12 parameters simultaneously, with probability distribution histograms and trend analysis available.

Included Accessories

• Passive probe (200 MHz), 1 per channel
• USB cable
• Certificate of calibration
• Power cord
• Quick start guide
