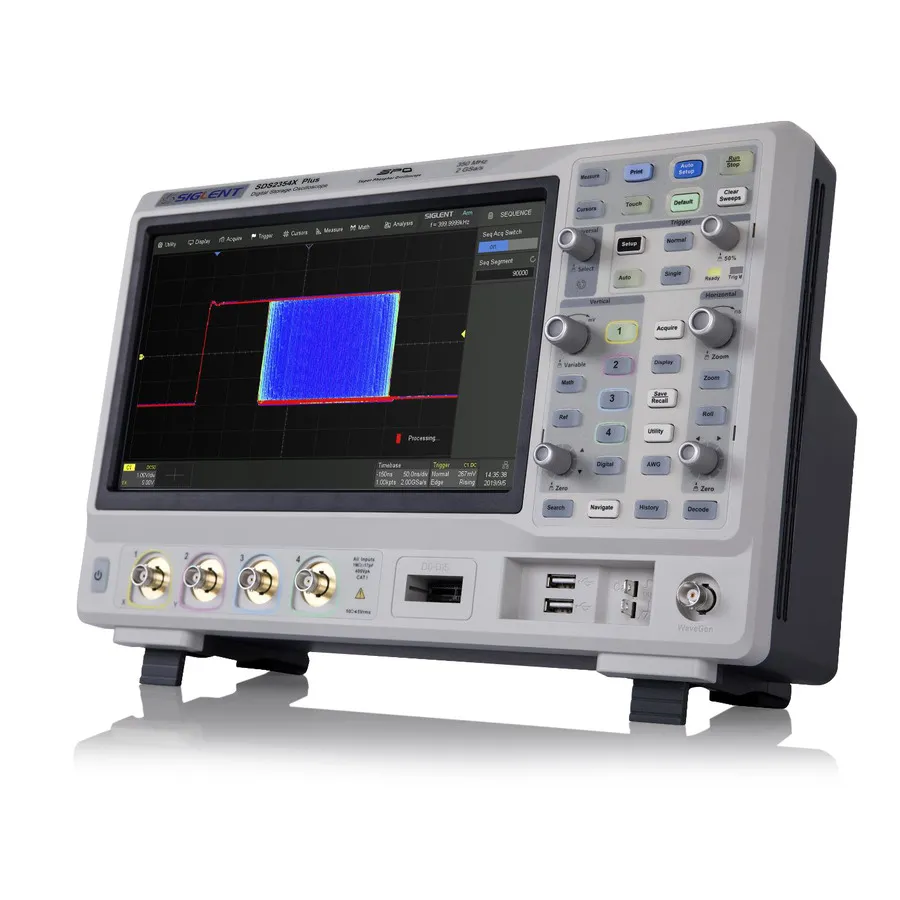

Siglent SDS2104X Plus Super Phosphor Oscilloscope

Overview

The Siglent SDS2104X Plus is a 4-channel, 100 MHz digital oscilloscope from the SDS2000X Plus series. Built on customer feedback and five years of development, this oscilloscope offers a feature-rich configuration for general-purpose lab applications and electronics analysis. It features Super Phosphor Oscilloscope (SPO) technology for detailed waveform capture and visualization.

Key Features

• 100 MHz Bandwidth with 4 analog channels plus 1 external trigger channel; 16 digital channels available as option
• 2 GSa/s sampling rate with 200 Mpts/ch memory depth
• 8-bit vertical resolution with optional 10-bit mode for enhanced detail
• Super Phosphor Oscilloscope (SPO) technology with 120,000 wfm/s normal capture and 500,000 wfm/s in sequence mode
• Advanced triggering: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay, and Video (HDTV)
• Serial bus triggering and decoding for I2C, SPI, UART/RS232, CAN, and LIN protocols (standard); CAN FD, FlexRay, I2S, MIL-STD-1553B optional
• History waveform recording for up to 90,000 triggered waveforms
• Two Math traces with 2 Mpts FFT, mathematical operations, derivatives, integrals, and formula editor
• 50+ parameter measurements with statistics, histograms, and trend analysis
• 256-level intensity grading and color temperature display modes
• 10.1-inch capacitive touch screen (1024x600) with multi-touch gestures
• Low noise design with 0.5 mV/div to 10 V/div voltage scales
• 50 MHz built-in waveform generator (optional)
• Remote control via built-in web server, LAN, USB, and external trigger/auxiliary output

Advanced Functions

• Power Loop Response Analysis: Bode Plot measurements for power supply stability analysis with adjustable excitation and scanning modes
• Search and Navigate: Extended waveform record storage and analysis capabilities
• Mask Test: Automated pass/fail testing against user-defined waveform masks
• Statistics: Real-time display of current, maximum, minimum, standard deviation, and mean values for up to 12 parameters simultaneously

Applications

• Electronics design and troubleshooting
• Signal integrity and quality analysis
• Power supply and power loop stability testing
• Serial protocol debugging and analysis
• Educational and research applications

Included Accessories

• SDS2104X Plus Oscilloscope
• 4x Passive probes (200 MHz)
• USB cable
• Power cord
• Certificate of calibration
• Quick start guide
