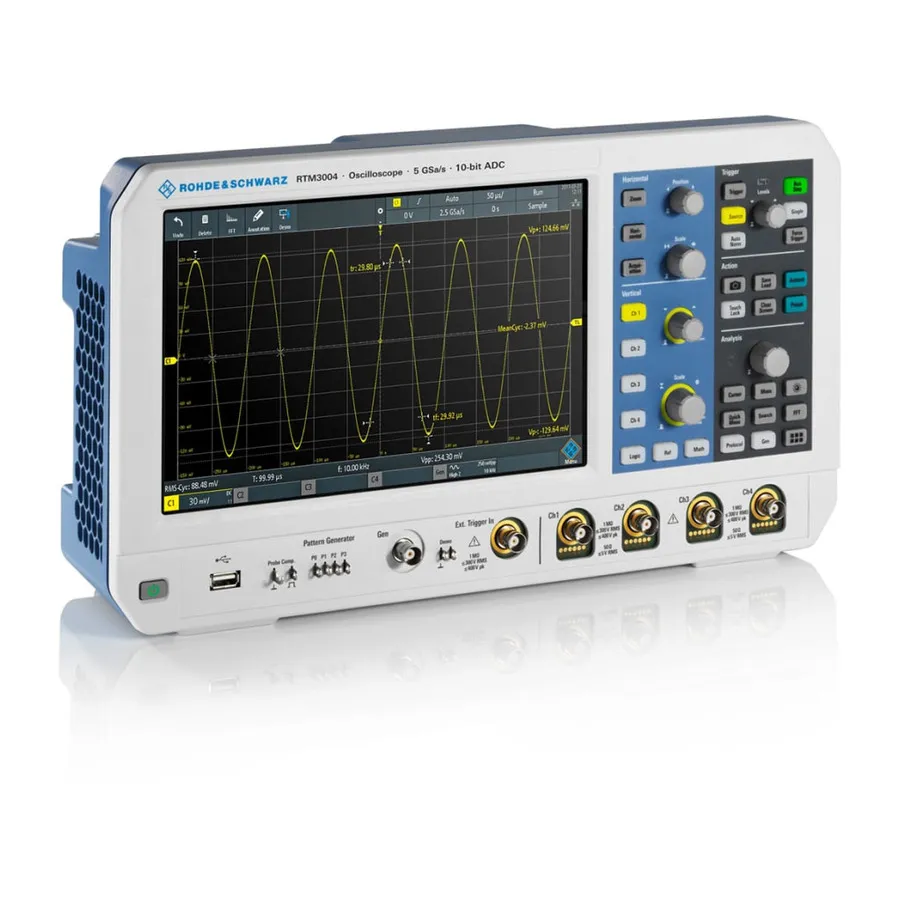

Rohde & Schwarz RTM3K-LSSB Digital Oscilloscope Package
Request a quote
Rohde & Schwarz RTM3K-LSSB 4-channel, 100MHz digital oscilloscope package with I2C/SPI, UART/RS-232 decoding and segment memory.
Product details
| Model | RTM3K-LSSB |
| Manufacturer | Rohde & Schwarz |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RTM3K-LSSB is a comprehensive 4-channel digital oscilloscope package designed for advanced signal analysis and protocol decoding. This RTM3000 series oscilloscope provides 100 MHz bandwidth and comes bundled with essential analysis options for serial bus decoding, including I2C/SPI and UART/RS-232 protocol analysis, plus history and segment memory capabilities for capturing complex signal sequences.
Key Features
- 4 analog channels with 100 MHz bandwidth
- I2C/SPI protocol decoding (RTM-K1)
- UART/RS-232 protocol decoding (RTM-K2)
- History and segment memory (RTM-K15) for capturing signal sequences
- Mixed-signal capability option (RTM-B1)
Applications
- Serial communication protocol analysis and debugging
- Embedded systems development and troubleshooting
- Electronic design and verification
Specifications
| Bandwidth | 100 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Sampling Rate | 5 GS/s |
| Memory | 40 Mpts |
| Type | MSO |
| Vertical Resolution | 10 bit |
| Display Type | 10.1 TFT Capacitive Touch |
| Series | RTM3000 Series |
| Alternate Product Number | 1335.9149P02 |
