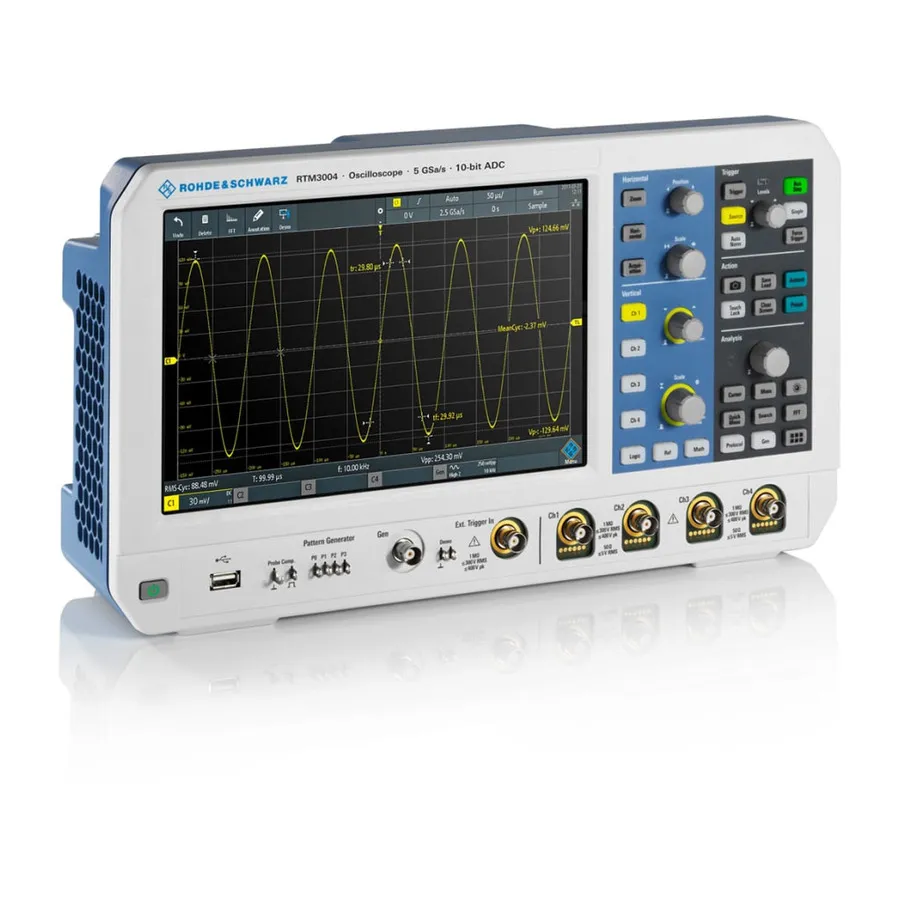

Rohde & Schwarz RTM3K-24M Digital Oscilloscope
Request a quote
Rohde & Schwarz RTM3K-24M is a 4-channel oscilloscope with 200 MHz bandwidth and mixed signal analysis (MSO) for analog and digital measurements.
Product details
| Model | RTM3K-24M |
| Manufacturer | Rohde & Schwarz |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RTM3K-24M is a 4-channel mixed signal oscilloscope package combining the RTM3004 base unit, RTM-B242 bandwidth upgrade (200 MHz), and RTM-B1 mixed signal option. This configuration enables simultaneous analog waveform and digital logic state analysis for comprehensive troubleshooting of mixed-signal designs.
Key Features
- 4-channel analog inputs with 200 MHz bandwidth
- Mixed Signal Option (RTM-B1) for digital logic analysis
- RTM3004 base oscilloscope with 100 MHz standard bandwidth
- RTM-B242 bandwidth upgrade extending capability to 200 MHz
- Simultaneous analog and digital measurement capabilities
- Advanced triggering on mixed-signal conditions
Applications
- Mixed-signal circuit debugging and validation
- Digital and analog interface analysis
- Protocol and timing measurements
- Embedded system and microcontroller development
Specifications
| Bandwidth | 200 MHz |
| Analog Channels | 4 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 5 GS/s |
| Memory | 80 Mpts |
| Type | MSO |
| Vertical Resolution | 10 bit |
| Display Type | 10.1 WXGA Capacitive Color Touch |
| Series | RTM3000 Series |
| Alternate Product Number | 1335.8794P25 |
