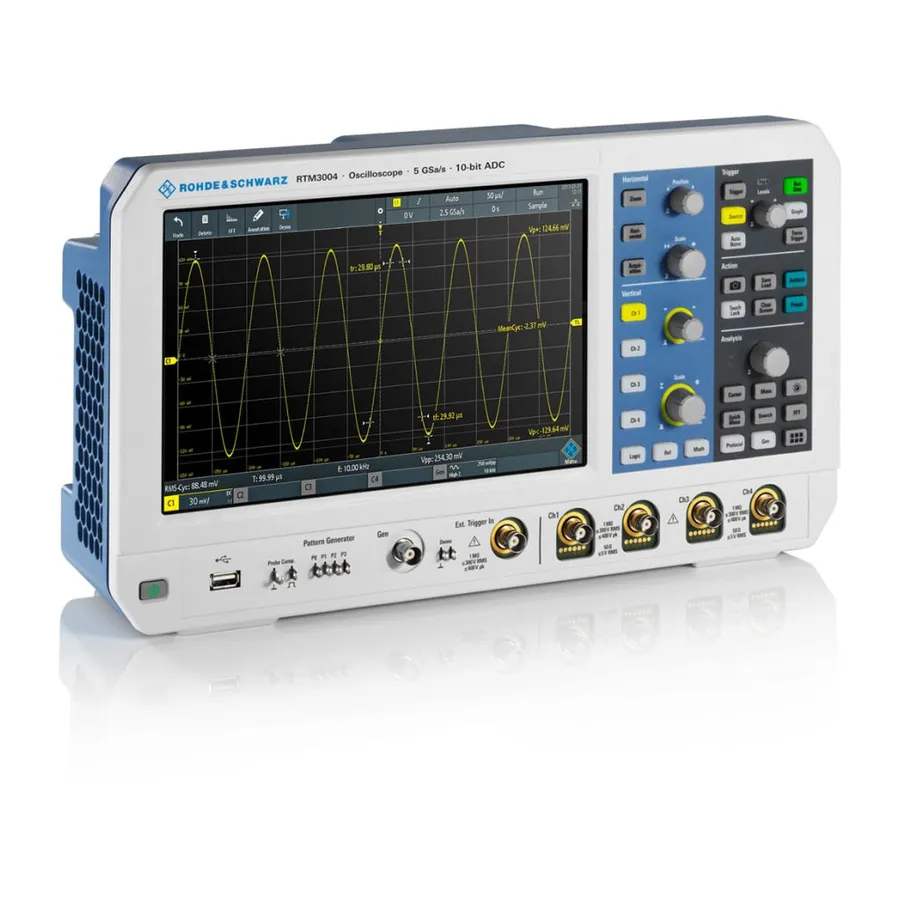

Rohde & Schwarz RTM3K-24 Digital Oscilloscope
Request a quote
Rohde & Schwarz RTM3K-24 is a 4-channel digital oscilloscope with 200 MHz bandwidth upgrade, ideal for signal analysis and troubleshooting.
Product details
| Model | RTM3K-24 |
| Manufacturer | Rohde & Schwarz |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RTM3K-24 is a 4-channel digital oscilloscope package combining the RTM3004 base unit with the RTM-B242 bandwidth upgrade module. This configuration delivers 200 MHz bandwidth for comprehensive signal analysis and troubleshooting in laboratory and field applications.
Key Features
- 4-channel analog inputs with 200 MHz bandwidth
- RTM3004 base oscilloscope with 100 MHz standard bandwidth
- RTM-B242 bandwidth upgrade module extending capability to 200 MHz
- RTM3000 series architecture for advanced triggering and analysis
- Comprehensive digital signal processing capabilities
Applications
- Signal integrity and timing analysis
- Power supply and switching circuit measurements
- Embedded system debugging
- Educational laboratory use
Specifications
| Bandwidth | 200 MHz |
| Analog Channels | 4 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 5 GS/s |
| Memory | 80 Mpts |
| Type | DSO |
| Vertical Resolution | 10 bit |
| Display Type | 10.1 WXGA Capacitive Color Touch |
| Series | RTM3000 Series |
| Alternate Product Number | 1335.8794P24 |
