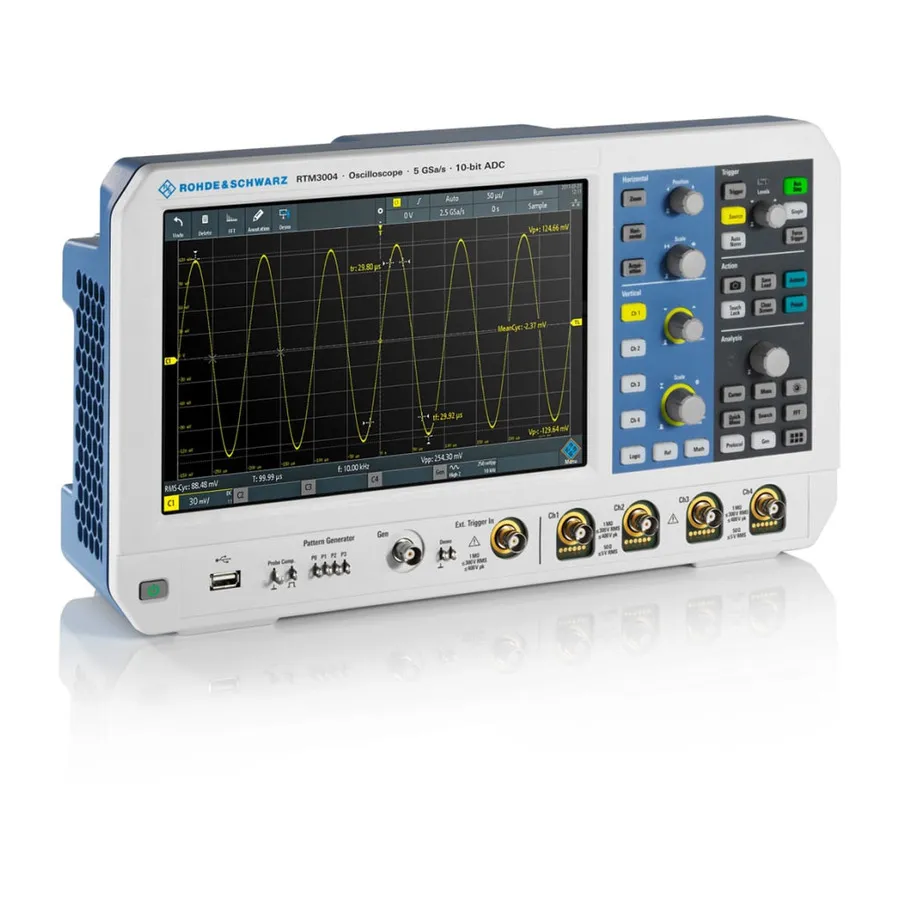

Rohde & Schwarz RTM3K-102M Digital Oscilloscope
Request a quote
Rohde & Schwarz RTM3K-102M: 2-channel 1GHz digital oscilloscope with mixed signal and bandwidth upgrade options.
Product details
| Model | RTM3K-102M |
| Manufacturer | Rohde & Schwarz |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The RTM3K-102M is a comprehensive digital oscilloscope package combining the Rohde & Schwarz RTM3002 with both the RTM-B2210 bandwidth upgrade and the RTM-B1 mixed signal option. The base 2-channel unit at 100 MHz is enhanced with 1 GHz bandwidth capability and 16 digital logic channels for complete mixed-signal analysis.
Key Features
- 2-channel analog oscilloscope with 1 GHz bandwidth capability
- 16 digital channels via mixed signal option (RTM-B1)
- Simultaneous high-speed analog and digital acquisition
- Color display for clear signal visualization
- Comprehensive measurement and analysis capabilities
Applications
- High-speed analog and digital signal analysis
- Mixed-signal system characterization and debugging
- RF and microwave circuit measurements
- Complex protocol and digital signal acquisition
Included Accessories
- RTM3002 Oscilloscope (2-channel, 100 MHz base unit)
- RTM-B2210 Bandwidth Upgrade (extends to 1 GHz)
- RTM-B1 Mixed Signal Option (16 digital logic channels)
Specifications
| Bandwidth | 1 GHz |
| Analog Channels | 2 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 5 GS/s |
| Memory | 80 Mpts |
| Type | MSO |
| Vertical Resolution | 10 bit |
| Display Type | 10.1 WXGA Capacitive Color Touch |
| Series | RTM3000 Series |
| Alternate Product Number | 1335.8794P63 |
