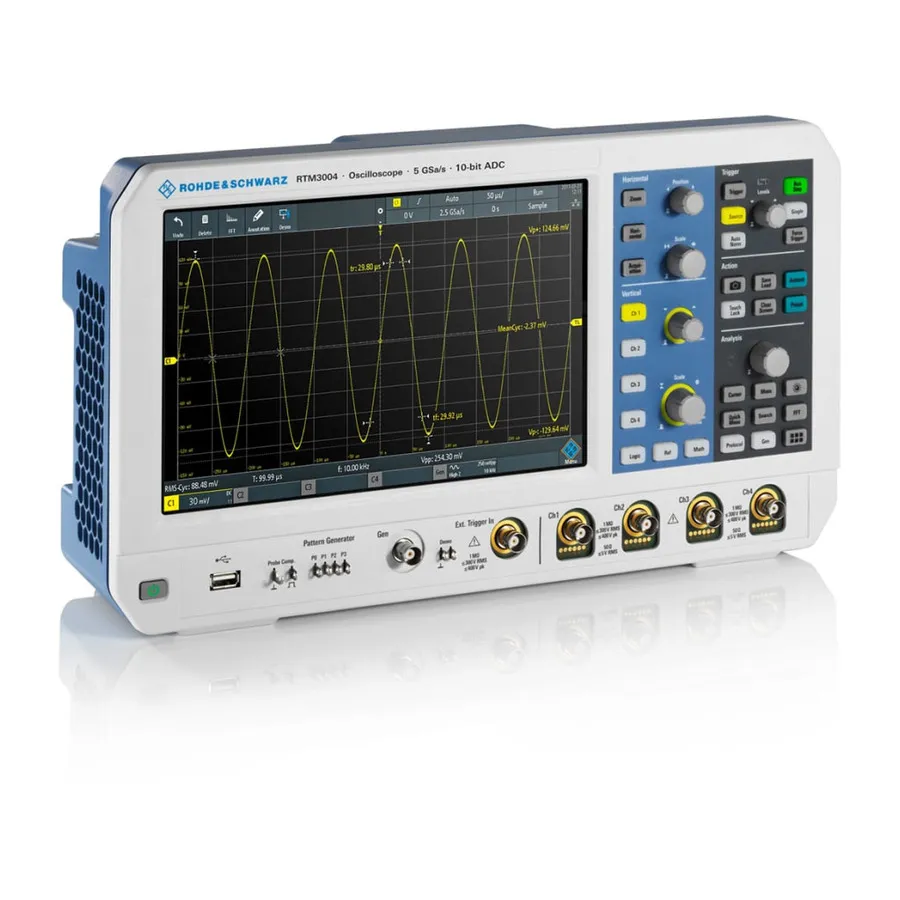

Rohde & Schwarz RTM3K-02M Digital Oscilloscope
Request a quote
Rohde & Schwarz RTM3K-02M: 2-channel 100MHz digital oscilloscope with integrated mixed signal option (RTM-B1).
Product details
| Model | RTM3K-02M |
| Manufacturer | Rohde & Schwarz |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The RTM3K-02M is a complete oscilloscope solution combining the Rohde & Schwarz RTM3002 digital oscilloscope with the RTM-B1 mixed signal option. The RTM3002 provides 2 analog measurement channels with 100 MHz bandwidth, while the RTM-B1 option adds 16 digital logic channels for comprehensive signal analysis.
Key Features
- 2-channel analog oscilloscope with 100 MHz bandwidth
- 16 digital channels via mixed signal option (RTM-B1)
- Simultaneous acquisition of analog and digital signals
- Color display for clear signal visualization
- Modular platform allowing future bandwidth upgrades
Applications
- Electronic circuit debugging and verification
- Mixed-signal system troubleshooting
- Service and field maintenance
- General laboratory measurements
Included Accessories
- RTM3002 Oscilloscope (2-channel, 100 MHz base unit)
- RTM-B1 Mixed Signal Option (16 digital logic channels)
Specifications
| Bandwidth | 100 MHz |
| Analog Channels | 2 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 5 GS/s |
| Memory | 80 Mpts |
| Type | MSO |
| Vertical Resolution | 10 bit |
| Display Type | 10.1 WXGA Capacitive Color Touch |
| Series | RTM3000 Series |
| Alternate Product Number | 1335.8794P03 |
