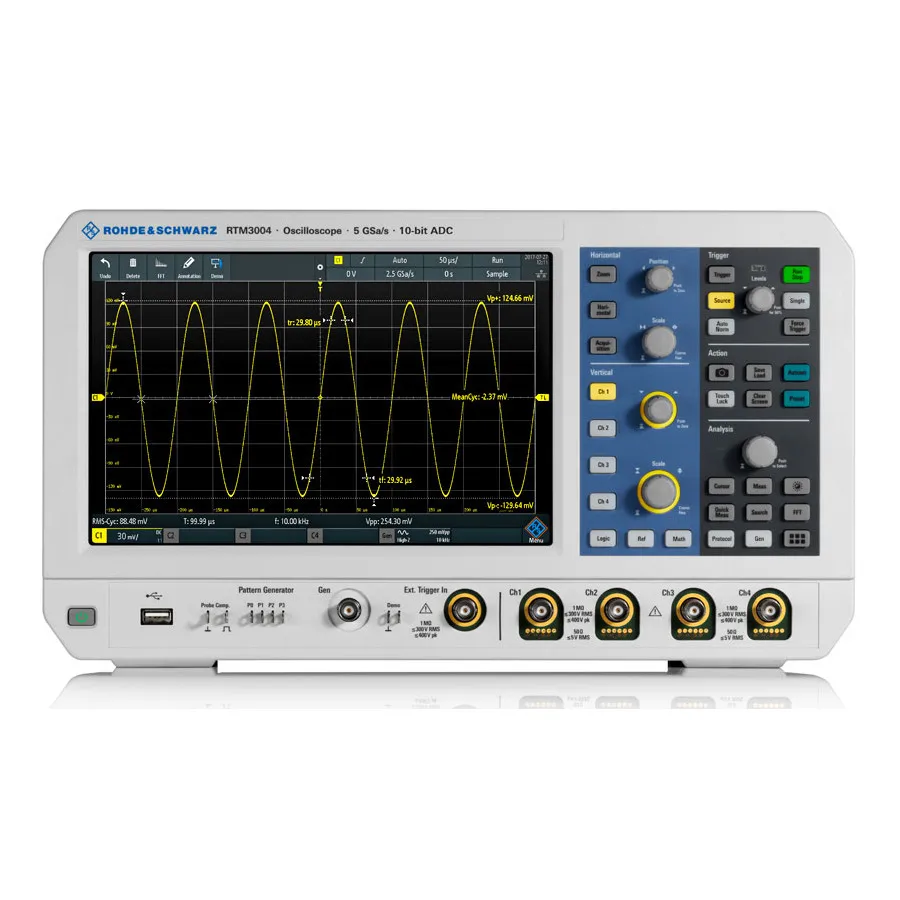

Rohde & Schwarz RTM3004 Digital Oscilloscope

Overview

The Rohde & Schwarz RTM3004 is a 4-channel digital oscilloscope in the RTM3000 Series, designed for comprehensive multi-signal analysis and debugging of complex electronic systems. It features a high-resolution 10-bit ADC, 5 GS/s sampling rate, large capacitive touchscreen display, and integrated analysis tools including logic analyzer, protocol analyzer, and waveform generator.

Key Features

• 4 analog channels with 10-bit ADC (4× better resolution than 8-bit)
• 100 MHz base bandwidth, upgradeable to 200, 350, 500 MHz, or 1 GHz
• 5 GS/s sampling rate (interleaved), 2.5 GS/s on all channels
• 40 Msample standard memory, 80 Msample interleaved, up to 400 Msample with option
• 10.1-inch capacitive touchscreen (1280 × 800) with gesture support
• Outstanding 500 μV/div sensitivity with full measurement bandwidth
• Integrated logic analyzer, protocol analyzer, and waveform generator
• 16 additional digital channels available with MSO option
• Three-year warranty

Applications

• Multi-channel system debugging and analysis
• Power supply and switched-mode power supply characterization
• Serial protocol debugging with multiple signal paths
• Complex signal integrity measurements
• Transient and long-duration data acquisition

Included Accessories

• Power cord
• One RT-ZP05S probe per analog channel
