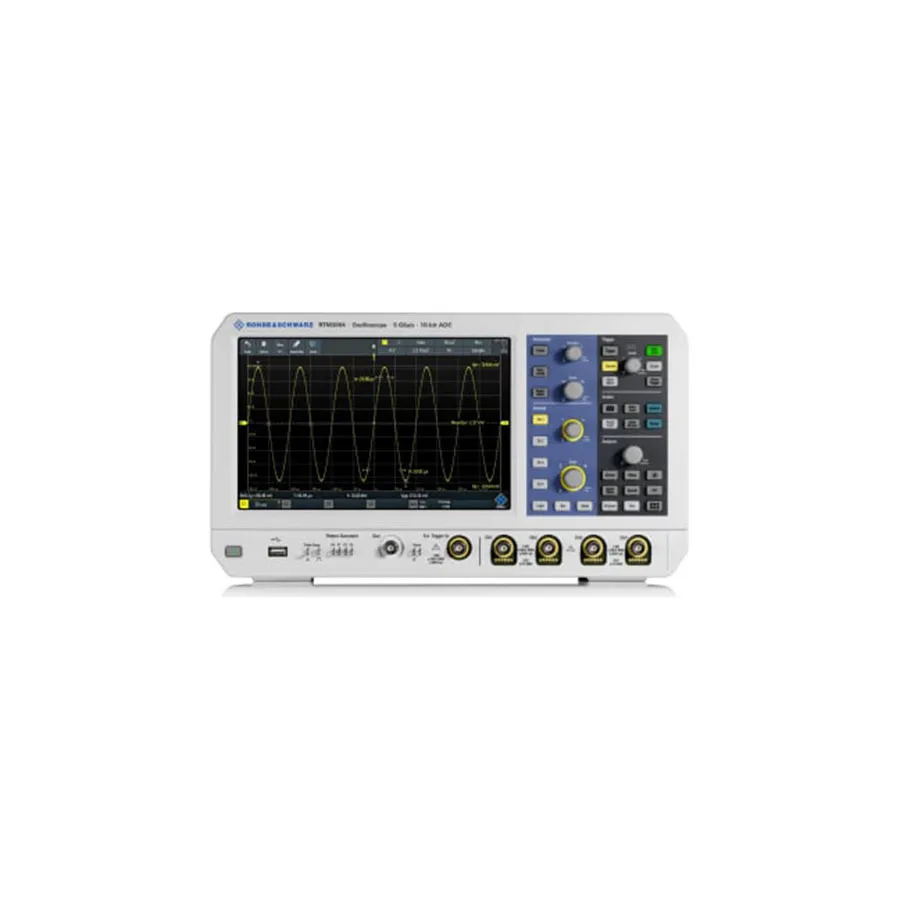

Rohde & Schwarz RTM-COM4US MSO Digital Oscilloscope
Request a quote
Rohde & Schwarz RTM-COM4US is a mixed-signal oscilloscope with 4 analog and 16 digital channels, 1 GHz bandwidth, and protocol decode options.
Product details
| Model | RTM-COM4US |
| Manufacturer | Rohde & Schwarz |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RTM-COM4US is a mixed-signal oscilloscope offering 4 analog and 16 digital channels. The instrument features bandwidth upgradeable from 100 MHz to 1 GHz, making it suitable for a wide range of signal analysis and embedded systems debugging applications. The RTM-PK1 bundle includes protocol triggering and decoding options for I2C, SPI, UART, RS232, CAN, and LIN buses.
Key Features
- 4 analog channels + 16 digital channels (MSO option)
- Bandwidth upgradeable: 100 MHz base, up to 1 GHz
- 10-bit ADC
- Maximum sampling rate: 5 GS/s interleaved, 2.5 GS/s all channels
- Memory depth: 40 Msample, 80 Msample interleaved, 400 Msample history mode
- 10.1-inch capacitive touchscreen, 1280 x 800 resolution
- Boot time: 10 seconds
- Connectivity: LAN, USB host/device, Ethernet display
- Three-year warranty
Applications
- Protocol analysis and debugging (I2C, SPI, UART, RS232, CAN, LIN)
- Mixed-signal design validation
- Embedded systems testing and troubleshooting
- Signal integrity analysis
Specifications
| Bandwidth | 1 GHz |
| Analog Channels | 4 |
| Sampling Rate | 5 GS/s |
| Memory | 80 Mpts |
| Type | MSO |
| Vertical Resolution | 10 bit |
| Display Type | 10.1 WXGA Capacitive Color Touch |
| Series | RTM3000 Series |
| Alternate Product Number | 1335.8794P98 |
| Series Compatibility | RTM Series |
