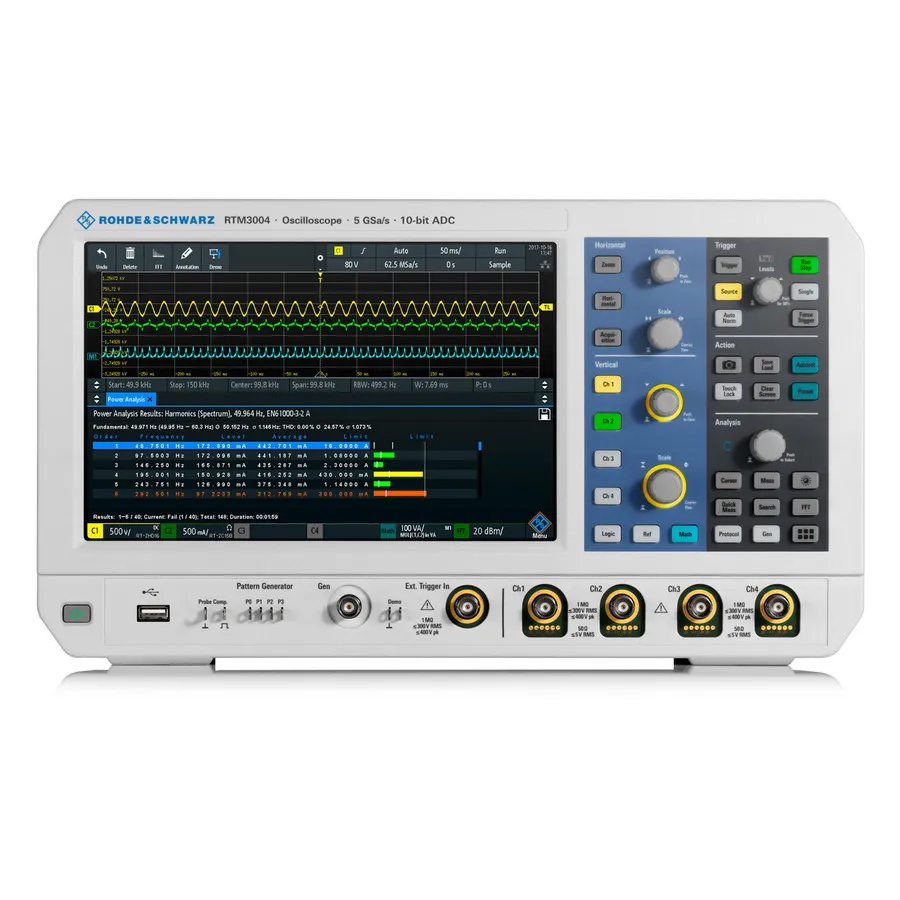

Rohde & Schwarz RTM-BNDL Digital Oscilloscope
Request a quote
Rohde & Schwarz RTM-BNDL is a 4-channel digital oscilloscope with 500 MHz bandwidth, 5 GS/s sampling, and protocol decode bundle.
Product details
| Model | RTM-BNDL |
| Manufacturer | Rohde & Schwarz |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RTM-BNDL is a comprehensive 4-channel digital oscilloscope package based on the RTM3004 model, equipped with 500 MHz bandwidth and protocol decode options. This bundle includes the RTM-B245 bandwidth option and the RTM-PK1 application bundle with multiple protocol trigger and decode capabilities.
Key Features
- 4-channel configuration with 10-bit ADC
- 500 MHz bandwidth with RTM-B245 option included
- Maximum sampling rate: 5 GS/s interleaved, 2.5 GS/s all channels
- Memory depth: 40 Msample, 80 Msample interleaved, 400 Msample history mode
- 10.1-inch capacitive touchscreen, 1280 x 800 resolution
- Boot time: 10 seconds
- Connectivity: LAN, USB host/device, Ethernet display
- Three-year warranty
Included Options & Applications
- RTM-B6 Arbitrary Waveform Generator
- RTM-K1 I2C/SPI Trigger and Decode
- RTM-K2 UART/RS232 Trigger and Decode
- RTM-K3 CAN/LIN Trigger and Decode
- Signal integrity analysis and protocol debugging
- Embedded systems development and testing
Specifications
| Bandwidth | 500 MHz |
| Analog Channels | 4 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 5 GS/s |
| Memory | 80 Mpts |
| Type | DSO |
| Vertical Resolution | 10 bit |
| Display Type | 10.1 WXGA Capacitive Color Touch |
| Series | RTM3000 Series |
| Alternate Product Number | 1335.8794P93 |
| Interface | I2C, SPI, UART, RS-232/422/485, I2S LJ/RJ/TDM, MIL-1553, ARINC 429, CAN, LIN |
| Series Compatibility | RTM Series |
