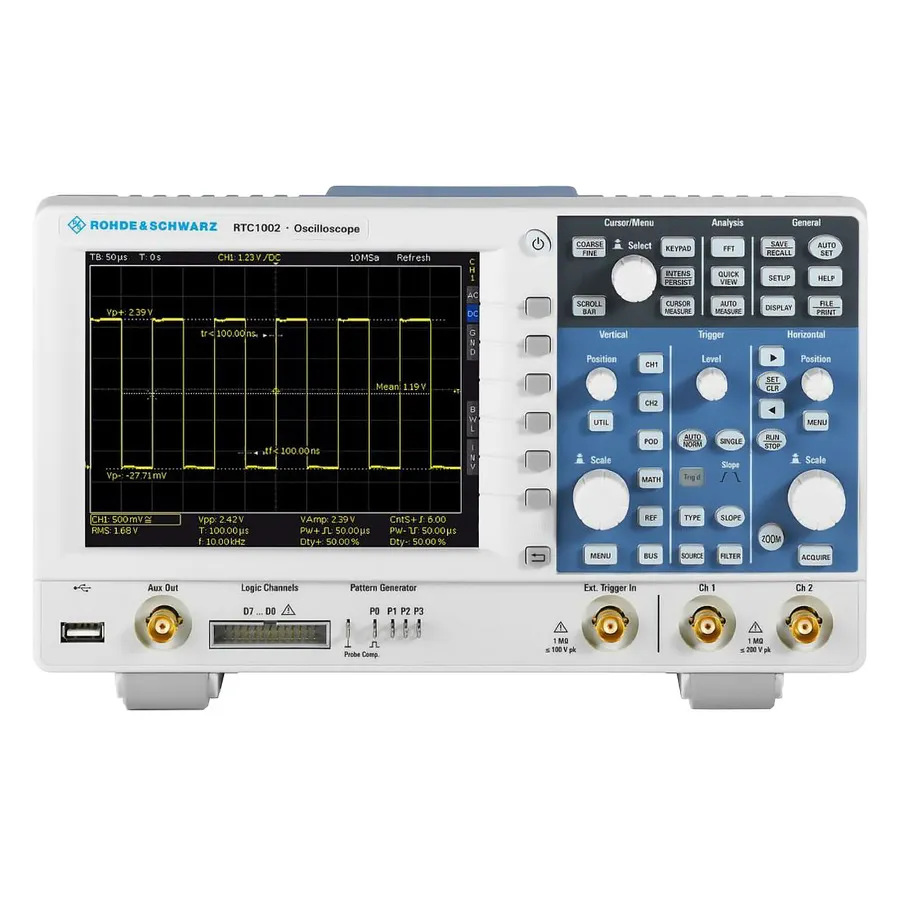

Rohde & Schwarz RTC1K-COM2 Mixed-Signal Oscilloscope

Overview

The Rohde & Schwarz RTC1K-COM2 is a multi-functional oscilloscope bundle designed for embedded developers, service technicians, and educators. This mixed-signal oscilloscope combines traditional oscilloscope functionality with logic analysis, protocol analysis, waveform generation, and frequency analysis in a single compact instrument, making it ideal for complex signal debugging and educational applications.

Key Features

• 300 MHz analog bandwidth
• 2 GS/s sampling rate per channel, up to 2.5 GS/s interleaved
• 2 analog channels plus 8 digital channels with MSO option
• 2 Megasample memory depth for extended waveform capture
• Integrated I2C/SPI, UART/RS232, and CAN/LIN triggering and decoding
• Waveform and pattern generator up to 50 Mbit/s
• Automatic measurements with statistics and QuickView feature
• Mask test mode for automated signal validation
• 6.5-inch VGA color display (640 x 480 pixels)
• Software license expansion for future feature upgrades

Applications

• Embedded systems debugging and development
• Serial protocol analysis (I2C, SPI, UART, CAN, LIN)
• Signal integrity and timing analysis
• Educational demonstrations and student training
• Component testing and frequency analysis
• Waveform generation for prototyping

Included Accessories

• RTC1002 2-channel oscilloscope
• RTC-B223 300 MHz bandwidth module
• RTC-B1 mixed-signal (MSO) module
• RTC-PK1 application bundle with protocol analysis modules
• Single-ended passive probes for each channel
• Power cord and documentation
